UMW

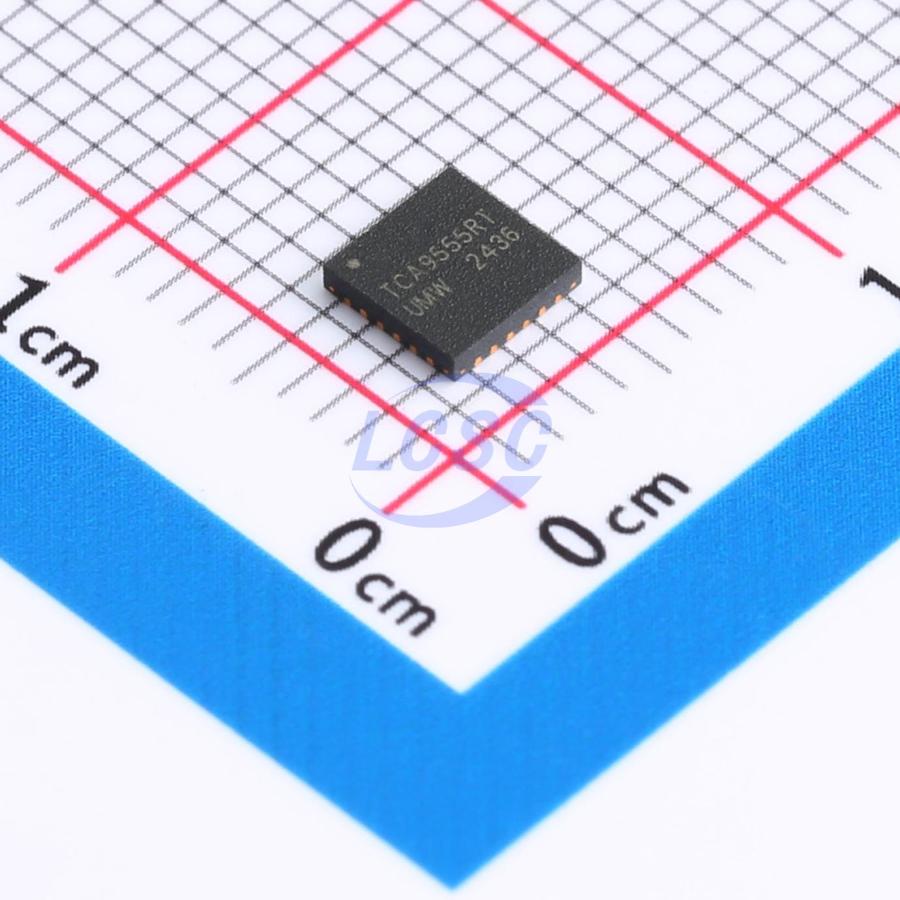

TCA9555RTWR(UMW)

16 VQFN-24-EP(4x4) I/O Expanders RoHS

VQFN-24-EP(4x4)ROHS CompliantActive

16-bit I2C-bus I/O Expander with Interrupt Output

Manufacturer: UMW
Manufacturer part #: TCA9555RTWR(UMW)
Store part #: C42420609
Package / case: VQFN-24-EP(4x4)
Category: I/O Expanders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12,784 in stock

#C42420609

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹66.20	₹66.20
10+	₹51.80	₹518.00
30+	₹45.56	₹1,366.80
100+	₹37.82	₹3,782.00
500+	₹34.38	₹17,190.00
1,000+	₹32.24	₹32,240.00

Quantity (min 1)

1 × ₹66.20

₹66.20

excl. GST

₹78.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

TCA9555RTWR(UMW)

₹66.20 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Interrupt Output: Interrupt Output
Operating Temperature: -40℃~+85℃
Number of I/O: 16
Features: Built-in LED driver;Cascade and address expansion
Voltage - Supply: 1.6V~5.5V
Quiescent Supply Current: 500nA
Number of Supporting Devices: 8
Current - Output High(IOH): 10mA
Interface: I2C;SMBus

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.146 g

Overview

The TCA9535 series provides general-purpose parallel input/output (GPIO) expansion. Port data is transmitted via the standard I²C protocol, supporting communication rates up to 1MHz (up to 2MHz with High-Speed mode enabled). The series features 16-bit totem-pole I/O ports (P07–P00, P17–P10) capable of directly driving LEDs. Each bit of the GPIO port can be individually configured as input or output. Upon power-up, the I/Os are configured as inputs.
