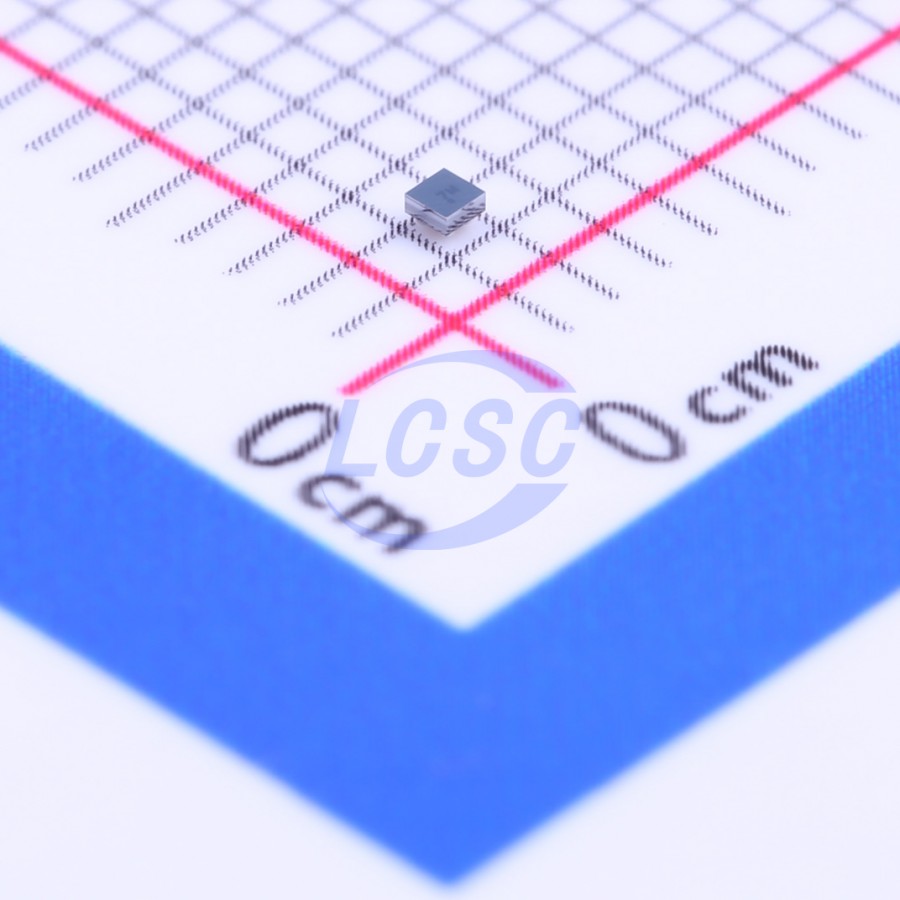

TCK107AG,LF
1 Active High 1A Load Switch WCSPD-4(0.8x0.8) Power Distribution Switches, Load Drivers RoHS
WCSPD-4(0.8x0.8)ROHS3 CompliantActive
1.0 A Load Switch IC with Slew Rate Control Driver in Ultra Small Package
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TCK107AG,LF
- Store part #
- C146305
- Package / case
- WCSPD-4(0.8x0.8)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,275 in stock
#C146305
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.54 | ₹157.70 |
| 50+ | ₹24.93 | ₹1,246.50 |
| 150+ | ₹22.08 | ₹3,312.00 |
| 500+ | ₹18.55 | ₹9,275.00 |
| 2,500+ | ₹16.96 | ₹42,400.00 |
| 5,000+ | ₹16.02 | ₹80,100.00 |
5 × ₹31.54
₹157.70
excl. GST
₹186.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TCK107AG,LF
₹157.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Output discharge function
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 1A
- RDS(on)
- 34mΩ
- Operating Voltage
- 1.1V~5.5V
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.128 g
Overview
The TCK106AG, TCK107AG and TCK108AG are load switch ICs for a general power management with slew rate control driver, featuring low ON resistance and wide input voltage operation from 1.1 to 5.5 V. ON resistance is only 34 mΩ typical at 5.0 V, -0.5 A condition and output current is available on 1.0 A. TCK107AG and TCK108AG feature output auto-discharge function. These devices are available in 0.4 mm pitch ultra small package WCSP4D (0.79 mm×0.79 mm, t: 0.55 mm). Thus this devices is ideal for portable applications that require high-density board assembly such as cellular phone.
Key features
- Low ON resistance: RON = 34 mΩ (typ.) at VIN = 5.0 V, -0.5 A; RON = 42 mΩ (typ.) at VIN = 3.3 V, -0.5 A; RON = 71 mΩ (typ.) at VIN = 1.8 V, -0.5 A; RON = 139 mΩ (typ.) at VIN = 1.2 V, -0.2 A; RON = 176 mΩ (typ.) at VIN = 1.1 V, -0.2 A
- Low Quiescent current: |IQ| = 10 nA (typ.) at VIN = 5.5 V, 0 mA
- High output current: Iour = 1.0 A
- Wide input voltage operation: VIN = 1.1 to 5.5 V
- Built in Slew rate control driver
- Built in Auto-discharge (TCK107AG and TCK108AG)
- Active High and Pull down connection between CONTROL and GND (TCK106AG and TCK107AG); Active Low (TCK108AG)
- Ultra small package: WCSP4D (0.79 mm×0.79 mm, t: 0.55 mm)
Alternatives
Similar parts — check the datasheet before substituting.
