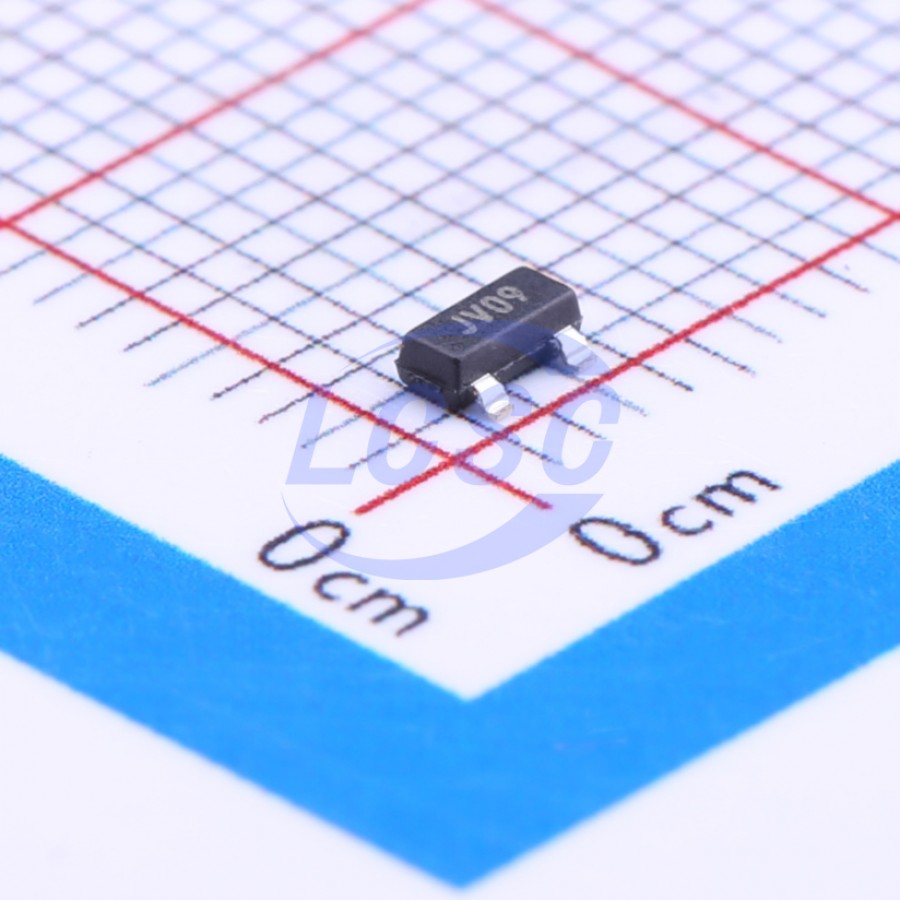

TCM809SVNB713
140ms Active Low 1V~5.5V 1 SOT-23 Supervisors RoHS
3-Pin Microcontroller Reset Monitors
- Manufacturer
- MICROCHIP
- Manufacturer part #
- TCM809SVNB713
- Store part #
- C171841
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,296 in stock
#C171841
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹95.18 | ₹95.18 |
| 10+ | ₹76.93 | ₹769.30 |
| 30+ | ₹67.80 | ₹2,034.00 |
| 100+ | ₹58.68 | ₹5,868.00 |
| 500+ | ₹53.25 | ₹26,625.00 |
| 1,000+ | ₹50.42 | ₹50,420.00 |
1 × ₹95.18
₹95.18
excl. GST
₹112.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TCM809SVNB713
₹95.18 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 140ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
The TCM809 and TCM810 are cost-effective system supervisor circuits designed to monitor VDD in digital systems; providing a reset signal to the host processor, when necessary. No external components are required. The RESET output is typically driven active within 65 μs of VDD falling through the reset voltage threshold. RESET is maintained active for a minimum of 140 msec after VDD rises above the reset threshold. The TCM810 has an active-high RESET output, while the TCM809 has an active-low RESET output. The output of the TCM809/TCM810 is valid down to VDD = 1 V. Both devices are available in 3-Pin SC-70 and SOT-23B packages. The TCM809/TCM810 are optimized to reject fast transient glitches on the VDD line. A low supply current of 9 μA (typ., VDD = 3.3 V) make these devices suitable for battery-powered applications.
Applications
- Computers
- Embedded Systems
- Battery-powered Equipment
- Critical Microcontroller Power Supply Monitoring
- Automotive
Key features
- Precision VDD Monitor for 2.5V, 3.0V, 3.3V, 5.0V Nominal System Voltage Supplies
- 140 msec Minimum RESET Time-Out Period
- RESET Output to VDD = 1.0V (TCM809)
- Low Supply Current, 9 μA (typ.)
- VDD Transient Immunity
- Small 3-Pin SC-70 and SOT-23B Packages
- No External Components
- Push-Pull RESET Output
- Temperature Ranges:
- Industrial: SC-70 (E): - -40℃ to +85℃
- Extended: SOT-23, SC-70 (V): - -40℃ to +125℃
