TOSHIBADatasheet (PDF)

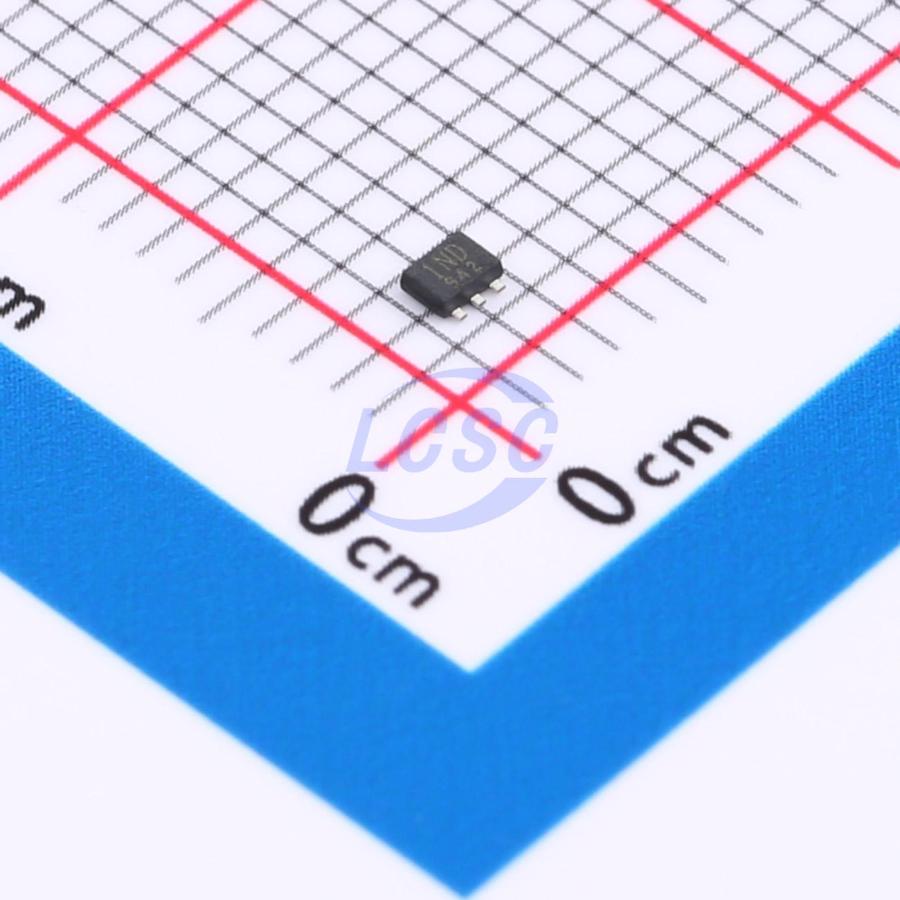

TCR2EE135,LM(CT
1.35V Positive Fixed SOT-553 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-553ROHS3 CompliantActive
200 mA CMOS Low Dropout Regulator with Fast Load Transient Response
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TCR2EE135,LM(CT
- Store part #
- C7399549
- Package / case
- SOT-553
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,895 in stock
#C7399549
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.69 | ₹78.45 |
| 50+ | ₹13.81 | ₹690.50 |
| 150+ | ₹13.01 | ₹1,951.50 |
| 500+ | ₹12.00 | ₹6,000.00 |
| 2,500+ | ₹11.56 | ₹28,900.00 |
| 4,000+ | ₹11.29 | ₹45,160.00 |
5 × ₹15.69
₹78.45
excl. GST
₹92.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TCR2EE135,LM(CT
₹78.45 for 5 + GST
Specifications
- Output Voltage
- 1.35V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 35uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 200mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Output discharge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
The TCR2EF and TCR2EE series are CMOS single output voltage regulators with an on/off control input, featuring low dropout voltage, low output noise voltage and fast load transient response. These voltage regulators are available in fixed output voltages between 1.0 V and 5.0 V and capable of driving up to 200 mA. They feature overcurrent protection, an Auto-discharge function. The TCR2EF and TCR2EE series has a low dropout voltage of 180 mV (2.5 V output, Iout = 150 mA) with low output noise voltage of 35 μVrms (2.5 V output) and a load transient response of only ΔVout = ±60 mV (Iout = 1 mA ⇔ 150 mA, Cout = 1.0 μF). Thus, the TCR2EF and TCR2EE series are suitable for sensitive power supply such as Analog and RF applications.
Key features
- Low dropout voltage: VDO = 150 mV (typ.) at 3.0 V output, Iout = 150 mA (SMV (SOT - 25)(SC - 74A)); VDO = 180 mV (typ.) at 2.5 V output, Iout = 150 mA (ESV (SOT - 553)); VDO = 230 mV (typ.) at 1.8 V output, Iout = 150 mA; VDO = 380 mV (typ.) at 1.2 V output, Iout = 150 mA; VDO = 510 mV (typ.) at 1.0 V output, Iout = 150 mA
- Low output noise voltage (VNO = 35 μVrms (typ.) at 2.5 V output, Iout = 10 mA, 10 Hz < f < 100 kHz)
- Fast load transient response (ΔVout = ±60 mV (typ.) at Iout = 1 mA ⇔ 150 mA, Cout = 1.0 μF)
- Low quiescent bias current (IB = 35 μA (typ.) at Iout = 0 mA)
- High ripple rejection ratio (73 dB (typ.) at 2.5 V output, Iout = 10 mA, f = 1 kHz)
- Wide range output voltage line up (Vout = 1.0 to 5.0 V)
- High Vout accuracy ±1.0% (1.8 V ≤ Vout)
- Overcurrent protection
- Auto - discharge Pull down connection between CONTROL and GND
- Ceramic capacitors can be used (Cin = 0.1 μF, Cout = 1.0 μF)
- Small package ESV (SOT - 553) (1.6 mm × 1.6 mm × 0.55 mm)
- General package SMV (SOT - 25) (2.8 mm × 2.9 mm × 1.1 mm)
