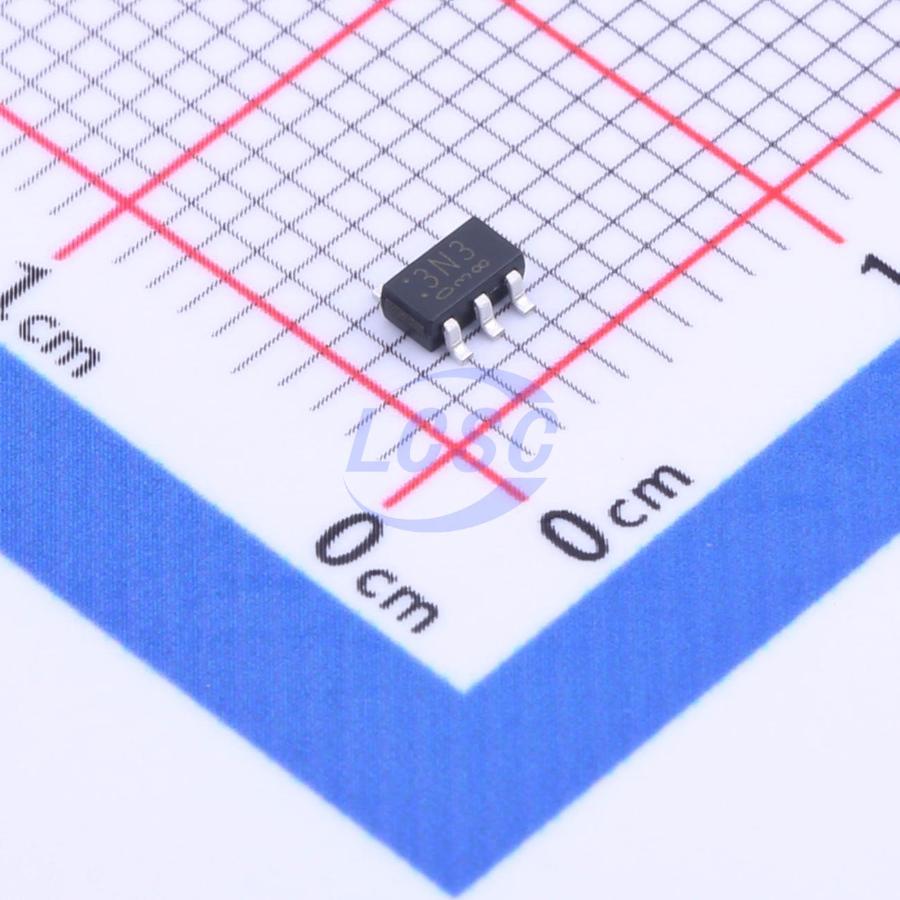

TCR2EF33,LM(CT

The TCR2EF and TCR2EE series are CMOS single output voltage regulators with an on/off control input, featuring low dropout voltage, low output noise voltage and fast load transient response. These voltage regulators are available in fixed output voltages between 1.0 V and 5.0 V and capable of driving up to 200 mA. They feature overcurrent protection, an Auto-discharge function. The TCR2EF and TCR2EE series has a low dropout voltage of 180 mV (2.5 V output, Iout = 150 mA) with low output noise voltage of 35 μVrms (2.5 V output) and a load transient response of only ΔVout = ±60 mV (Iout = 1 mA ⇔ 150 mA, Cout = 1.0 μF). Thus, the TCR2EF and TCR2EE series are suitable for sensitive power supply such as Analog and RF applications.

Applications

• Analog and RF applications

Key features

• Low dropout voltage: VDO = 150 mV (typ.) at 3.0 V output, Iout = 150 mA (SMV (SOT - 25)(SC - 74A)); VDO = 180 mV (typ.) at 2.5 V output, Iout = 150 mA (ESV (SOT - 553)); VDO = 230 mV (typ.) at 1.8 V output, Iout = 150 mA; VDO = 380 mV (typ.) at 1.2 V output, Iout = 150 mA; VDO = 510 mV (typ.) at 1.0 V output, Iout = 150 mA
• Low output noise voltage (VNO = 35 μVrms (typ.) at 2.5 V output, Iout = 10 mA, 10 Hz < f < 100 kHz)
• Fast load transient response (ΔVout = ±60 mV (typ.) at Iout = 1 mA ⇔ 150 mA, Cout = 1.0 μF)
• Low quiescent bias current (IB = 35 μA (typ.) at Iout = 0 mA)
• High ripple rejection ratio (73 dB (typ.) at 2.5 V output, Iout = 10 mA, f = 1 kHz)
• Wide range output voltage line up (Vout = 1.0 to 5.0 V)
• High Vout accuracy ±1.0% (1.8 V ≤ Vout)
• Overcurrent protection
• Auto - discharge Pull down connection between CONTROL and GND
• Ceramic capacitors can be used (Cin = 0.1 μF, Cout = 1.0 μF)
• Small package ESV (SOT - 553) (1.6 mm × 1.6 mm × 0.55 mm)
• General package SMV (SOT - 25) (2.8 mm × 2.9 mm × 1.1 mm)
