TechcodeDatasheet (PDF)

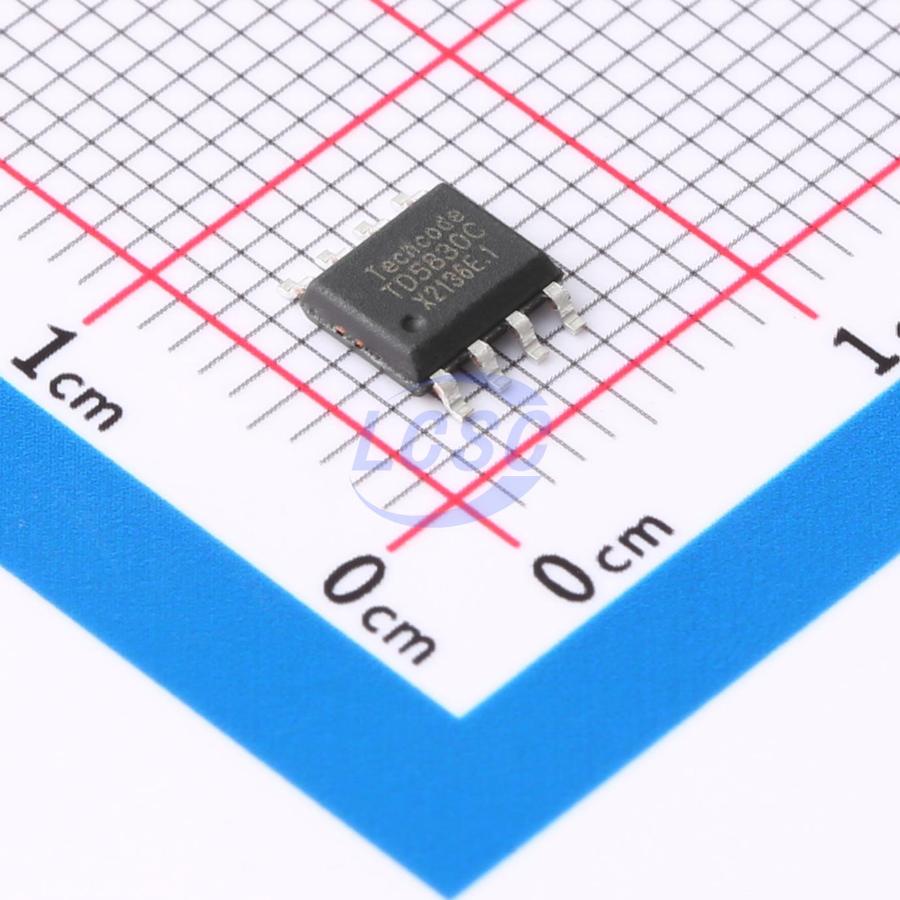

TD5830C
800mV~5.15V Positive Adjustable ESOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
ESOP-8ROHS CompliantActive
3A Low Dropout Regulator with Enable
- Manufacturer
- Techcode
- Manufacturer part #
- TD5830C
- Store part #
- C7545732
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,660 in stock
#C7545732
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.47 | ₹132.35 |
| 50+ | ₹21.00 | ₹1,050.00 |
| 150+ | ₹18.65 | ₹2,797.50 |
| 500+ | ₹15.73 | ₹7,865.00 |
| 2,500+ | ₹13.45 | ₹33,625.00 |
| 5,000+ | ₹12.66 | ₹63,300.00 |
5 × ₹26.47
₹132.35
excl. GST
₹156.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TD5830C
₹132.35 for 5 + GST
Specifications
- Output Voltage
- 800mV~5.15V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 600uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 3A
- Output Type
- Adjustable
- Features
- Enable control;Built-in soft-start;Operating status indication;Reset function;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.199 g
Overview
The TD5830C is a high-performance positive voltage regulator designed for use in applications requiring very low Input voltage and very low dropout voltage at up to 3 amps. It operates with a V_IN as low as 1.6V and VDD voltage 5V with output voltage programmable as low as 0.8V. The TD5830C features ultra low dropout, ideal for applications where V_0UT is very close to V_IN. Additionally, the TD5830C has an enable pin to further reduce power dissipation while shutdown. The TD5830C provides excellent regulation over variations in line, load and temperature. The TD5830C provides a power OK signal to indicate if the voltage level of VO reaches 92% of its rating value.
Applications
- Motherboards
- Peripheral Cards
- Network Cards
- Set Top Boxes
- Notebook Computers
Key features
- Adjustable Output Low to 0.8V
- Input Voltage as Low as 1.6V and VDD Voltage 5V
- 240mV Dropout @ 3A
- Over Current and Over Temperature Protection
- Enable Pin
- Low Reverse Leakage (Output to Input)
- Power SOP8 –PP Packages with Thermal Pad
- ±2% Output Voltage
- Vo Power OK Signal
- Externally Using Resistors
- Vo Pull Low Resistance when Disable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TD5830B#C2988066Techcode · ESOP-8 | Techcode | ESOP-8 | On request | Price on request | Quote |
