Techcode

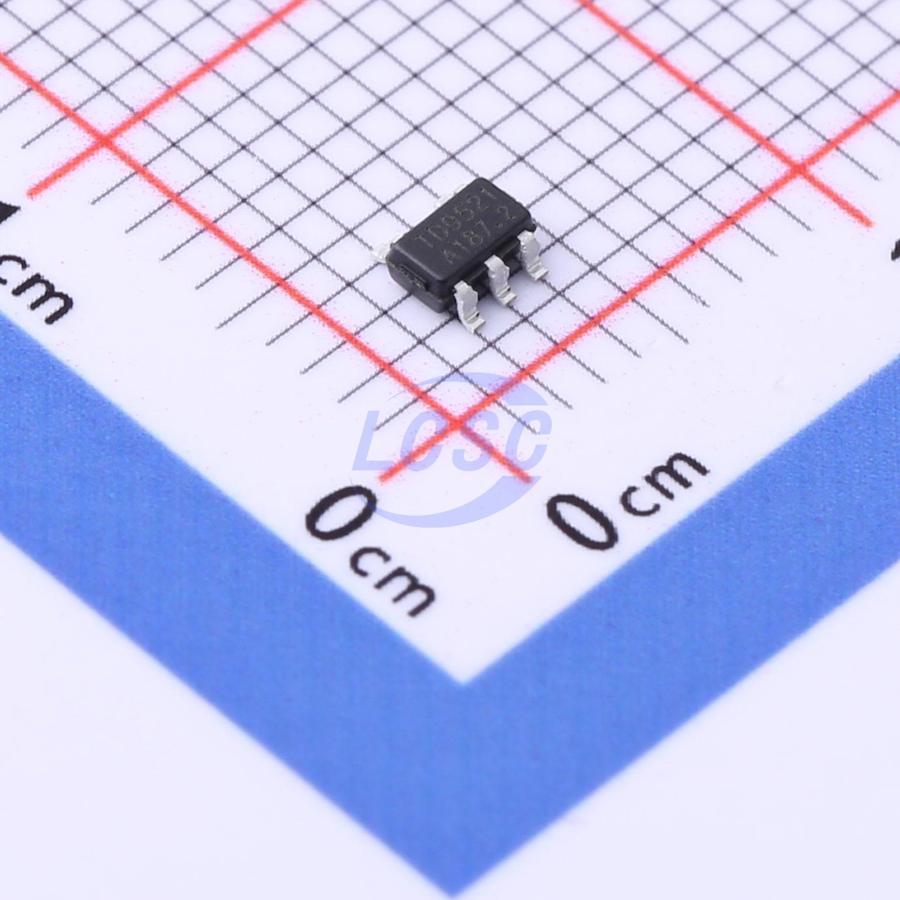

TD9521B

1 3A Active High High Side Switch SOT-23-5 Power Distribution Switches, Load Drivers

SOT-23-5RoHSActive

USB Power-Distribution Switches

Manufacturer: Techcode
Manufacturer part #: TD9521B
Store part #: C2935203
Package / case: SOT-23-5
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,165 in stock

#C2935203

Stock & price checked 30 h ago

Quantity	Unit price	Pack price
5+	₹39.47	₹197.35
50+	₹32.35	₹1,617.50
150+	₹29.29	₹4,393.50
500+	₹25.48	₹12,740.00
3,000+	₹23.79	₹71,370.00
6,000+	₹22.77	₹1,36,620.00

Quantity (min 5, multiples of 5)

5 × ₹39.47

₹197.35

excl. GST

₹232.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TD9521B

₹197.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Soft-start
number of channels: 1
Maximum Continuous Current: 3A
Control Input Logic: Active High
Operating Voltage: 3.5V~5.5V
RDS(on): 35mΩ
Type: High Side Switch

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.051 g

Overview

TD9521 power switches are designed for USB applications. The 35mΩ N-channel MOSFET power switch satisfies the voltage drop requirements of USB specification.
