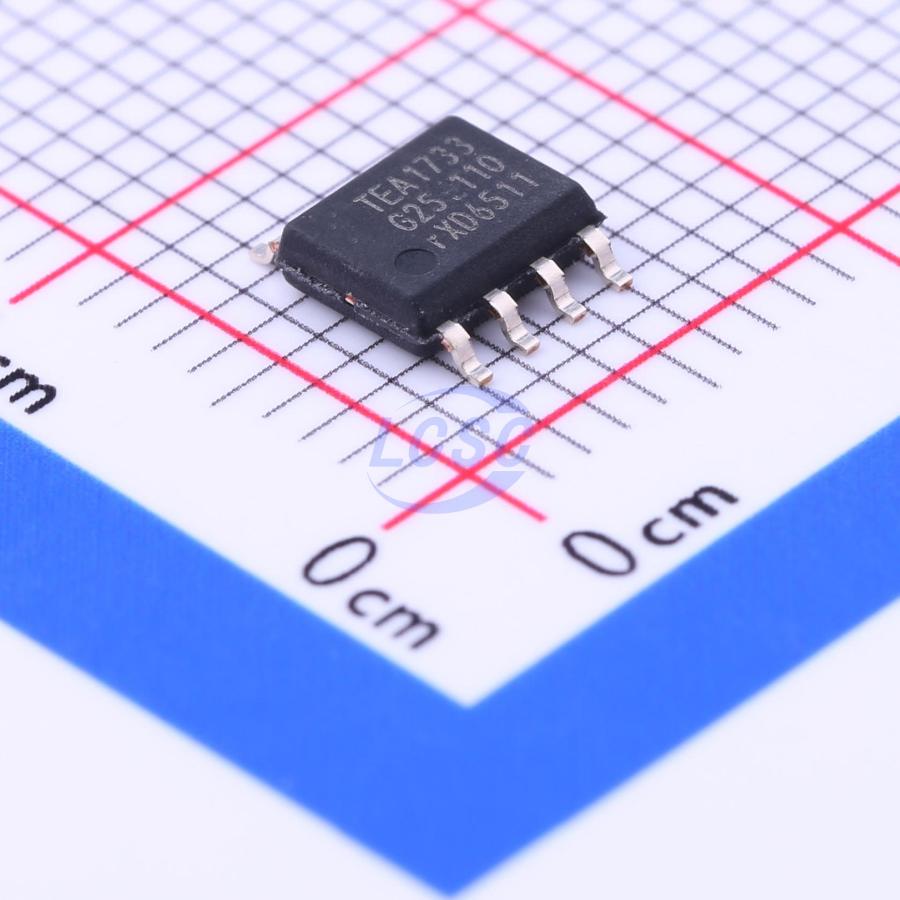

NXP

TEA1733T/N1,118

66.5kHz 0.5W 12.2V~30V Flyback SOIC-8 AC DC Converters, Offline Switchers RoHS

SOIC-8ROHS3 CompliantActive

GreenChip SMPS control IC

Manufacturer: NXP
Manufacturer part #: TEA1733T/N1,118
Store part #: C42329
Package / case: SOIC-8
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

235 in stock

#C42329

Stock & price checked 45 h ago

Quantity	Unit price	Pack price
1+	₹83.93	₹83.93
10+	₹66.97	₹669.70
30+	₹58.28	₹1,748.40
100+	₹49.80	₹4,980.00
500+	₹44.80	₹22,400.00
1,000+	₹42.19	₹42,190.00

Quantity (min 1)

1 × ₹83.93

₹83.93

excl. GST

₹99.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TEA1733T/N1,118

₹83.93 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃
Frequency - Switching: 66.5kHz
Pd - Power Dissipation: 0.5W
Voltage - Supply: 12.2V~30V
Features: Soft-start;Over Voltage Protection;Under Voltage Protection;Overtemperature protection (OTP);Over Current Protection
Topology: Flyback
Duty Cycle(Max): 72%
Feedback System: Secondary-Side Feedback
Working Mode: CCM

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.193 g

Overview

The TEA1733CT is a low cost Switched Mode Power Supply (SMPS) controller IC intended for flyback topologies. It operates in fixed frequency mode. To reduce ElectroMagnetic Interference (EMI), frequency jitter has been implemented. Slope compensation is integrated for Continuous Conduction Mode (CCM) operation. The TEA1733CT includes OverPower Protection (OPP). This enables the controller to operate under overpower situations for a limited amount of time. Two pins, VINSENSE and PROTECT, are reserved for protection purposes. Input UnderVoltage Protection (UVP) and OverVoltage Protection (OVP), output OVP and OverTemperature Protection (OTP) can be implemented using a minimal number of external components. At low power levels the primary peak current is set to 25 % of the maximum peak current and the switching frequency is reduced to limit switching losses. The combination of fixed frequency operation at high output power and frequency reduction at low output power provides high-efficiency over the total load range. The TEA1733CT enables low cost, highly efficient and reliable supplies for power requirements up to 75 W to be designed easily and with a minimum number of external components.

Applications

All applications requiring efficient and cost-effective power supply solutions up to 75 W.

Key features

SMPS controller IC enabling low-cost applications
Large input voltage range (12 V to 30 V)
Very low supply current during start-up and restart (typically 10 μA)
Low supply current during normal operation (typically 0.5 mA without load)
Overpower or high/low line compensation
Adjustable overpower time-out
Adjustable overpower restart timer
Fixed switching frequency with frequency jitter to reduce EMI
Frequency reduction with fixed minimum peak current to maintain high-efficiency at low output power levels
Slope compensation for CCM operation
Low and adjustable OverCurrent Protection (OCP) trip level
Adjustable soft start operation
Two protection inputs (for example: for input UVP and OVP, OTP and output OVP)
IC overtemperature protection
