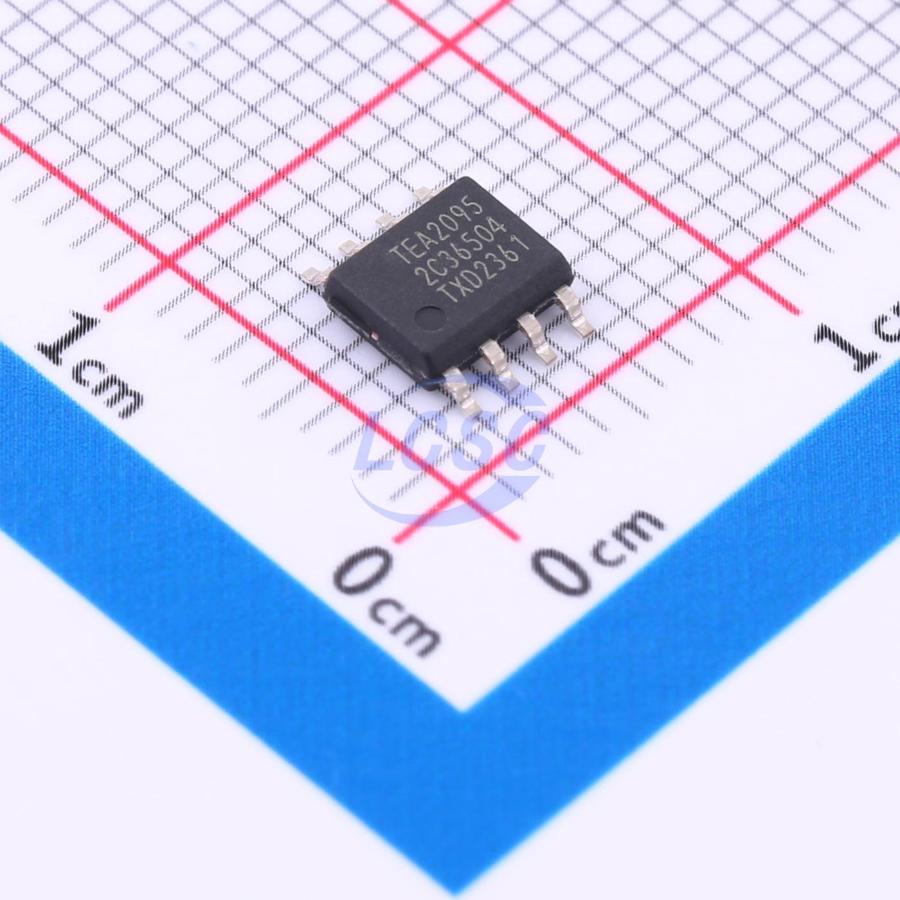

TEA2095T/1J

TEA2095TE is a next-generation synchronous rectifier (SR) controller IC for switched-mode power supplies. It employs an adaptive gate driver approach to achieve maximum efficiency under any load condition. TEA2095TE is a control IC specifically designed for secondary-side rectification in resonant power supplies. It features two drivers capable of simultaneously driving two SR MOSFETs, enabling rectification of the voltage tapped from the secondary winding of a transformer. The two drivers have their own dedicated monitoring and control circuitry and can operate independently. TEA2095TE is optimized for efficiency, allowing operation with ultra-low impedance MOSFETs at high frequencies. TEA2095TE is manufactured using Silicon-on-Insulator (SOI) technology.

Applications

• Adapters
• Desktop and all-in-one PC power supplies
• TV power supplies
• Server power supplies

Key features

• Adaptive gate drive adjustment under any load for maximum efficiency
• Supply current of 90 μA in energy-saving operating mode
• Detection voltage of -0.25 mV for driving low-impedance MOSFETs
• Wide supply voltage range: 4.5 V to 38 V
• Two synchronous rectification controllers for LLC resonant converters
• 5 V operation support, enabling logic-level synchronous rectification MOSFET selection
• Differential input sensing per synchronous rectification MOSFET, including drain and source voltages
• HSO8 package with exposed thermal pad
• Output capacitor discharge after power-off
• No minimum on-time for synchronous control
• Adaptive fast turn-off gate drive at end of conduction
• UVLO protection with active gate pull-down shutdown
• Interlock function to prevent simultaneous turn-on of external MOSFETs
• Switching frequency support up to 1 MHz
