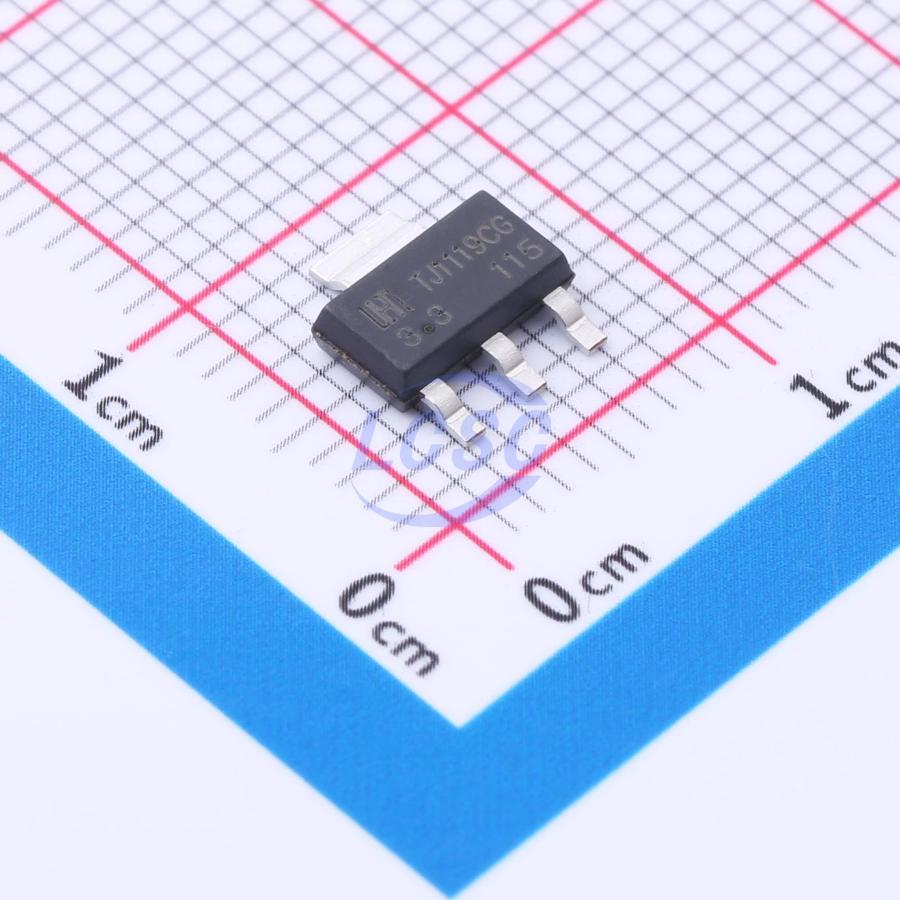

TJ1119CGS-3.3
3.3V Positive Fixed SOT-223-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-3LROHS CompliantActive
1A Ultra Low Dropout Linear Regulator
- Manufacturer
- HTC
- Manufacturer part #
- TJ1119CGS-3.3
- Store part #
- C2902321
- Package / case
- SOT-223-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,955 in stock
#C2902321
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.77 | ₹178.85 |
| 50+ | ₹27.80 | ₹1,390.00 |
| 150+ | ₹24.38 | ₹3,657.00 |
| 500+ | ₹20.12 | ₹10,060.00 |
| 2,500+ | ₹18.23 | ₹45,575.00 |
| 5,000+ | ₹17.09 | ₹85,450.00 |
5 × ₹35.77
₹178.85
excl. GST
₹211.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TJ1119CGS-3.3
₹178.85 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.273 g
Overview
The TJ1119 series of high performance ultra low-dropout linear regulators operates from 2.5V to 5.5V input supply and provides ultra low-dropout voltage, high output current with low ground current. Wide range of preset output voltage options are available. These ultra low dropout linear regulators respond fast to step changes in load which makes them suitable for low voltage micro-processor applications. The TJ1119 is developed on a CMOS process technology which allows low quiescent current operation independent of output load current. This CMOS process also allows the TJ1119 to operate under extremely low dropout conditions.
Applications
- Battery Powered Equipment
- Motherboards and Graphic Cards
- Microprocessor Power Supplies
- Peripheral Cards
- High Efficiency Linear Regulators
- Battery Chargers
Key features
- Ultra Low Dropout Voltage
- Low Ground Pin Current
- Excellent Line and Load Regulation
- Available in SOT-223-3L, TO-252-3L Packages
- Fixed Output Voltages: 1.0V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V and 3.3V
- Over-Temperature/Over-Current Protection
- -40°C to 125°C Junction Temperature Range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM3940IMP-3.3/NOPB#C140319TI · SOT-223 | TI | SOT-223 | 962 | ₹234.36 · 962 in stock | View |
 | TLV1117LV33DCYR#C15578TI · SOT-223 | TI | SOT-223 | 8,515 | ₹51.93 · 8,515 in stock | View |
 | MIC37100-3.3WS#C144349MICROCHIP · SOT-223 | MICROCHIP | SOT-223 | 47 | ₹518.54 · 47 in stock | View |
 | MCP1826S-3302E/DB#C638624MICROCHIP · SOT-223-3 | MICROCHIP | SOT-223-3 | 2,195 | ₹239.93 · 2,195 in stock | View |
 | LM3940IMPX-3.3/NOPB#C544820TI · SOT-223-4 | TI | SOT-223-4 | 3,392 | ₹198.60 · 3,392 in stock | View |
