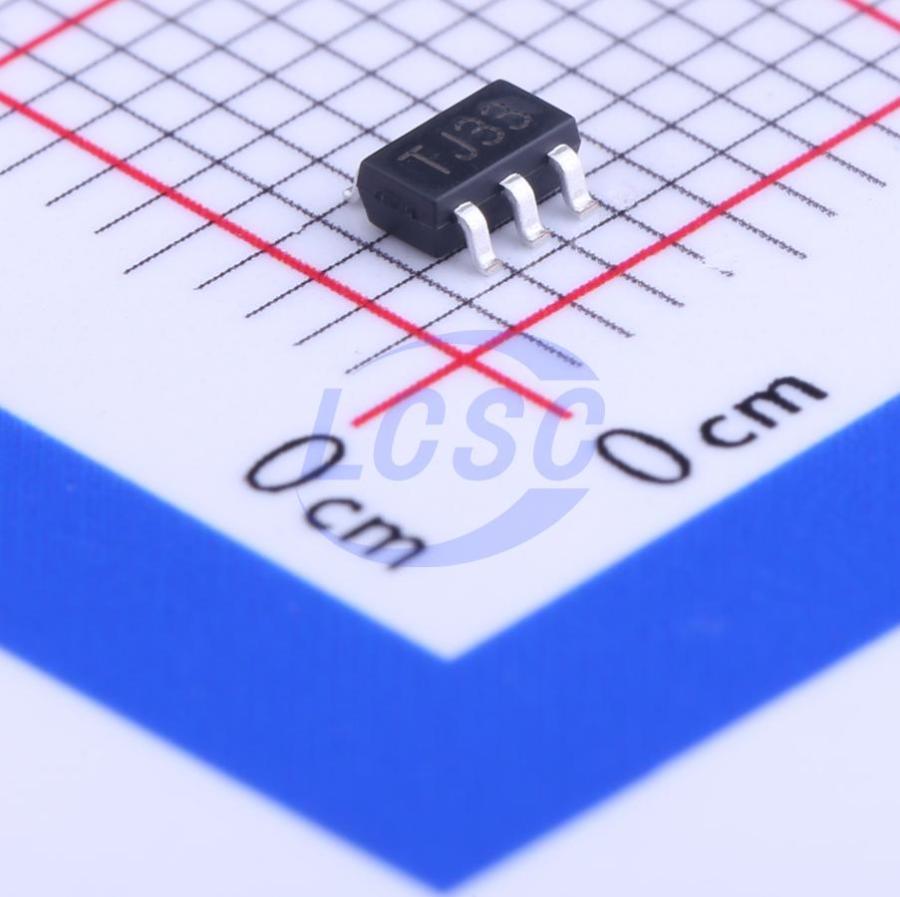

TJ5205SF5-3.3

The TJ5205 is an efficient linear voltage regulator with ultra low-noise output, very low dropout voltage (typically 17mV at light loads and 165mV at 150mA), and very low ground current (600μA at 100mA output). The TJ5205 offers better than 1% initial accuracy. Designed especially for hand-held, battery-powered devices, the TJ5205 includes a CMOS or TTL compatible enable/shutdown control input. When shutdown, power consumption drops nearly to zero. Regulator ground current increases only slightly in dropout, further prolonging battery life. Key TJ5205 features include a reference bypass pin to improve its already excellent low-noise performance, reversed-battery protection, current limiting, and over temperature shutdown. The TJ5205 is available in fixed and adjustable output voltage versions in SOT-23-5 PKG and SOP-8PP PKG. And adjustable type’s maximum output voltage is 8.5V.

Applications

• Cellular Telephones
• Laptop, Notebook, and Palmtop Computers
• Battery-powered Equipment
• PCMCIA VCC and VPP Regulation/Switching
• Consumer/Personal Electronics
• SMPS Post-regulator/DC to DC Modules
• High-efficiency Linear Power Supplies

Key features

• Ultra Low Noise Output
• High Output Voltage Accuracy
• Guaranteed 150mA Output
• Maximum Output Voltage of Adjustable type is 8.5V
• Low Quiescent Current
• Low Dropout Voltage
• Extremely Tight Load and Line Regulation
• Very Low Temperature Coefficient
• Current and Thermal Limiting
• Reverse-battery Protection
• “Zero” off-mode Current
• Logic-controlled Enable
• Moisture Sensitivity Level 3
