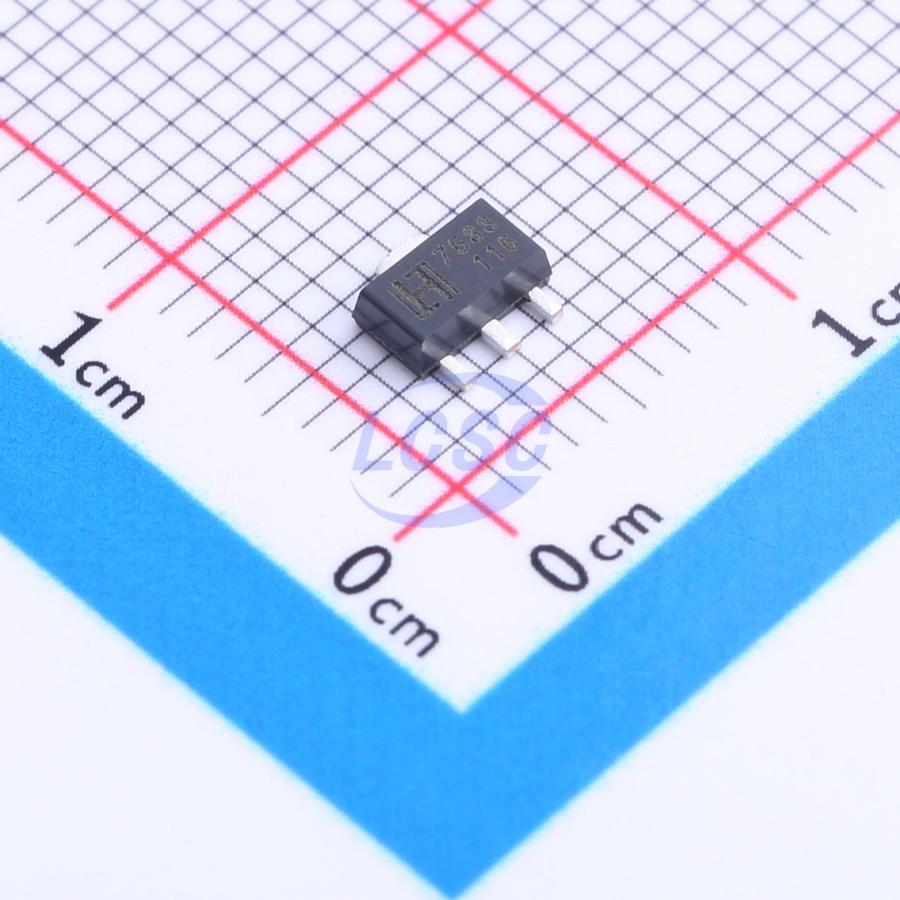

TJ7533GF
3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS CompliantActive
250mA CMOS Low Dropout Regulator
- Manufacturer
- HTC
- Manufacturer part #
- TJ7533GF
- Store part #
- C2847001
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,145 in stock
#C2847001
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.25 | ₹146.25 |
| 50+ | ₹22.69 | ₹1,134.50 |
| 150+ | ₹19.87 | ₹2,980.50 |
| 1,000+ | ₹16.35 | ₹16,350.00 |
| 2,000+ | ₹14.79 | ₹29,580.00 |
| 5,000+ | ₹13.85 | ₹69,250.00 |
5 × ₹29.25
₹146.25
excl. GST
₹172.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
TJ7533GF
₹146.25 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 20V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.191 g
Overview
The TJ75XXG series are family of CMOS low dropout Regulator with high input voltage VIN_MAX = 20V. The load current is up to 250mA. The quiescent current (typical) is only 1uA. The TJ75XXG series can operate with low cost ceramic capacitor, 2.2uF MLCC capacitors.
Applications
- Battery-Powered Equipment
- Battery Powered Alarm Circuits
- Portable Cameras and Video Recorders
- Microcontroller Power
- PDAs
- Reference Voltage Sources
- Consumer Products
Key features
- Input Operating Voltage Range: 2.7V to 20V
- 1uA Typical Quiescent Current
- 2% Output Voltage Accuracy
- Stable with 2.2uF MLCC
- Output Current is 250mA
- Short Circuit Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7333-3#C84207HOLTEK · SOT-89-3 | HOLTEK | SOT-89-3 | 1,130 | ₹33.46 · 1,130 in stock | View |
 | BL9153-33CC3TR#C976195BL · SOT-89-3L | BL | SOT-89-3L | On request | Price on request | Quote |
 | MG7333N3#C54279901Megain · SOT-89-3 | Megain | SOT-89-3 | 1,180 | ₹4.95 · 1,180 in stock | View |
 | HT7333-3-MS#C30197514MSKSEMI · SOT-89-3 | MSKSEMI | SOT-89-3 | 560 | ₹24.65 · 560 in stock | View |
 | DS8242-33A3#C5884129DSTECH · SOT-89-3 | DSTECH | SOT-89-3 | 1,590 | ₹5.98 · 1,590 in stock | View |
