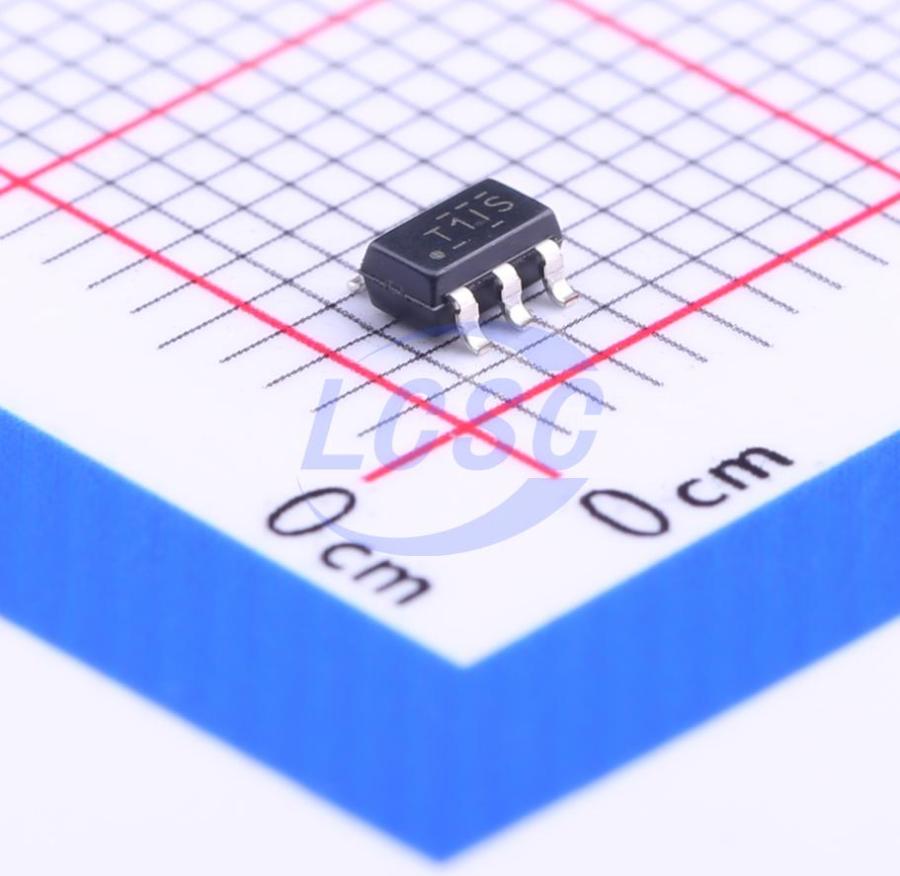

TL331IDBVR
1 400uA 2mV Rail-to-rail input SOT-23-5 Comparators RoHS
Single Differential Comparator
- Manufacturer
- TI
- Manufacturer part #
- TL331IDBVR
- Store part #
- C80942
- Package / case
- SOT-23-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,29,655 in stock
#C80942
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.85 | ₹79.25 |
| 50+ | ₹12.49 | ₹624.50 |
| 150+ | ₹10.76 | ₹1,614.00 |
| 500+ | ₹9.33 | ₹4,665.00 |
| 3,000+ | ₹8.84 | ₹26,520.00 |
| 6,000+ | ₹8.49 | ₹50,940.00 |
5 × ₹15.85
₹79.25
excl. GST
₹93.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL331IDBVR
₹79.25 for 5 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL;CMOS;MOS
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 25nA
- Output Type
- Open-drain
- Propagation Delay(tpd)
- 1.3us
- Quiescent Current(Iq)
- 400uA
- Vos - Input Offset Voltage
- 2mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Rail to Rail
- Rail-to-rail input
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
This device consists of a single voltage comparator that is designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible if the difference between the two supplies is 2V to 36V and VCC is at least 1.5V more positive than the input common - mode voltage. Current drain is independent of the supply voltage. The output can be connected to other open - collector outputs to achieve wired - AND relationships.
Applications
- Hysteresis Comparators
- Oscillators
- Window Comparators
- Industrial Equipment Test and Measurement
Key features
- Single Supply or Dual Supplies
- Wide Range of Supply Voltage, 2 V to 36 V
- Low Supply - Current Drain Independent of Supply Voltage, 0.4 mA Typ
- Low Input Bias Current, 25 nA Typ
- Low Input Offset Voltage, 2 mV Typ
- Common - Mode Input Voltage Range Includes Ground
- Differential Input Voltage Range Equal to Maximum - Rated Supply Voltage, ±36 V
- Low Output Saturation Voltage
- Output Compatible With TTL, MOS, and CMOS
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT8051BRTZ#C2917536HTCSEMI · SOT-23-5 | HTCSEMI | SOT-23-5 | 2,235 | ₹43.62 · 2,235 in stock | View |
 | LM331CXF#C5346830RUNIC · SOT23-5 | RUNIC | SOT23-5 | 5,055 | ₹14.92 · 5,055 in stock | View |
 | TL331KDBVR#C473337TI · SOT-23-5 | TI | SOT-23-5 | 19,900 | ₹28.42 · 19,900 in stock | View |
 | TL331QDBVRQ1#C73874TI · SOT-23-5 | TI | SOT-23-5 | 3,629 | ₹73.02 · 3,629 in stock | View |
