HTCSEMIDatasheet (PDF)

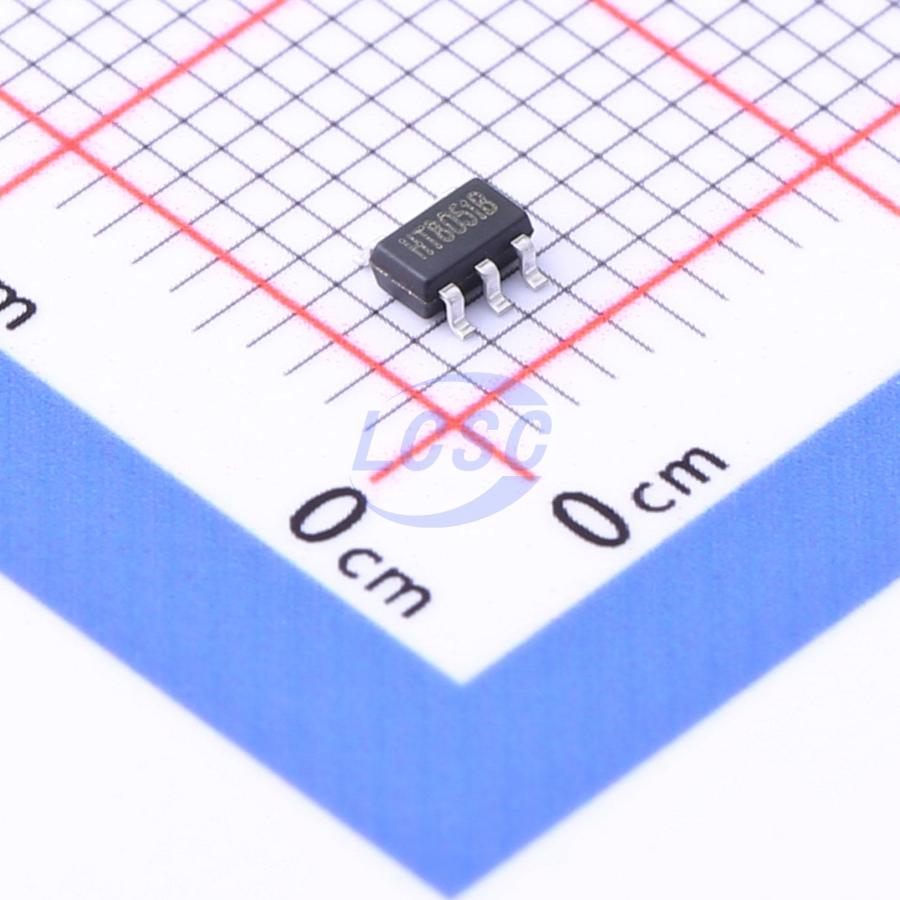

HT8051BRTZ
Rail-to-rail output 150uV 1 SOT-23-5 Linear Comparators
SOT-23-5RoHSActive
High speed rail to rail output comparator
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT8051BRTZ
- Store part #
- C2917536
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,230 in stock
#C2917536
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.62 | ₹218.10 |
| 50+ | ₹34.31 | ₹1,715.50 |
| 150+ | ₹30.32 | ₹4,548.00 |
| 500+ | ₹25.35 | ₹12,675.00 |
| 3,000+ | ₹23.13 | ₹69,390.00 |
| 6,000+ | ₹21.80 | ₹1,30,800.00 |
5 × ₹43.62
₹218.10
excl. GST
₹257.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT8051BRTZ
₹218.10 for 5 + GST
Specifications
- Rail to Rail
- Rail-to-rail output
- Quiescent Current
- 200uA
- Output Mode
- CMOS;TTL
- Propagation Delay Time
- 140ns
- Operating Temperature
- -40℃~+85℃
- Features
- Built-in hysteresis
- Input Hysteresis Voltage (Vhys)
- 5mV
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Vos - Input Offset Voltage
- 150uV
- Number of Channels
- 1
- Input Offset Voltage Drift(Vos TC)
- 1.96uV/℃
- Response Time (tr)
- 35ns
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
HT8051B is a high speed, low power dissipation comparator. It applies 140ns Propagation Delay at 100mV Overdrive voltage. HT8051B is DC coupled normally, and It includes internal hysteresis (5mV) to ensure clean output switch, the HYS voltage has a ultra-low temperature drift 5uV/°C. HT8051B consists of a high speed Class AB structure, which supports rail to rail output.
Applications
- High speed Line Receivers
- Threshold Detector /Discriminators
- Sampling Circuits
- IR Receivers
Key features
- 140ns propagation delay (@100mV Overdrive)
- Rail to Rail output, CMOS/TTL Compatible
- Internal Hysteresis to ensure clean switching
- DC coupled Input
- Offset voltage: +/-5mV Max.
- Low HYS voltage Temperature Drift: 5uV/℃
- 2.7~5.5V power supply Voltage
- Low quiescent current: 200uA
- Chip available in SOT23-5 Package
