AnBonDatasheet (PDF)

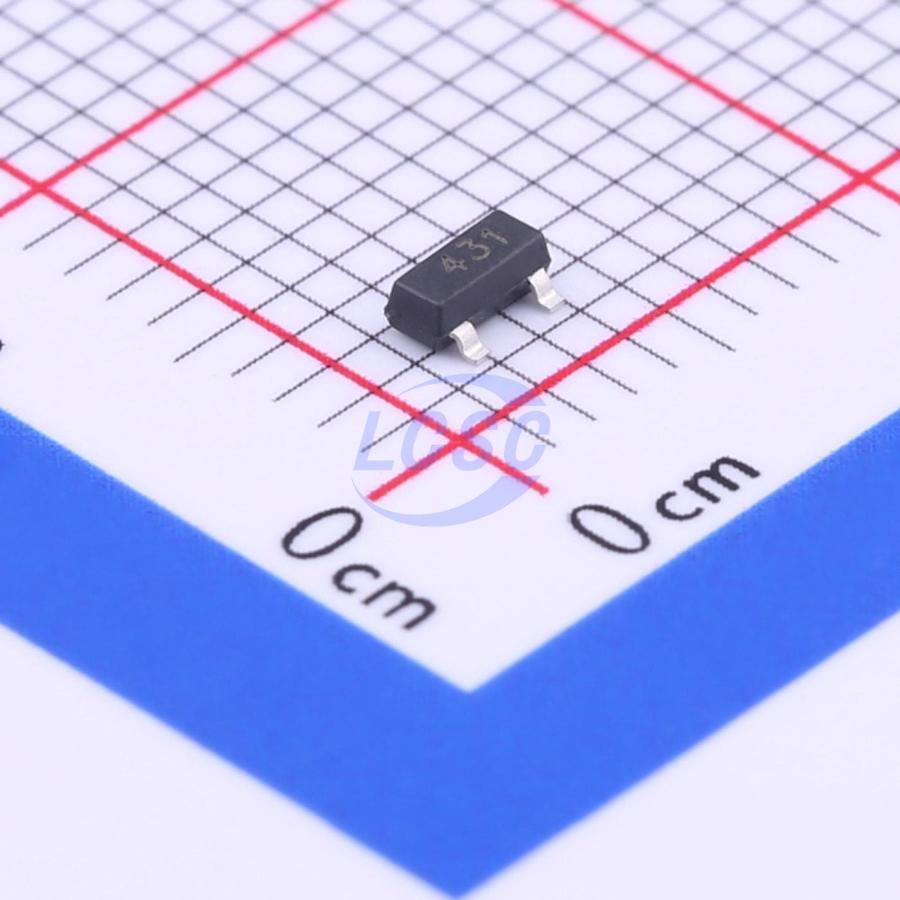

TL431
2.5V~36V ±0.5% 37V 150mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS CompliantActive
Adjustable Accurate Reference Source
- Manufacturer
- AnBon
- Manufacturer part #
- TL431
- Store part #
- C397594
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,190 in stock
#C397594
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.91 | ₹49.10 |
| 100+ | ₹3.86 | ₹386.00 |
| 300+ | ₹3.33 | ₹999.00 |
| 3,000+ | ₹2.90 | ₹8,700.00 |
| 6,000+ | ₹2.58 | ₹15,480.00 |
| 9,000+ | ₹2.42 | ₹21,780.00 |
10 × ₹4.91
₹49.10
excl. GST
₹57.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431
₹49.10 for 10 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±0.5%
- Voltage - Supply
- 37V
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 150mA
- Operating Temperature
- -40℃~+85℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
The TL431 is a three-terminal adjustable shunt regulator offering excellent temperature stability. This device has a typical dynamic output impedance of 0.2Ω. The device can be used as a replacement for zener diodes in many applications.
Applications
- Shunt Regulator
- High-Current Shunt Regulator
- Precision Current Limiter
Key features
- The output voltage can be adjusted to 36V
- Low dynamic output impedance, its typical value is 0.2Ω
- Trapping current capability is 1 to 100mA
- Low output noise voltage
- Fast on -state response
- The effective temperature compensation in the working range of full temperature
- The typical value of the equivalent temperature factor in the whole temperature scope is 50 ppm/°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL431#C49318142luJing · SOT-23 | luJing | SOT-23 | 2,040 | ₹7.36 · 2,040 in stock | View |
 | TL431#C408390MDD(Microdiode Semiconductor) · SOT-23 | MDD(Microdiode Semiconductor) | SOT-23 | 74,340 | ₹6.89 · 74,340 in stock | View |
 | MX431#C512790Mixic · SOT-23 | Mixic | SOT-23 | 1,770 | ₹10.31 · 1,770 in stock | View |
 | LM431CIM3/NOPB#C129974TI · SOT-23 | TI | SOT-23 | 13 | ₹110.62 · 13 in stock | View |
 | CD431#C50176441GOODWORK · SOT-23 | GOODWORK | SOT-23 | 4,360 | ₹5.69 · 4,360 in stock | View |
