UMWDatasheet (PDF)

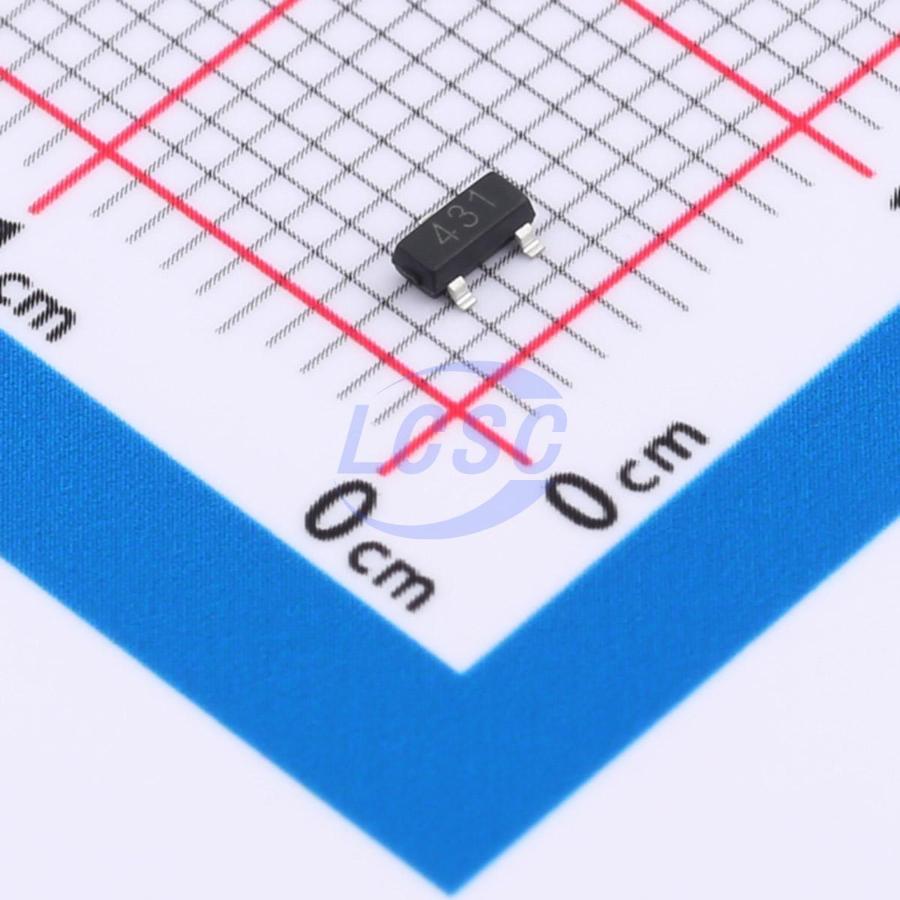

TL431
2.495V~36V ±0.5% 2.495V~36V 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS CompliantActive
Adjustable Precision Shunt Regulator
- Manufacturer
- UMW
- Manufacturer part #
- TL431
- Store part #
- C5447658
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,27,220 in stock
#C5447658
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.40 | ₹68.00 |
| 200+ | ₹2.75 | ₹550.00 |
| 600+ | ₹2.38 | ₹1,428.00 |
| 3,000+ | ₹2.17 | ₹6,510.00 |
| 21,000+ | ₹1.88 | ₹39,480.00 |
| 39,000+ | ₹1.85 | ₹72,150.00 |
20 × ₹3.40
₹68.00
excl. GST
₹80.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431
₹68.00 for 20 + GST
Specifications
- Output Voltage
- 2.495V~36V
- Quiescent Current
- 1.8uA
- Tolerance
- ±0.5%
- Voltage - Supply
- 2.495V~36V
- Minimum Cathode Current for Regulation
- 250uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+85℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.041 g
Overview
UMW TL431 is a series of three-terminal adjustable voltage regulators with guaranteed thermal stability over the applicable temperature range. Using two external resistors, the output voltage can be set to any value between Vref and 36V. These devices have a typical dynamic output impedance of 0.27Ω, and the active output circuit provides very sharp turn-on characteristics, making these devices excellent replacements for Zener diodes in many applications.
Applications
- Precision voltage reference
- Linear regulator
- Adjustable power supply
