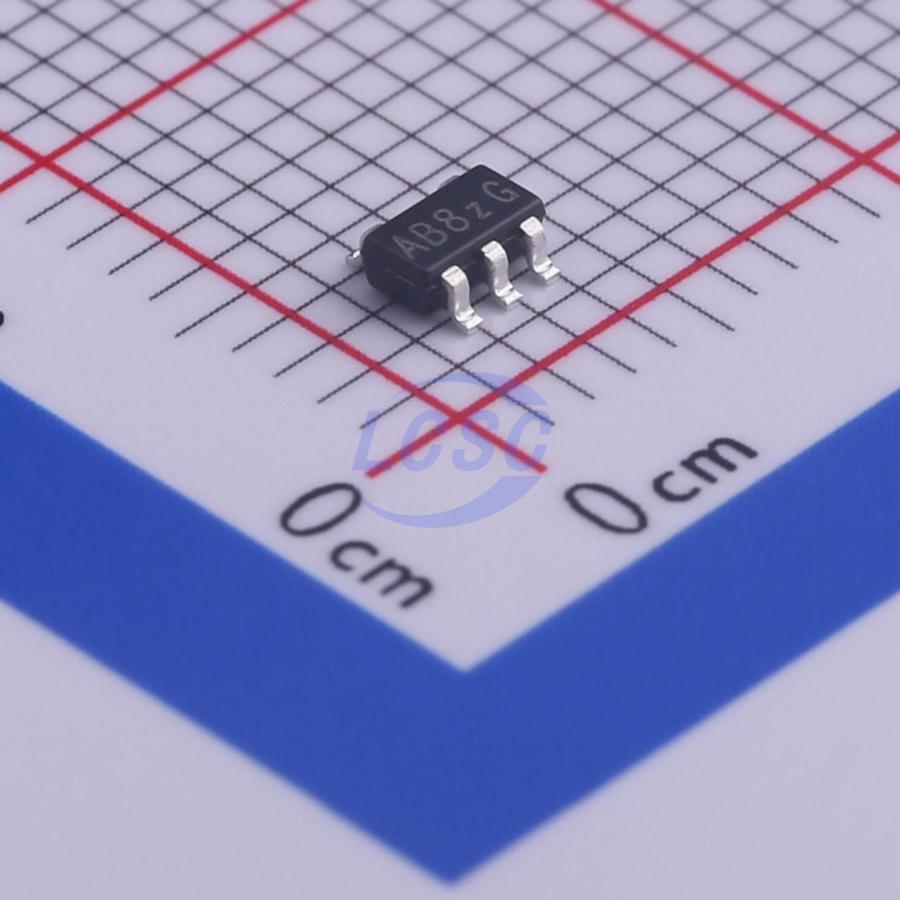

TL431Shunt Voltage Reference IC Adjustable 2.5V~36V ±1% 150mA SOT-23
From
₹8.07
4,89,020 in stock
DIODESDatasheet (PDF)
TL431BW5-7
2.495V~36V ±0.5% 2.495V~36V 100mA Adjustable SOT-25 Voltage Reference RoHS
SOT-25ROHS3 CompliantActive
Adjustable Precision Shunt Regulator
- Manufacturer
- DIODES
- Manufacturer part #
- TL431BW5-7
- Store part #
- C445501
- Package / case
- SOT-25
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,955 in stock
#C445501
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.60 | ₹108.00 |
| 50+ | ₹19.01 | ₹950.50 |
| 150+ | ₹17.91 | ₹2,686.50 |
| 500+ | ₹16.52 | ₹8,260.00 |
| 3,000+ | ₹15.92 | ₹47,760.00 |
| 6,000+ | ₹15.55 | ₹93,300.00 |
5 × ₹21.60
₹108.00
excl. GST
₹127.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431BW5-7
₹108.00 for 5 + GST
Specifications
- Output Voltage
- 2.495V~36V
- Tolerance
- ±0.5%
- Voltage - Supply
- 2.495V~36V
- Minimum Cathode Current for Regulation
- 400uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
The TL431 and TL432 are three terminal adjustable shunt regulators offering excellent temperature stability and output current handling capability up to 100 mA. The output voltage may be set to any chosen voltage between 2.5 and 36 volts by selection of two external divider resistors. The devices can be used as a replacement for zener diodes in many applications requiring an improvement in zener performance. The TL431 has the same electrical specifications as the industry standard ‘431 and is available in 2 grades with initial tolerances of 1% and 0.5% for the A and B grades respectively.
Applications
- Opto-Coupler Linearisers
- Shunt Regulators
- Improved Zener
- Variable Reference
Key features
- Temperature range -40 to +125°C
- Reference Voltage Tolerance at 25°C
- TL431A: 2.495V ±1.0%
- TL431B: 2.495V ±0.5%
- Low Output Noise
- 0.2Ω Typical Output Impedance
- Sink Current Capability: 1mA to 100 mA
- Adjustable Output Voltage: VREF to 36V
- All devices are:
- Totally Lead-Free & Fully RoHS compliant
- Halogen and Antimony Free. “Green” Device
