UTCDatasheet (PDF)

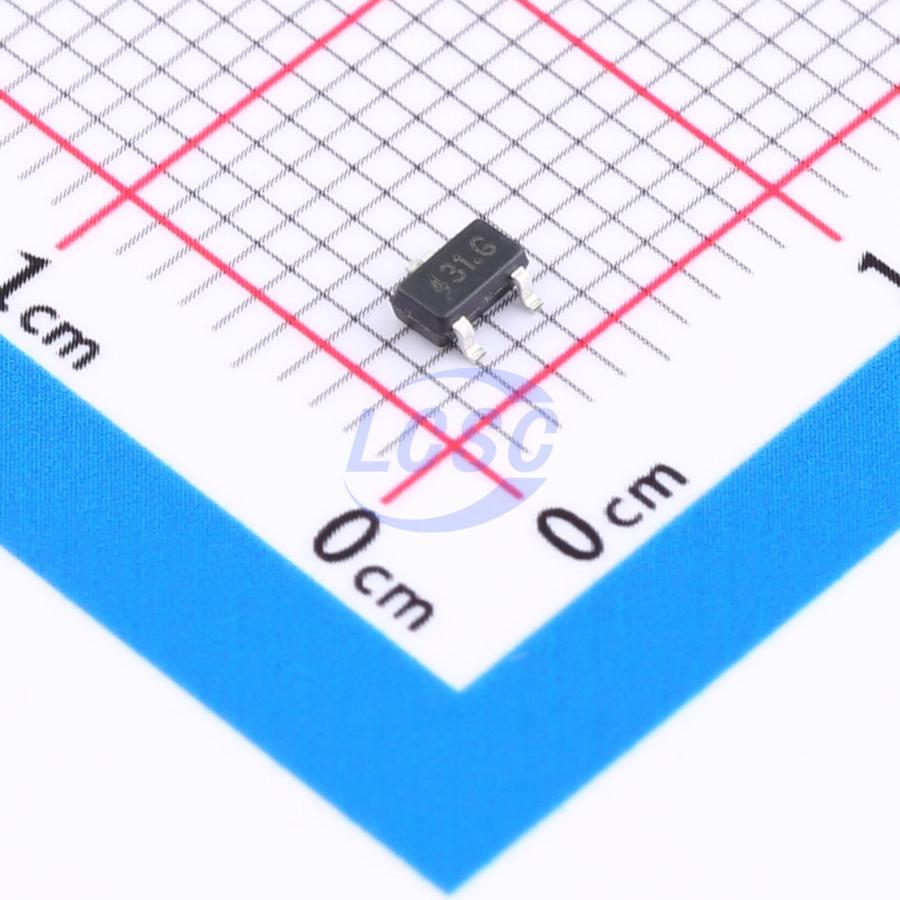

TL431G-AE3-R
2.5V~36V ±0.5% 2.495V 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS CompliantActive
Programmable Precision Reference Linear Integrated Circuit
- Manufacturer
- UTC
- Manufacturer part #
- TL431G-AE3-R
- Store part #
- C71130
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,740 in stock
#C71130
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.63 | ₹66.30 |
| 100+ | ₹5.34 | ₹534.00 |
| 300+ | ₹4.70 | ₹1,410.00 |
| 3,000+ | ₹3.81 | ₹11,430.00 |
| 6,000+ | ₹3.43 | ₹20,580.00 |
| 9,000+ | ₹3.24 | ₹29,160.00 |
10 × ₹6.63
₹66.30
excl. GST
₹78.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431G-AE3-R
₹66.30 for 10 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±0.5%
- Voltage - Supply
- 2.495V
- Minimum Cathode Current for Regulation
- 500uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+85℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The UTC TL431 is a three-terminal adjustable regulator with a guaranteed thermal stability over applicable temperature ranges. The output voltage may be set to any value between VREF (approximately 2.5V) and 36V with two external resistors. It provides very wide applications, including shunt regulator, series regulator, switching regulator, voltage reference and others.
Key features
- Programmable output Voltage to 36V.
- Low dynamic output impedance 0.2Ω.
- Sink current capability of 1.0 to 100mA.
- Equivalent full-range temperature coefficient of 50ppm/°C typical for operation over full rated operating temperature range.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LTP432BXT3/R6#C19270068Linearin · SOT-23 | Linearin | SOT-23 | 270 | ₹38.17 · 270 in stock | View |
 | TL431#C5447658UMW · SOT-23 | UMW | SOT-23 | 1,27,220 | ₹3.40 · 1,27,220 in stock | View |
 | LR TL431A-UK#C54333728LR · SOT-23 | LR | SOT-23 | 1,280 | ₹6.48 · 1,280 in stock | View |
 | TL431G#C347294UMW · SOT-23 | UMW | SOT-23 | 40,420 | ₹5.73 · 40,420 in stock | View |
 | LR431APTLT1G#C83959LRC · SOT-23 | LRC | SOT-23 | 27,180 | ₹5.93 · 27,180 in stock | View |
