GREENMICRODatasheet (PDF)

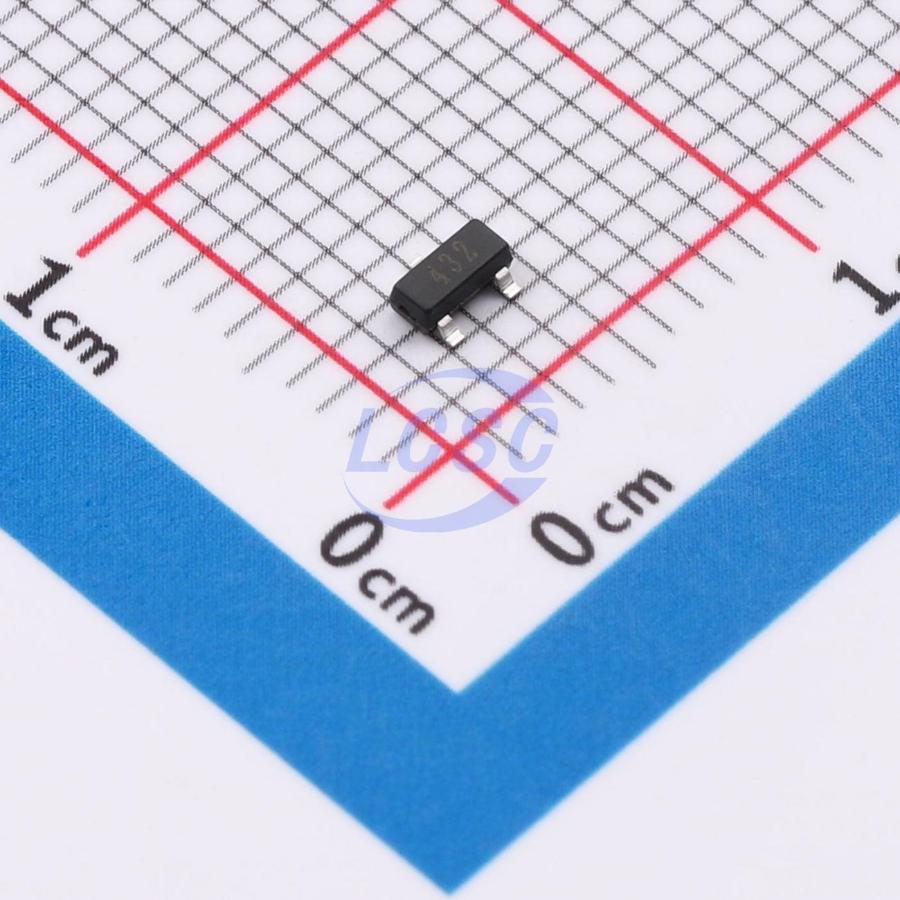

TL432AR
1.25V~30V Adjustable SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- TL432AR
- Store part #
- C52091989
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,860 in stock
#C52091989
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.58 | ₹91.60 |
| 200+ | ₹3.59 | ₹718.00 |
| 600+ | ₹3.03 | ₹1,818.00 |
| 3,000+ | ₹2.70 | ₹8,100.00 |
| 9,000+ | ₹2.41 | ₹21,690.00 |
| 21,000+ | ₹2.26 | ₹47,460.00 |
20 × ₹4.58
₹91.60
excl. GST
₹108.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL432AR
₹91.60 for 20 + GST
Specifications
- Output Voltage
- 1.25V~30V
- Operating Temperature
- -40℃~+125℃
- Operating Voltage
- 1.25V~30V
- Output Current
- 100mA
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.036 g
Overview
TL432 is a low-voltage three-terminal adjustable voltage regulator with guaranteed thermal stability over the operating temperature range. Using two external resistors, the output voltage can be set to any value between the reference voltage (approximately 1.25V) and 30V. The device features a typical dynamic output impedance of 0.2Ω. Its active output circuit provides a very sharp turn-on characteristic, making it an excellent replacement for Zener diodes in many applications. The TL432 is available in a SOT23 package.
Applications
- Voltage adapter
- Switching power supply
- Computer motherboard
- Graphics card
- Charger
Key features
- Wide-range, programmable, precise output voltage from 1.25V to 30V
- High stability under capacitive loads
- Low temperature drift: typical 3mV
- High sink current capability from 55μA to 100mA
- Low dynamic output impedance: typical 0.2Ω
- Low output noise
