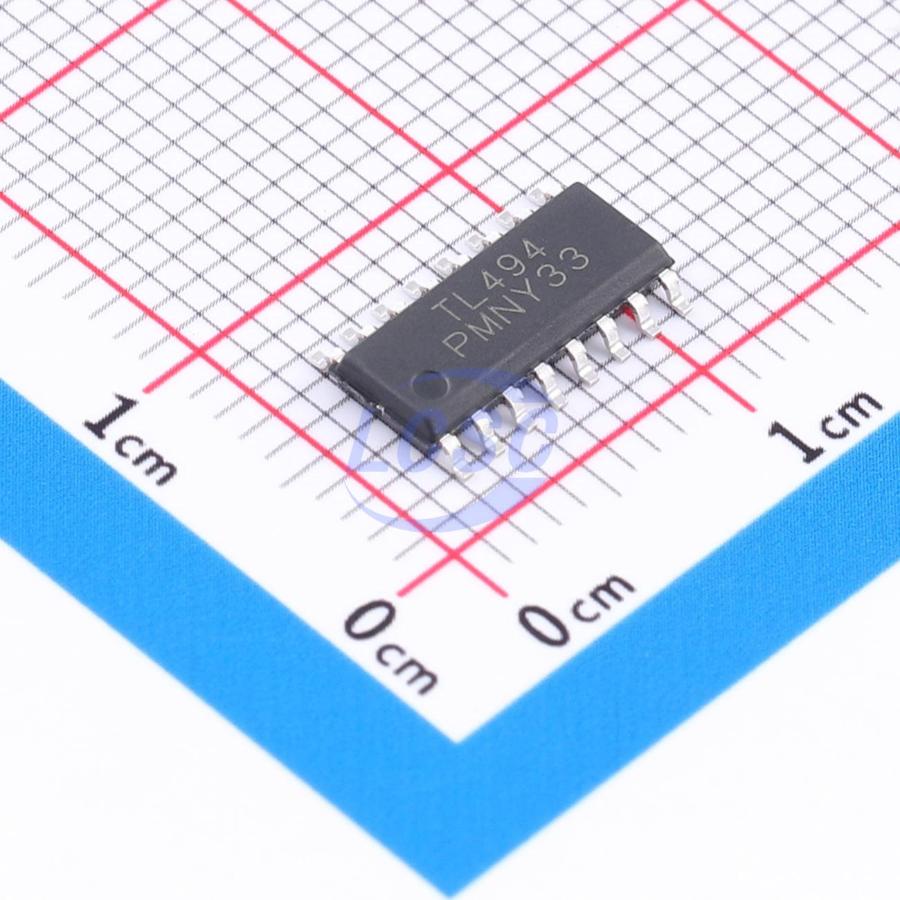

TL494-P16
1kHz~200kHz 200mA 7V~40V SOP-16 AC DC Converters, Offline Switchers
SOP-16RoHSActive
- Manufacturer
- Shikues
- Manufacturer part #
- TL494-P16
- Store part #
- C53467486
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,430 in stock
#C53467486
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.57 | ₹72.85 |
| 50+ | ₹11.58 | ₹579.00 |
| 150+ | ₹10.08 | ₹1,512.00 |
| 500+ | ₹8.96 | ₹4,480.00 |
| 2,500+ | ₹8.06 | ₹20,150.00 |
| 5,000+ | ₹7.61 | ₹38,050.00 |
5 × ₹14.57
₹72.85
excl. GST
₹85.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL494-P16
₹72.85 for 5 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Frequency - Switching
- 1kHz~200kHz
- Output Current
- 200mA
- Voltage - Supply
- 7V~40V
- Topology
- Forward;Half-Bridge;Full-Bridge;Push-Pull
- Duty Cycle(Max)
- 45%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.28 g
Overview
TL494 is a switch-mode PWM control circuit primarily used for power supply control. It allows flexible customization of power control circuits for specific applications. The TL494 integrates two error amplifiers, an on-chip adjustable oscillator, a dead-time control (DTC) comparator, a pulse-steering flip-flop, a 5V voltage regulator, and various output control circuits. The TL494 is available in SOP16 or DIP16 packages.
Applications
- Computer power supplies
- Inverter power supplies
- Forward dual-transistor, half-bridge, and full-bridge switch-mode power supplies
Key features
- Push-pull or single-ended output control modes
- Dual error amplifiers
- 5V reference supply (accuracy up to ±2%)
- Adjustable dead-time control
- Independent output transistors
- Sink or source current up to 200mA
- Complete PWM control circuitry
- Master or slave oscillator function
