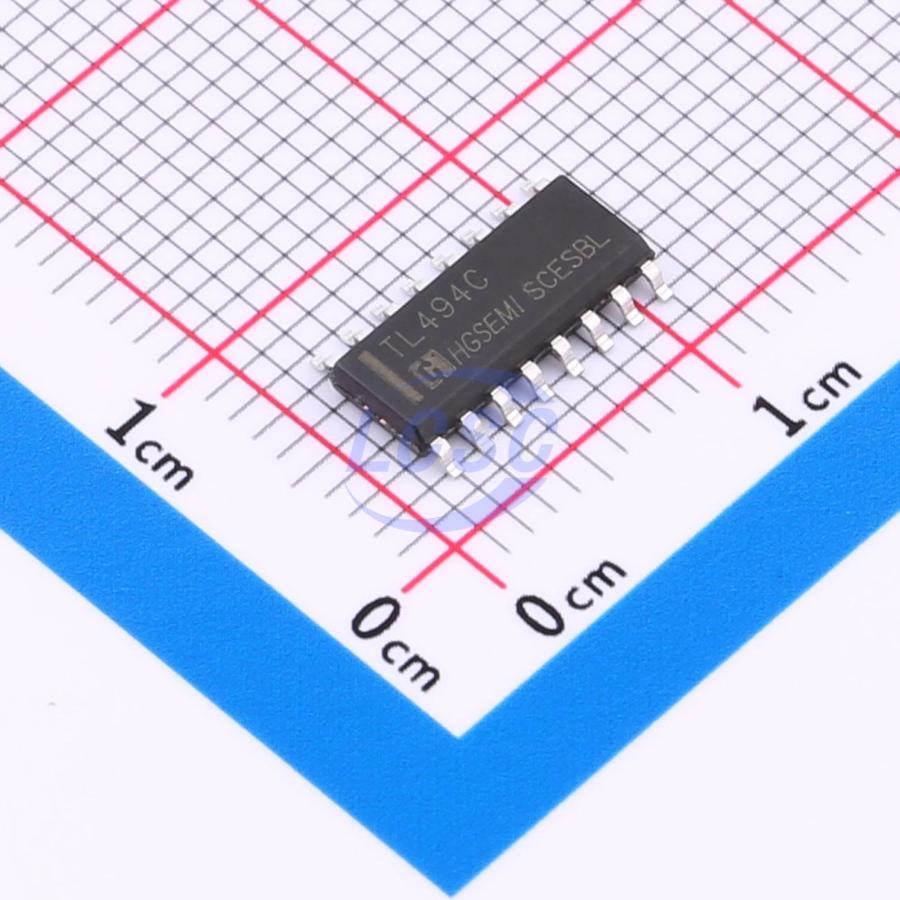

TL494CM/TR
Converter Offline Push-Pull Topology 1kHz~200kHz SOP-16
SOP-16RoHSActive
Current-mode PWM controller
- Manufacturer
- HGSEMI
- Manufacturer part #
- TL494CM/TR
- Store part #
- C19193412
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,095 in stock
#C19193412
Stock & price checked 17 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.41 | ₹87.05 |
| 50+ | ₹13.59 | ₹679.50 |
| 150+ | ₹11.68 | ₹1,752.00 |
| 500+ | ₹10.25 | ₹5,125.00 |
| 2,500+ | ₹9.91 | ₹24,775.00 |
| 5,000+ | ₹9.34 | ₹46,700.00 |
5 × ₹17.41
₹87.05
excl. GST
₹102.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL494CM/TR
₹87.05 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Output Current
- 200mA
- Frequency - Switching
- 1kHz~200kHz
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 7V~40V
- Features
- Adjustable soft-start
- Topology
- Push-Pull
- Output Voltage
- 40V
- Duty Cycle(Max)
- 45%
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.336 g
Overview
TL494 is a switching pulse width modulation circuit primarily used for switching power supply control. Available in DIP-16, SOP-16, TSSOP-16, and QSOP-16 packages.
Key features
- Complete PWM circuitry
- Master or slave oscillator
- Dual error amplifiers
- 5V reference voltage
- Adjustable dead-time control
- Independent output transistors with 200 mA source/sink current capability
- Push-pull or single-ended output control
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL494IM/TR#C19193413HGSEMI · SOP-16 | HGSEMI | SOP-16 | 440 | ₹22.93 · 440 in stock | View |
