HANSCHIP semiconductorDatasheet (PDF)

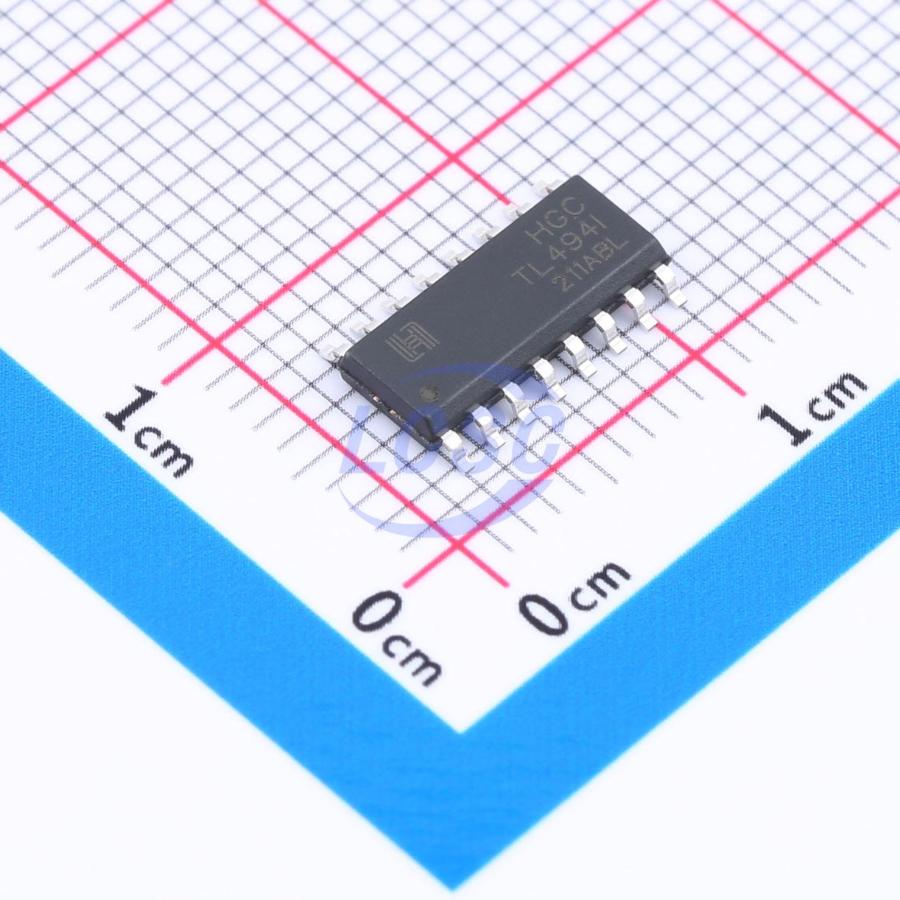

TL494IDRG
200mA 6kHz~14kHz 40V 7V~40V Push-Pull SOP-16 AC DC Converters, Offline Switchers RoHS
SOP-16ROHS CompliantActive
SWITCH MODE Pulse Width Modulation Control Circuit
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- TL494IDRG
- Store part #
- C5145393
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24,340 in stock
#C5145393
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.43 | ₹67.15 |
| 50+ | ₹11.93 | ₹596.50 |
| 150+ | ₹11.19 | ₹1,678.50 |
| 500+ | ₹10.62 | ₹5,310.00 |
| 2,500+ | ₹8.98 | ₹22,450.00 |
| 5,000+ | ₹8.76 | ₹43,800.00 |
5 × ₹13.43
₹67.15
excl. GST
₹79.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL494IDRG
₹67.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Output Current
- 200mA
- Frequency - Switching
- 6kHz~14kHz
- Voltage - Breakdown
- 40V
- Voltage - Supply
- 7V~40V
- Topology
- Push-Pull
- Features
- Under-voltage lockout;Under Voltage Protection
- Duty Cycle(Max)
- 45%
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.29 g
Overview
TL494 is a fixed-frequency pulse-width modulation control circuit, primarily used for switching power supply control.
Key features
- Complete PWM control circuit
- On-chip oscillator with master/slave operation mode
- On-chip error amplifier
- On-chip 5.0V reference voltage
- Adjustable dead-time control
- Uncommitted output transistors, source or drain current rating up to 500 mA
- Output control for push-pull or single-ended operation
- Undervoltage lockout
- DIP-16 package
- SOP-16 package
- TSSOP-16 package
