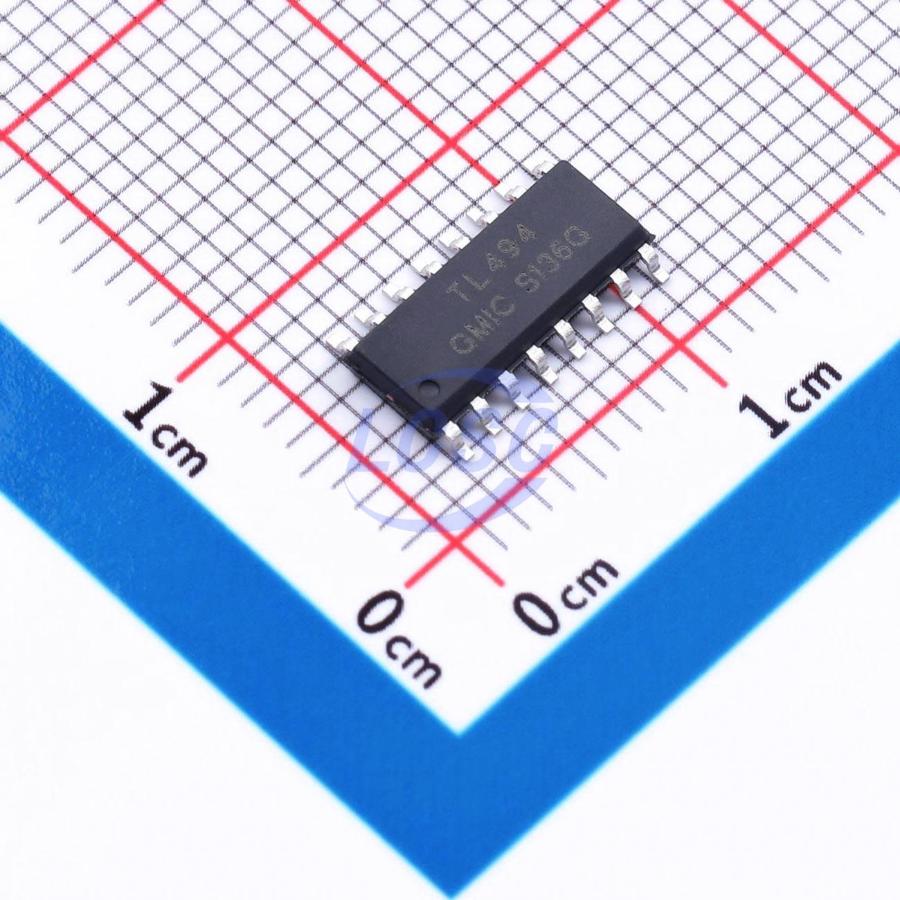

GREENMICRO

TL494IES

1kHz~200kHz 900mW 7V~40V Push-Pull SOP-16 AC DC Converters, Offline Switchers

SOP-16RoHSActive

Manufacturer: GREENMICRO
Manufacturer part #: TL494IES
Store part #: C51927322
Package / case: SOP-16
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,475 in stock

#C51927322

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
5+	₹12.46	₹62.30
50+	₹9.90	₹495.00
150+	₹8.61	₹1,291.50
500+	₹7.66	₹3,830.00
2,500+	₹6.89	₹17,225.00
5,000+	₹6.51	₹32,550.00

Quantity (min 5, multiples of 5)

5 × ₹12.46

₹62.30

excl. GST

₹73.51 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TL494IES

₹62.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -25℃~+85℃
Frequency - Switching: 1kHz~200kHz
Pd - Power Dissipation: 900mW
Voltage - Supply: 7V~40V
Features: Under-voltage lockout;Under Voltage Protection
Topology: Push-Pull
Duty Cycle(Max): 45%
Working Mode: PWM Modulation

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.377 g

Overview

The TL494 is a voltage-driven PWM control IC featuring an internal 5V reference voltage circuit, two error amplifiers, a PWM comparator, a flip-flop, a control output circuit, a dead-time comparator, and an oscillator, primarily used in various switching power supplies. The device is available in DIP16 and SOP16 packages. The output voltage can be calculated using the formulas Vo = Vref × (1 + R1 / R2) and Vo = Vref × R1 / R2.
