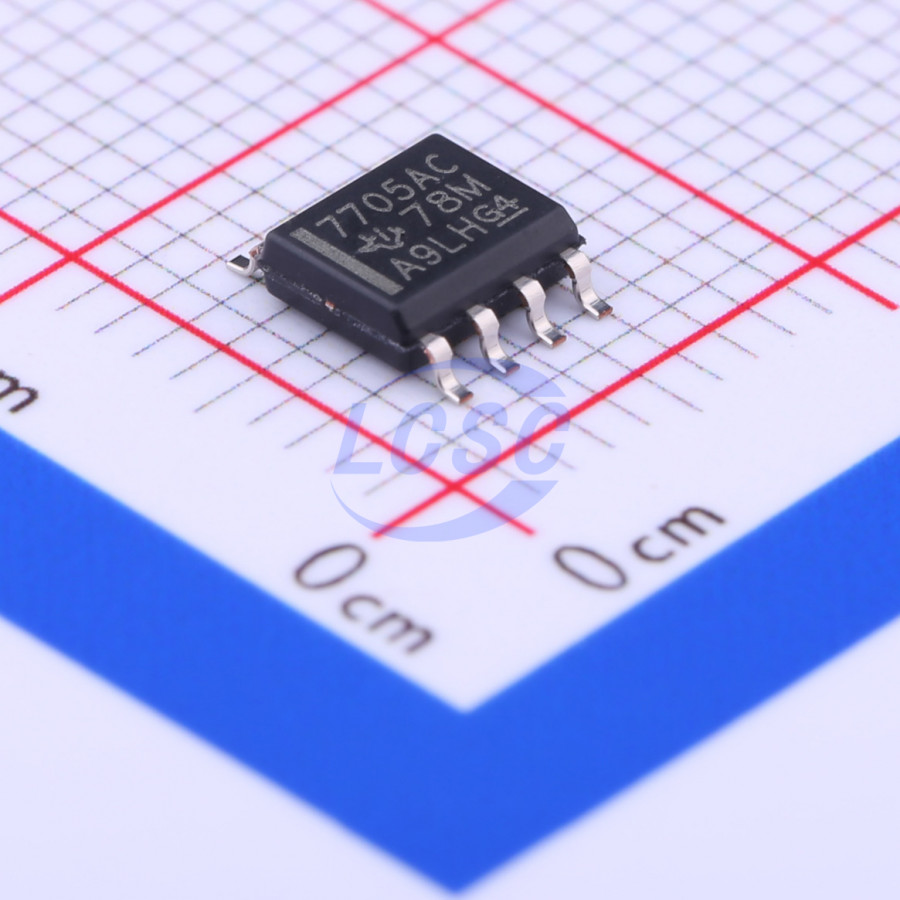

TL7705ACDR
1.3ms Active Low 3.5V~18V 1 SOIC-8 Supervisors RoHS
Supply-Voltage Supervisors
- Manufacturer
- TI
- Manufacturer part #
- TL7705ACDR
- Store part #
- C350569
- Package / case
- SOIC-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,062 in stock
#C350569
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹220.99 | ₹220.99 |
| 10+ | ₹192.75 | ₹1,927.50 |
| 30+ | ₹177.10 | ₹5,313.00 |
| 100+ | ₹159.50 | ₹15,950.00 |
| 500+ | ₹147.33 | ₹73,665.00 |
| 1,000+ | ₹143.86 | ₹1,43,860.00 |
1 × ₹220.99
₹220.99
excl. GST
₹260.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL7705ACDR
₹220.99 for 1 + GST
Specifications
- Reset Timeout
- 1.3ms
- Operating Temperature
- -40℃~+85℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- Voltage - Supply
- 3.5V~18V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.55V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
Overview
The TL77xxA family of integrated-circuit supply-voltage supervisors is designed specifically for use as reset controllers in microcomputer and microprocessor systems. The supply-voltage supervisor monitors the supply for undervoltage conditions at the SENSE input. During power up, the RESET output becomes active (low) when VCC attains a value approaching 3.6 V. At this point (assuming that SENSE is above VIT+), the delay timer function activates a time delay, after which outputs RESET and RESET go inactive (high and low, respectively). When an undervoltage condition occurs during normal operation, RESET and RESET go active.
Applications
- Computers
- Tablets
- Smart Phones
- Servers
- Music Players
Key features
- Power-On Reset Generator
- Automatic Reset Generation After Voltage Drop
- Wide Supply-Voltage Range
- Precision Voltage Sensor
- Temperature-Compensated Voltage Reference
- Externally Adjustable Pulse Duration
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL7705AIDR#C53106TI · SOIC-8 | TI | SOIC-8 | 878 | ₹189.67 · 878 in stock | View |
