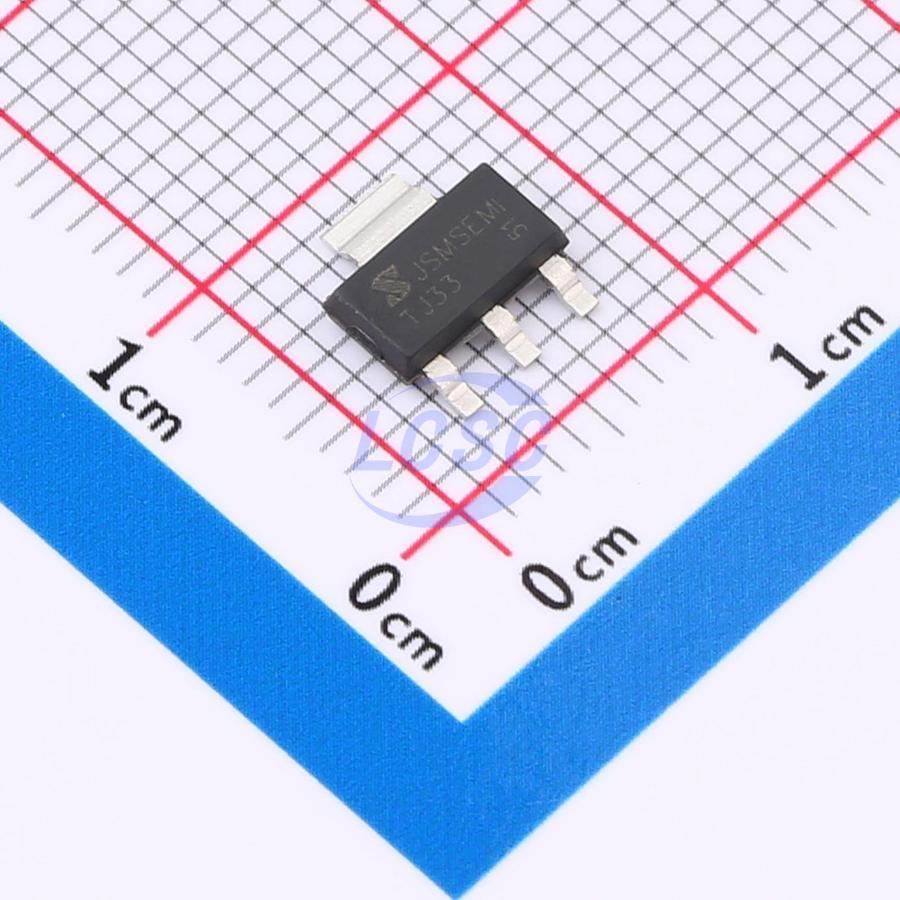

TLV1117LV33DCYR
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
SOT-223ROHS CompliantActive
1A LDO regulator circuit
- Manufacturer
- JSMSEMI
- Manufacturer part #
- TLV1117LV33DCYR
- Store part #
- C48937499
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
84,235 in stock
#C48937499
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.88 | ₹74.40 |
| 50+ | ₹11.76 | ₹588.00 |
| 150+ | ₹10.20 | ₹1,530.00 |
| 500+ | ₹9.02 | ₹4,510.00 |
| 2,500+ | ₹8.28 | ₹20,700.00 |
| 5,000+ | ₹7.81 | ₹39,050.00 |
5 × ₹14.88
₹74.40
excl. GST
₹87.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV1117LV33DCYR
₹74.40 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(TJ)
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 12V
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.236 g
Overview
TLV1117LV33DCYR is a positive-voltage-output low-dropout three-terminal linear regulator with a 1.2V dropout voltage at 1A output current. The device integrates internal over-temperature protection and current limiting circuitry, suitable for a wide range of electronic applications.
Applications
- Laptop computers and handheld devices
- Battery chargers
- SCSI-II active termination
- Mobile phones
- Cordless phones
Key features
- Fixed output voltage 3.3V; adjustable version output voltage accuracy 1.5%
- Fixed output voltage 1.2V accuracy 2%
- Low dropout voltage: 1.2V at 1A output current
- Current limiting
- Thermal protection
- Operating temperature range: -40℃ ~ 125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AMS1117-3.3#C917183JSMSEMI · SOT-223-3 | JSMSEMI | SOT-223-3 | 60,890 | ₹7.91 · 60,890 in stock | View |
 | AMS1117-3.3V#C5205141JSMSEMI · SOT-223 | JSMSEMI | SOT-223 | 1,25,960 | ₹7.54 · 1,25,960 in stock | View |
