TLV320DAC3100IRHBR

2.7V~5.5V Class D HVQFN-32-EP(5x5) ADCs/DACs - Special Purpose RoHS

HVQFN-32-EP(5x5)ROHS3 CompliantActive

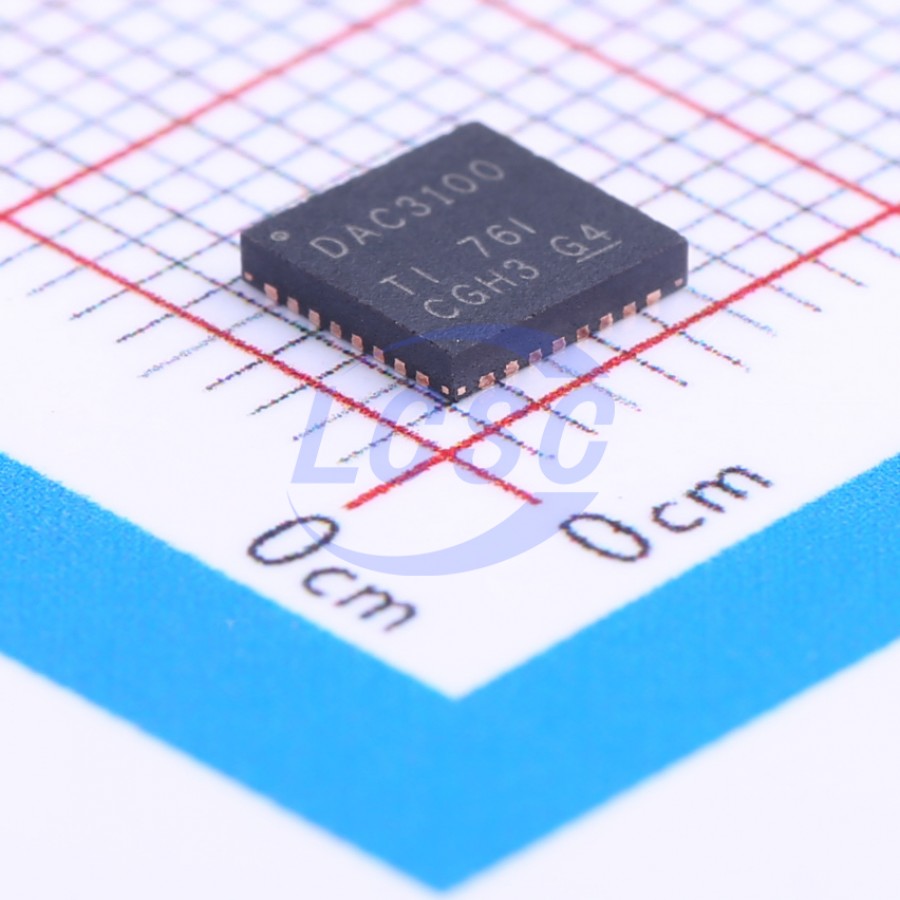

TLV320DAC3100 Low-Power Stereo Audio DAC With Audio Processing and Mono Class-D Speaker Amplifier

Manufacturer: TI
Manufacturer part #: TLV320DAC3100IRHBR
Store part #: C179677
Package / case: HVQFN-32-EP(5x5)
Category: ADCs/DACs - Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,162 in stock

#C179677

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹248.91	₹248.91
10+	₹213.14	₹2,131.40
30+	₹190.59	₹5,717.70
100+	₹167.60	₹16,760.00
500+	₹157.20	₹78,600.00
1,000+	₹152.65	₹1,52,650.00

Quantity (min 1)

1 × ₹248.91

₹248.91

excl. GST

₹293.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV320DAC3100IRHBR

₹248.91 for 1 + GST

Specifications

Features: Built-in audio processing;Integrated PLL;Digitally programmable gain;Enable/shutdown function
Number of Channels: 2 Single-Ended Inputs;1-Channel
Operating Temperature: -40℃~+85℃
S/N Ratio: 95dB
Output Power: 2.5W×1@4Ω;1.6W×1@8Ω
Voltage - Supply: 2.7V~5.5V
Class: Class D

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.154 g

Overview

The TLV320DAC3100 device is a low-power, highly integrated, high-performance stereo audio DAC with 24-bit stereo playback and digital audio processing blocks. The device integrates headphone drivers and speaker drivers. The mono speaker driver can drive loads down to 4 Ω. The TLV320DAC3100 device has a suite of built-in processing blocks for digital audio processing. The digital audio data format is programmable to work with popular audio standard protocols (I²S, left/right-justified) in master, slave, DSP, and TDM modes. Bass boost, treble, or EQ can be supported by the programmable digital signal-processing block. An on-chip PLL provides the high-speed clock needed by the digital signal-processing block. The volume level can be controlled either by pin control or by register control. The audio functions are controlled using the I²C serial bus. The TLV320DAC3100 device has a programmable digital sine-wave generator and is available in a 32-pin VQFN package.

Applications

Portable Audio Devices
Mobile Internet Devices
eBooks

Key features

Stereo Audio DAC with 95-dB SNR
Supports 8-kHz to 192-kHz Sample Rates
Mono Class-D BTL Speaker Driver (2.5 W Into 4-Ω or 1.6 W Into 8-Ω)
Two Single-Ended Inputs With Mixing and Output Level Control
Stereo Headphone/Lineout and Mono Class-D Speaker Outputs Available
Microphone Bias
Headphone Detection
25 Built-in Digital Audio Processing Blocks (PRB_P1 – PRB_P25) Providing Biquad and FIR Filters, DRC, and 3-D Structures
Digital Mixing Capability
Pin Control or Register Control for Digital-Playback Volume-Control Settings
Digital Sine-Wave Generator for Beeps and Key Clicks (PRB_P25)
Programmable PLL for Flexible Clock Generation
I2S, Left-Justified, Right-Justified, DSP, and TDM Audio Interfaces
I2C Control With Register Auto-Increment
Full Power-Down Control
Power Supplies:
Analog: 2.7 V–3.6 V
Digital Core: 1.65 V–1.95 V
Digital I/O: 1.1 V–3.6 V
Class-D: 2.7 V–5.5 V (SPKVDD ≥ AVDD)
5-mm × 5-mm 32-VQFN Package
