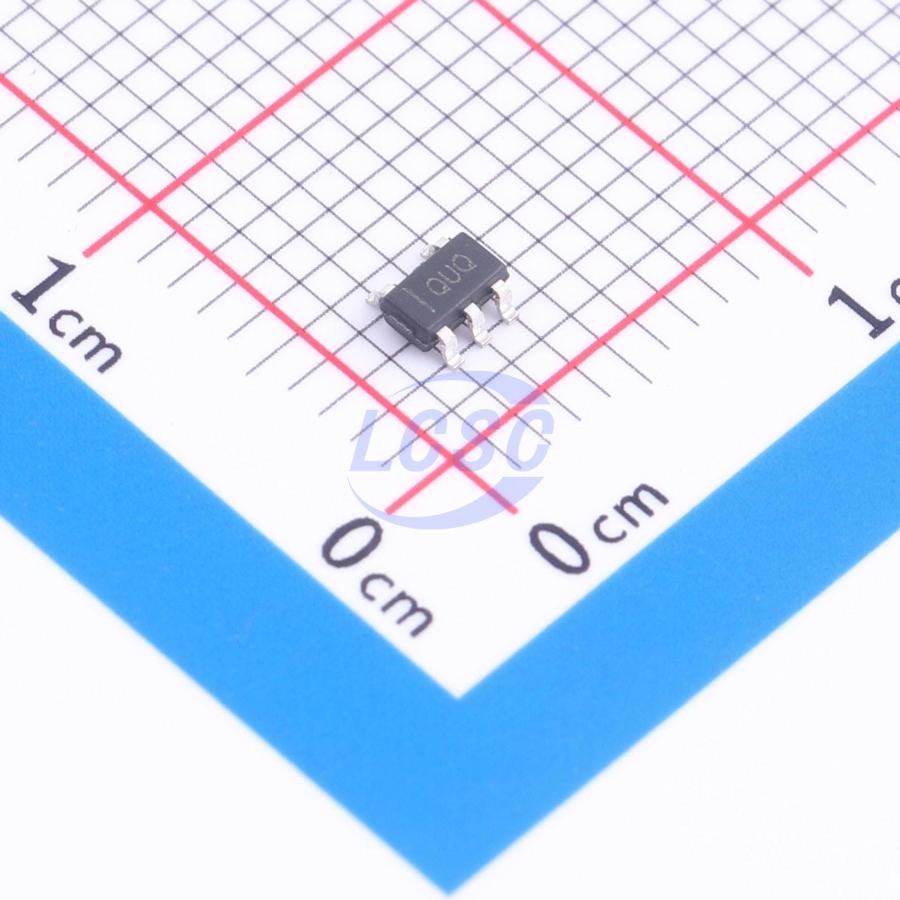

TLV70430DBVR-TD
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5
SOT-23-5ROHS CompliantActive
Low Dropout Linear Regulator
- Manufacturer
- TDSEMIC
- Manufacturer part #
- TLV70430DBVR-TD
- Store part #
- C42422105
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,005 in stock
#C42422105
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.44 | ₹137.20 |
| 50+ | ₹21.82 | ₹1,091.00 |
| 150+ | ₹19.41 | ₹2,911.50 |
| 500+ | ₹16.41 | ₹8,205.00 |
| 2,500+ | ₹15.07 | ₹37,675.00 |
| 5,000+ | ₹14.26 | ₹71,300.00 |
5 × ₹27.44
₹137.20
excl. GST
₹161.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV70430DBVR-TD
₹137.20 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 150mA
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.04 g
Overview
The TLV704XX is a low-dropout linear regulator built on CMOS technology. It supports a maximum input voltage of 30V, offers several fixed output voltage options ranging from 1.8V to 5.0V, and features low quiescent current consumption. It is widely used in power supply applications for audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input-output voltage differential
- Low temperature drift coefficient
- Maximum operating voltage up to 24V
- Quiescent current 1.5μA
- Output voltage accuracy: ±2%
- High output current: 150mA
