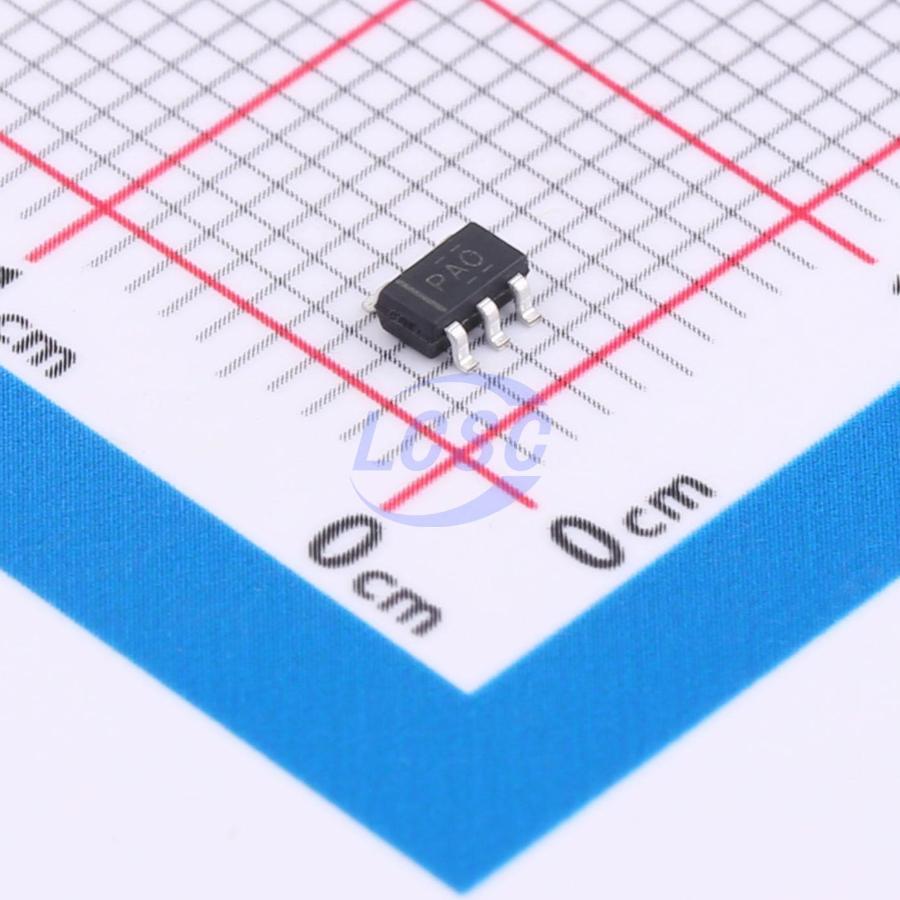

TLV70433DBVR(MS)
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
Low Dropout Linear Regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- TLV70433DBVR(MS)
- Store part #
- C20538866
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,990 in stock
#C20538866
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.23 | ₹76.15 |
| 50+ | ₹12.09 | ₹604.50 |
| 150+ | ₹10.53 | ₹1,579.50 |
| 500+ | ₹9.35 | ₹4,675.00 |
| 3,000+ | ₹8.03 | ₹24,090.00 |
| 6,000+ | ₹7.55 | ₹45,300.00 |
5 × ₹15.23
₹76.15
excl. GST
₹89.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV70433DBVR(MS)
₹76.15 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 30V
- Features
- Over Current Protection;Input overvoltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
TLV70XXXDBVR(MS) series are a set of Low Dropout Linear Regulator ICs implemented in CMOS technology. They can withstand voltage 30V. And they are available with low voltage drop and low quiescent current, widely used in audio, video and communication appliances. TLV70XXXDBVR(MS) series are linear voltage regulator ICs withstanding 30V voltage. The series IC consists of a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor. The output stabilization capacitor is also compatible with low ESR ceramic capacitors. The over current protection circuit and the over voltage protection circuit are built - in. The protection circuit will operate when the output current or input voltage reaches limit level.
Applications
- Battery-powered Equipments
- Communication Equipments
- Audio/Video Equipments
Key features
- Low Power Consumption
- Low Voltage Drop
- Low Temperature Coefficient
- Withstanding Voltage 30V
- Quiescent Current 1.5μA
- Output Voltage Accuracy: tolerance ±2%
- High output current: 100mA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7533-2(MS)#C30197495MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,165 | ₹19.73 · 2,165 in stock | View |
 | HT7533-3(MS)#C30197507MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 1,610 | ₹20.36 · 1,610 in stock | View |
