TIDatasheet (PDF)

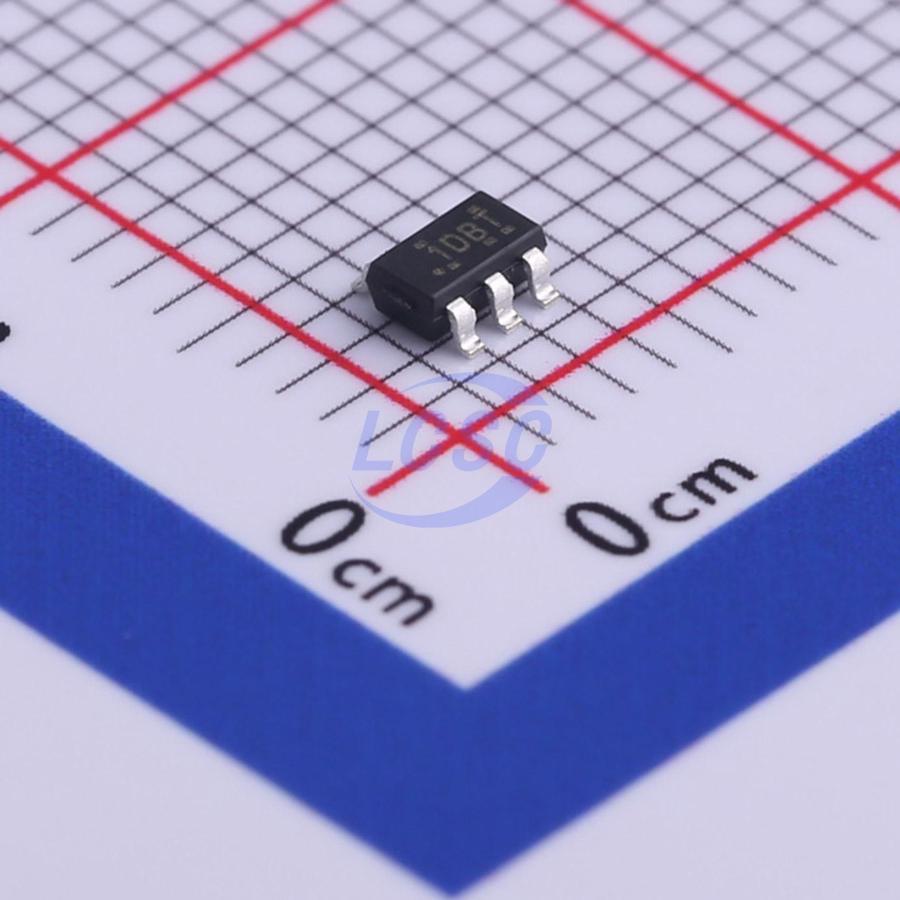

TLV74312PDBVR
1.2V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
300mA, low IQ, low dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- TLV74312PDBVR
- Store part #
- C485149
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,635 in stock
#C485149
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.42 | ₹67.10 |
| 50+ | ₹11.02 | ₹551.00 |
| 150+ | ₹9.82 | ₹1,473.00 |
| 500+ | ₹8.92 | ₹4,460.00 |
| 3,000+ | ₹8.11 | ₹24,330.00 |
| 6,000+ | ₹7.75 | ₹46,500.00 |
5 × ₹13.42
₹67.10
excl. GST
₹79.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV74312PDBVR
₹67.10 for 5 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 34uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Input under-voltage protection;Output discharge;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
The TLV743P low-dropout linear regulator (LDO) is an ultra-small, low quiescent current LDO that sources 300 mA with good line and load transient performance. The device provides a typical accuracy of 1%. The TLV743P is designed to be stable with a small output capacitor with a value of 1 μF. The TLV743P device provides foldback current control during device power up and enabling. This functionality is especially important in battery-operated devices. The TLV743P provides an active pulldown circuit to quickly discharge output loads when the device is disabled. The TLV743P is available in standard DBV (SOT-23) and DQN (X2SON) packages.
Applications
- Tablets
- Smartphones
- Notebook and Desktop Computers
- Portable Industrial and Consumer Products
- WLAN and Other PC Add-On Cards
- Camera Modules
Key features
- Input Voltage Range: 1.4 V to 5.5 V
- Stable Operation With 1-μF Ceramic Output Capacitor
- Foldback Overcurrent Protection
- Packages: SOT-23 (5), X2SON (4)
- Very Low Dropout: 125 mV at 300 mA (3.3 VOUT)
- Accuracy: 1% (Typical), 1.4% (Maximum)
- Low IQ: 34 μA
- Available in Fixed-Output Voltages: 1 V to 3.3 V
- High PSRR: 50 dB at 1 kHz
- Active Output Discharge
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TLV73312PDBVT#C2871228TI · SOT-23-5 | TI | SOT-23-5 | 40 | ₹12.94 · 40 in stock | View | |
 | TLV73312PDBVR#C473364TI · SOT-23-5 | TI | SOT-23-5 | 165 | ₹21.76 · 165 in stock | View |
 | TLV73312PQDBVRQ1#C2867797TI · SOT-23-5 | TI | SOT-23-5 | 206 | ₹57.21 · 206 in stock | View |
 | TPS78412QDBVRQ1#C3746924TI · SOT-23-5 | TI | SOT-23-5 | 65 | ₹128.49 · 65 in stock | View |
 | RT9013-12GB#C58464RICHTEK · SOT-23-5 | RICHTEK | SOT-23-5 | 15,415 | ₹17.42 · 15,415 in stock | View |
