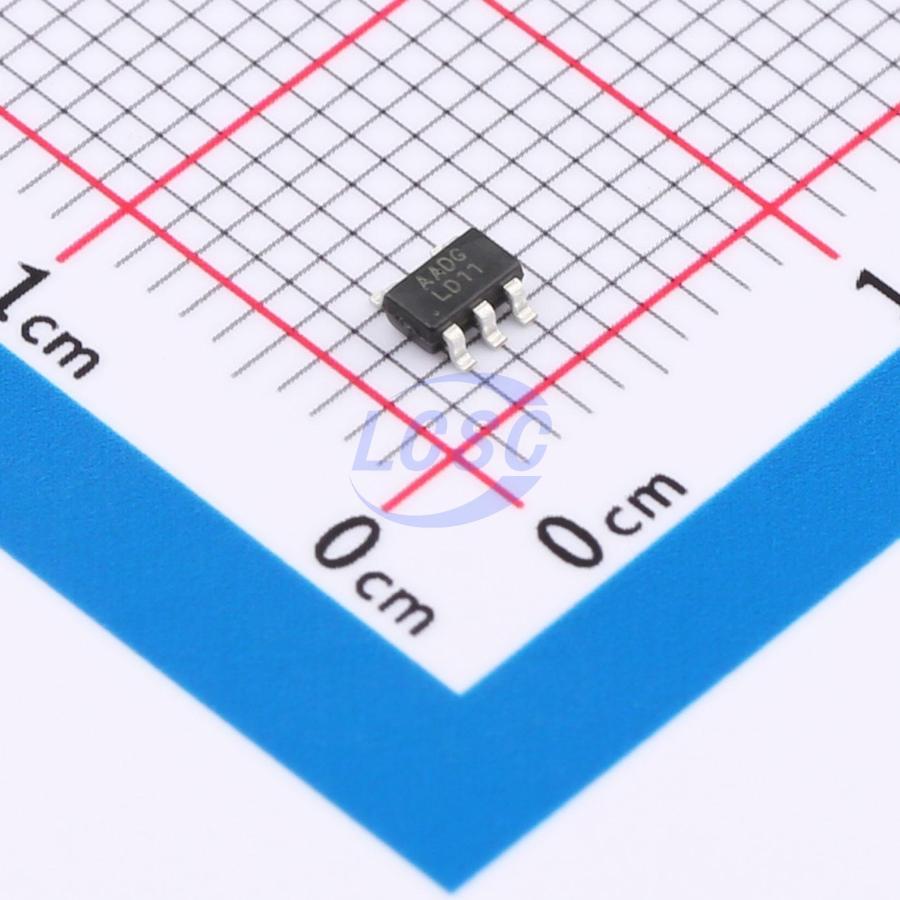

TLV74315PDBVR-MS
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5
SOT-23-5RoHSActive
Low Dropout (LDO) Converter
- Manufacturer
- MSKSEMI
- Manufacturer part #
- TLV74315PDBVR-MS
- Store part #
- C30197476
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,615 in stock
#C30197476
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.44 | ₹57.20 |
| 50+ | ₹9.05 | ₹452.50 |
| 150+ | ₹7.85 | ₹1,177.50 |
| 500+ | ₹6.95 | ₹3,475.00 |
| 2,500+ | ₹6.23 | ₹15,575.00 |
| 5,000+ | ₹5.87 | ₹29,350.00 |
5 × ₹11.44
₹57.20
excl. GST
₹67.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV74315PDBVR-MS
₹57.20 for 5 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The TLV743XXPDBVR-MS series is a family of low-dropout (LDO) regulators featuring a wide input voltage range of 1.2V to 5.5V, low dropout voltage, low power consumption, and compact packaging. The TLV743XXPDBVR-MS offers an ultra-low quiescent current of 2uA, making it particularly well-suited for battery-powered and long-term standby system applications. It helps reduce system standby power consumption, effectively extending standby time and battery life. The TLV743XXPDBVR-MS is available in a version with an EN enable pin. Pulling the EN pin low puts the device into shutdown mode, where quiescent current drops to as low as 100nA (typical). The TLV743XXPDBVR-MS series supports ceramic output capacitors and operates stably across the full 1.2V to 5.5V input voltage range and the entire output load current range of 0mA to 300mA.
Applications
- Handheld, battery-powered devices
- Low-power microprocessors
- Laptops, palmtops, and PDAs
- Wireless communication devices
- Audio/video equipment
- Automotive navigation systems
Key features
- 2µA quiescent current (no load)
- ±2% output voltage accuracy
- 300mA output current capability
- 100nA shutdown current (optional version)
- Wide input voltage range: 1.2V to 5.5V
- Low dropout: 0.18V (at ΔVO = 3.3V / Io = 300mA)
- Fixed output voltage options: 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Ceramic or tantalum capacitor compatible
- Current limiting protection
- Over-temperature protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP5907MFX-1.5/NOPB(MS)#C20538876MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 640 | ₹23.99 · 640 in stock | View |
 | TLV70215DBVR(MS)#C20627171MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 1,640 | ₹30.55 · 1,640 in stock | View |
 | XC6228D152VR-G(MS)#C20627182MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,340 | ₹10.07 · 2,340 in stock | View |
 | AP2127K-1.5TRG1-MS#C30197539MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,650 | ₹14.79 · 2,650 in stock | View |
 | MSXC6210B152MR#C49375233MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,920 | ₹12.45 · 2,920 in stock | View |
