TIDatasheet (PDF)

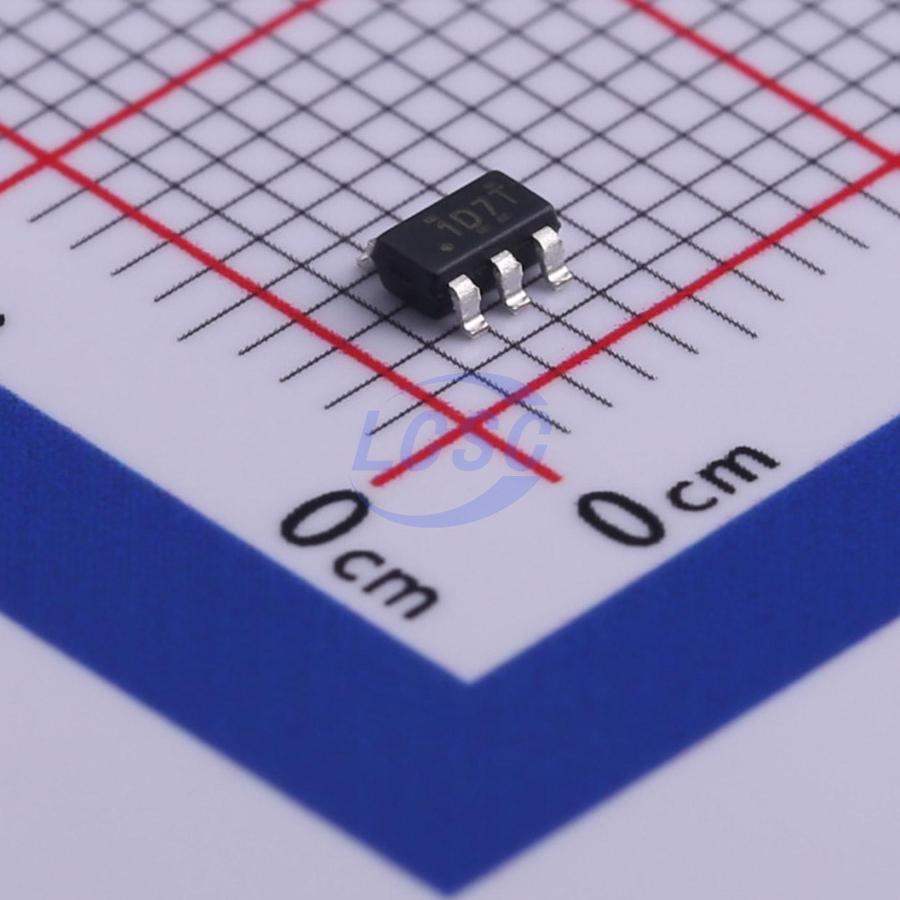

TLV74318PDBVR
1.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
300mA, low IQ, low dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- TLV74318PDBVR
- Store part #
- C485152
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,635 in stock
#C485152
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.09 | ₹45.45 |
| 50+ | ₹7.34 | ₹367.00 |
| 150+ | ₹6.44 | ₹966.00 |
| 500+ | ₹5.72 | ₹2,860.00 |
| 3,000+ | ₹5.45 | ₹16,350.00 |
| 6,000+ | ₹5.28 | ₹31,680.00 |
5 × ₹9.09
₹45.45
excl. GST
₹53.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV74318PDBVR
₹45.45 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 34uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Input under-voltage protection;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
The TLV743P low-dropout linear regulator (LDO) is an ultra-small, low quiescent current LDO that sources 300 mA with good line and load transient performance. The device provides a typical accuracy of 1%. The TLV743P is designed to be stable with a small output capacitor with a value of 1 μF. The TLV743P device provides foldback current control during device power up and enabling. This functionality is especially important in battery-operated devices. The TLV743P provides an active pulldown circuit to quickly discharge output loads when the device is disabled. The TLV743P is available in standard DBV (SOT-23) and DQN (X2SON) packages.
Applications
- Tablets
- Smartphones
- Notebook and Desktop Computers
- Portable Industrial and Consumer Products
- WLAN and Other PC Add-On Cards
- Camera Modules
Key features
- Input Voltage Range: 1.4 V to 5.5 V
- Stable Operation With 1-μF Ceramic Output Capacitor
- Foldback Overcurrent Protection
- Packages: SOT-23 (5), X2SON (4)
- Very Low Dropout: 125 mV at 300 mA (3.3 VOUT)
- Accuracy: 1% (Typical), 1.4% (Maximum)
- Low IQ: 34 μA
- Available in Fixed-Output Voltages: 1 V to 3.3 V
- High PSRR: 50 dB at 1 kHz
- Active Output Discharge
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV73318PDBVR#C882824TI · SOT-23-5 | TI | SOT-23-5 | 10,810 | ₹17.16 · 10,810 in stock | View |
 | TLV70218QDBVRQ1#C2863195TI · SOT-23-5 | TI | SOT-23-5 | 6,101 | ₹63.65 · 6,101 in stock | View |
 | TLV73318PDBVT#C2862035TI · SOT-23-5 | TI | SOT-23-5 | 165 | ₹45.26 · 165 in stock | View |
 | ME6211C18M5G-N#C236671MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | 64,410 | ₹8.75 · 64,410 in stock | View |
 | DS8561-18S5#C5795635DSTECH · SOT23-5 | DSTECH | SOT23-5 | 3,000 | ₹6.44 · 3,000 in stock | View |
