HXY MOSFETDatasheet (PDF)

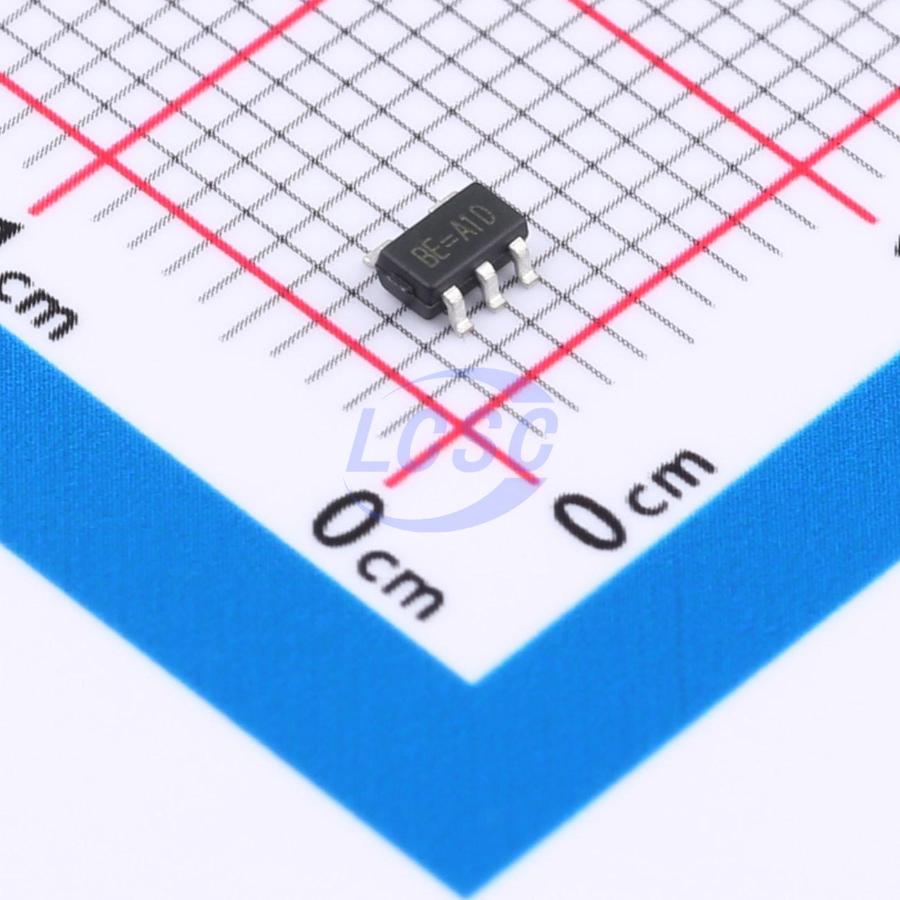

TLV75533PDBVR-HXY
3.3V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5LRoHSActive
High Speed Low Noise LDO
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- TLV75533PDBVR-HXY
- Store part #
- C42411799
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,605 in stock
#C42411799
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.21 | ₹111.05 |
| 50+ | ₹17.66 | ₹883.00 |
| 150+ | ₹15.70 | ₹2,355.00 |
| 500+ | ₹13.27 | ₹6,635.00 |
| 3,000+ | ₹12.18 | ₹36,540.00 |
| 6,000+ | ₹11.54 | ₹69,240.00 |
5 × ₹22.21
₹111.05
excl. GST
₹131.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV75533PDBVR-HXY
₹111.05 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Enable control
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
The TLV755xxPDBVR series are high-accuracy, low-noise CMOS LDO voltage regulators. This series offers low output noise, high ripple rejection ratio, low dropout voltage, and extremely fast startup time, making it ideal for today's cutting-edge mobile phones. It integrates a voltage reference, error amplifier, pass transistor, and phase compensator internally. The output voltage is set via current trimming and can be selected from 1.2V to 5.0V in 100mV steps. When the CE input pin is low, a built-in pull-down resistor pulls the output voltage low. These devices are also fully compatible with low-ESR ceramic capacitors, helping to reduce cost and improve output stability. With excellent transient response performance and high PSRR achieved across a wide frequency range, high output stability is maintained even during frequent load fluctuations. The CE function allows the regulator output to be disabled, significantly reducing power consumption.
Applications
- Battery-powered devices
- Communication equipment
- Mobile phones
- Portable game consoles
- Cameras, camcorders
- Voltage reference source
Key features
- Low dropout: 0.12V @ 100mA @ VOUT=3.3V (typical)
- Standby current: 0.1uA
- Low temperature coefficient
- High input voltage (up to 8V)
- Output voltage accuracy: ±2% tolerance
- SOT-23-5L package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP161ASN330T1G-HXY#C42411827HXY MOSFET · SOT-23-5L | HXY MOSFET | SOT-23-5L | 145 | ₹16.43 · 145 in stock | View |
 | HRT9013-33GB#C41381685HXY MOSFET · SOT-23-5L | HXY MOSFET | SOT-23-5L | 720 | ₹8.60 · 720 in stock | View |
