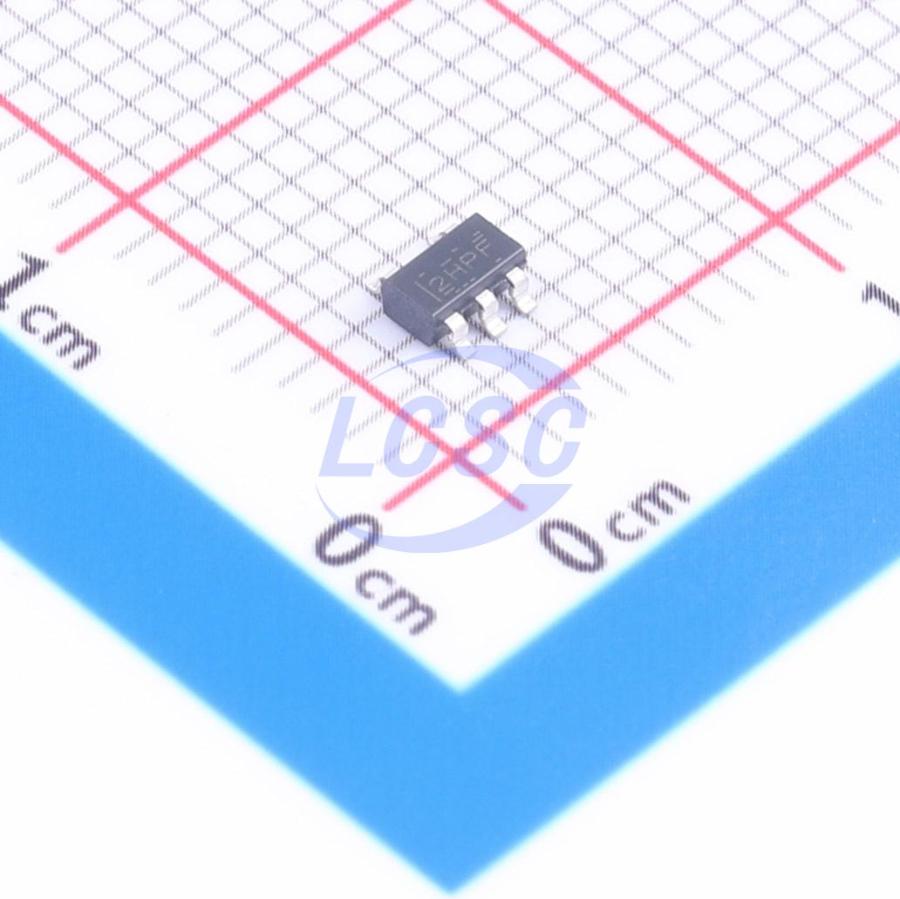

TLV840MADL30DBVRQ1

The TLV840-Q1 device is a voltage supervisor or reset IC that can operate at wide input voltage levels from 0.7 V to 6 V while maintaining very low quiescent current across the whole VDD and temperature range. TLV840-Q1 offers the best combination of low power consumption, high accuracy and low propagation delay (tp_HL = 30 µs typical). Reset output signal is asserted when the voltage at VDD drops below the negative voltage threshold (V_IT-). Reset signal is cleared when VDD rise above V_IT- plus hysteresis (V_HYS) and the reset time delay (tD) expires. Reset time delay can be programmed by connecting a capacitor between the CT pin and ground. For a minimum reset delay time the CT pin can be left floating. The TLV840-Q1, with its manual reset pin (MR), offers program flexibility by forcing the system into a hard reset when the pin is asserted. Additional features: Low power-on reset voltage (V_POR), built-in glitch immunity protection for VDD, built-in hysteresis, low open-drain output leakage current (I_IKg(OD)). TLV840-Q1 is a perfect voltage monitoring solution for automotive applications and battery-powered / low-power applications.

Applications

• Surround view system, front camera
• Automotive gateway
• Radar ECU
• Automotive head unit
• ADAS controller
• Emergency call
• Telematics control unit

Key features

• Qualified for automotive applications:
• AEC-Q100 qualified with the following results:
• Device temperature grade 1: -40°C to +125°C ambient operating temperature
• Device HBM ESD classification level 2
• Device CDM ESD classification level C7B
• Designed for high performance:
• Nano supply current: 120 nA (Typ)
• High accuracy: ±0.5% (Typ)
• Built-in hysteresis (V_HYS): 5% (Typ)
• Fixed threshold voltage (V_IT-): 0.8 V to 5.4 V
• Designed for a wide range of applications:
• Operating voltage range: 0.7 V to 6 V
• Fixed (V_IT-) voltage: 0.8 V to 5.4 V in 0.1 V steps
• Programmable reset time delay (tD)
• Min time delay: 40 µs (typ) without capacitor
• Active-low manual reset (MR)
• Multiple output topologies / Package type:
• Four output topologies (RESET / RESET):
• TLV840MADL-Q1: open-drain, active-low
• TLV840MAPL-Q1: push-pull, active-low
• TLV840MADH-Q1: open-drain, active-high
• TLV840MAPH-Q1: push-pull, active-high
• Package: SOT23-5 (DBV)
