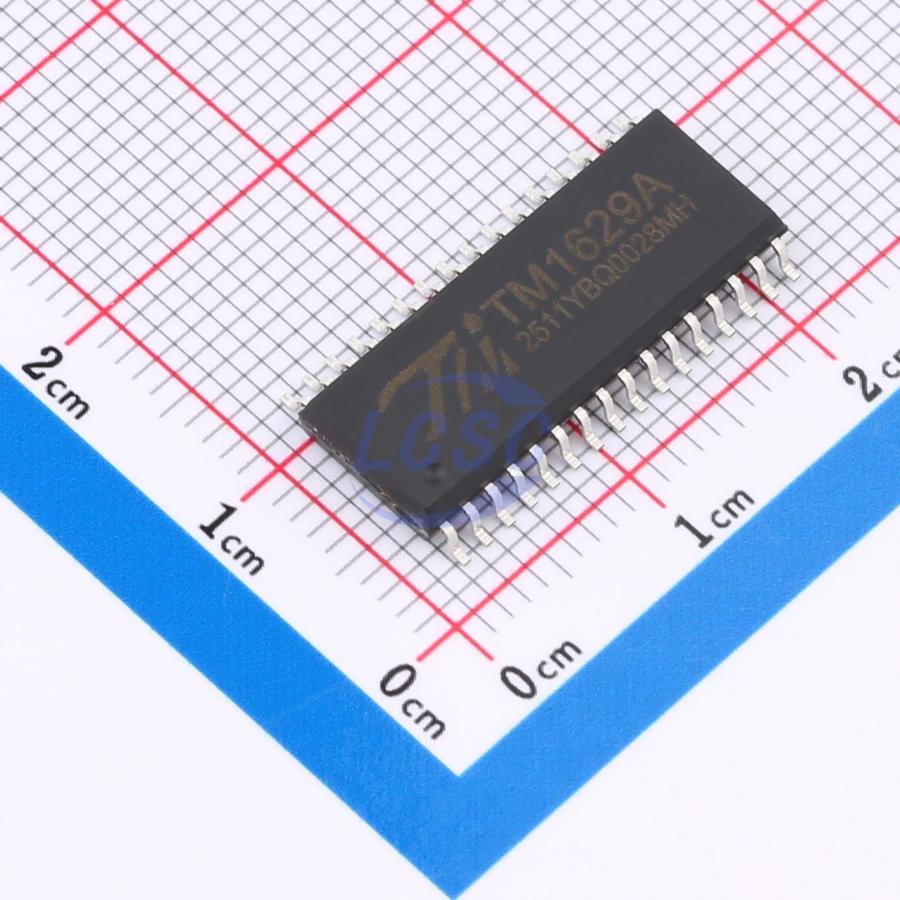

TM(Shenzhen Titan Micro Elec)

TM1629A

3V~6V 1MHz 20mA 80mA SOP-32 Display Drivers

SOP-32RoHSActive

Manufacturer: TM(Shenzhen Titan Micro Elec)
Manufacturer part #: TM1629A
Store part #: C2922492
Package / case: SOP-32
Category: Display Drivers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,276 in stock

#C2922492

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
11+	₹36.75	₹404.25
110+	₹30.14	₹3,315.40
330+	₹26.51	₹8,748.30
1,100+	₹22.00	₹24,200.00
5,500+	₹19.99	₹1,09,945.00
11,000+	₹18.79	₹2,06,690.00

Quantity (min 11, multiples of 11)

11 × ₹36.75

₹404.25

excl. GST

₹477.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 22 per tube

TM1629A

₹404.25 for 11 + GST

Specifications

Voltage - Supply: 3V~6V
Configuration: 16 Segment x 8 Digit
Operating Temperature: -40℃~+80℃
Clock Frequency: 1MHz
Pd - Power Dissipation: 400mW
Features: PWM dimming;BCD input latch function;Internal reset function;Built-in display RAM
Segment Drive Current: 20mA
Digit Drive Current: 80mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 22 / Tube
Sold per: Piece
Minimum order: 11 (multiples of 11)
Unit weight: 1.376 g

Overview

TM1629A is a dedicated LED (Light Emitting Diode display) driver control IC with keyboard scan interface, integrating MCU digital interface, data latch, LED driver, keyboard scan, and other circuits. This product offers reliable quality, excellent stability, and strong anti-interference capability. It is primarily applicable to home appliances (smart water heaters, microwave ovens, washing machines, air conditioners, induction cookers), set-top boxes, electronic scales, smart meters, and other digital tube or LED display devices.

Applications

Home appliances (smart water heaters, microwave ovens, washing machines, air conditioners, induction cookers)
Set-top boxes
Electronic scales
Smart meters and other nixie tube or LED display devices

Key features

CMOS process
Display mode: 16-segment × 8-digit
Brightness adjustment circuit (8-level duty cycle control)
Serial interface (CLK, STB, DIO)
Oscillation method: built-in RC oscillation
Built-in power-on reset circuit
Built-in data latch circuit
Strong noise immunity
Built-in optimization circuit for LED reverse-bias leakage causing dim-glow issues
Package: SOP32
