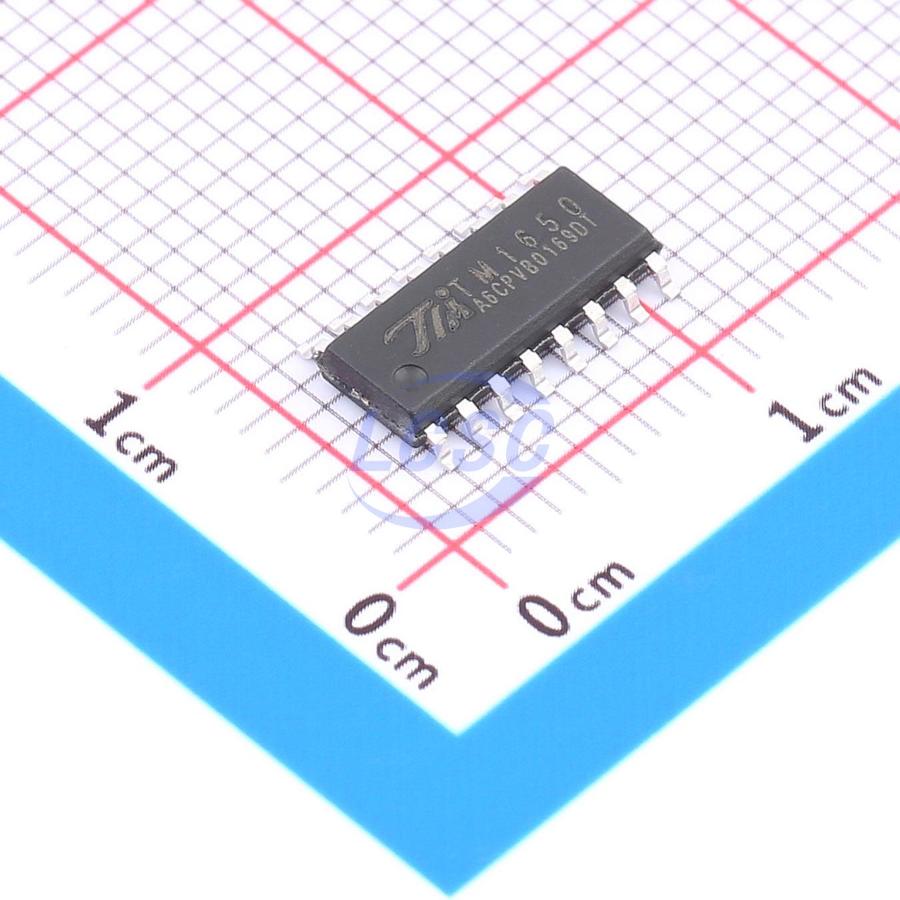

TM(Shenzhen Titan Micro Elec)

TM1650-TA1809D

3V~5.5V I²C 30mA 150mA SOP-16 Display Drivers

SOP-16RoHSActive

Manufacturer: TM(Shenzhen Titan Micro Elec)
Manufacturer part #: TM1650-TA1809D
Store part #: C53198565
Package / case: SOP-16
Category: Display Drivers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11,095 in stock

#C53198565

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹12.58	₹62.90
50+	₹10.08	₹504.00
150+	₹8.84	₹1,326.00
500+	₹7.90	₹3,950.00
2,500+	₹7.14	₹17,850.00
5,000+	₹6.77	₹33,850.00

Quantity (min 5, multiples of 5)

5 × ₹12.58

₹62.90

excl. GST

₹74.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

TM1650-TA1809D

₹62.90 for 5 + GST

Specifications

Voltage - Supply: 3V~5.5V
Configuration: 8 Segment x 4 Digit;7 Segment × 4 Digit
Operating Temperature: -40℃~+85℃
Interface: I²C
Features: BCD input latch function;Internal reset function
Quiescent Current (Iq): 300uA
Segment Drive Current: 30mA
Digit Drive Current: 150mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.536 g

Overview

TM1650 is a dedicated LED driver control IC integrating an MCU digital interface, data latch, LED driver, and keyboard scanning circuit. The chip supports two display modes (8-segment × 4-digit and 7-segment × 4-digit), individual key (7 × 4-digit, 28 total) and combination key (4 keys) scanning, and 8-level brightness adjustment. It features a high-speed 2-wire serial interface (CLK, DAT), with built-in RC oscillator, power-on reset circuit, and data latch circuit. Operating voltage range is 3~5.5V, with strong noise immunity, suitable for applications requiring 24-hour continuous operation. Package options include SOP16-150, DIP16, TSSOP16-150, TSSOP16-173, and QFN16.
