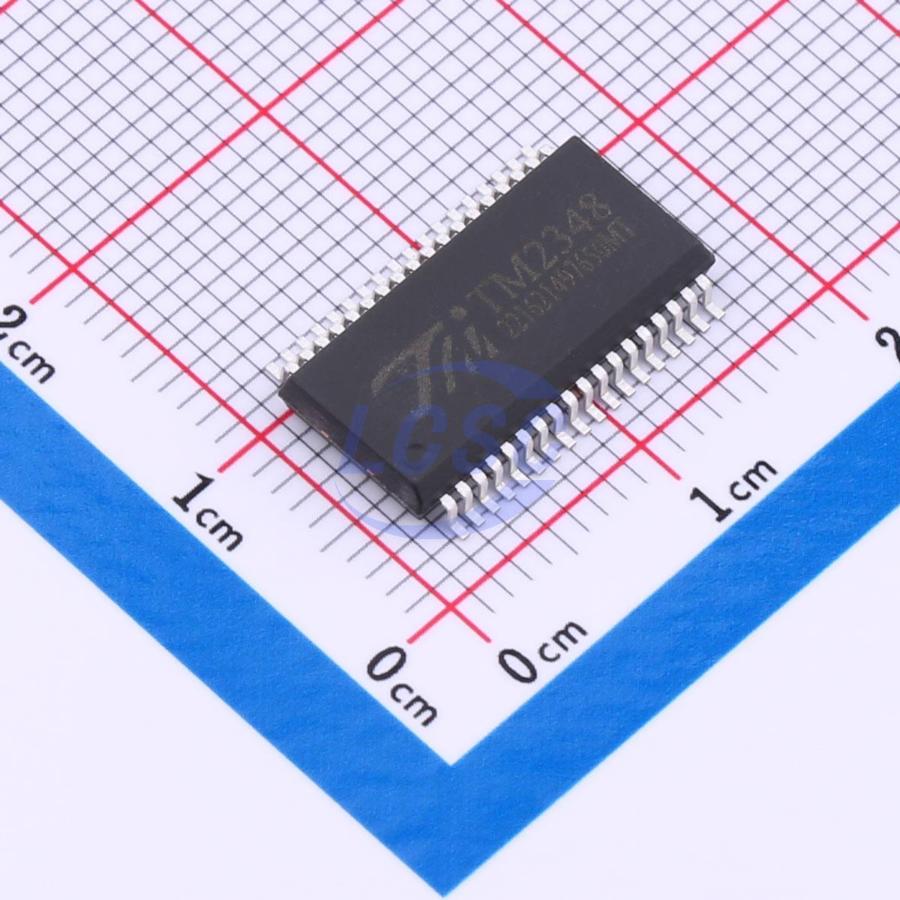

TM(Shenzhen Titan Micro Elec)

TM2348

Processor I2C SSOP-36 Audio Special Purpose

SSOP-36RoHSActive

4.1-channel audio processor with subwoofer

Manufacturer: TM(Shenzhen Titan Micro Elec)
Manufacturer part #: TM2348
Store part #: C5174533
Package / case: SSOP-36
Category: Audio Special Purpose
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,523 in stock

#C5174533

Stock & price checked 47 h ago

Quantity	Unit price	Pack price
1+	₹101.32	₹101.32
10+	₹79.99	₹799.90
30+	₹69.52	₹2,085.60
90+	₹58.86	₹5,297.40
510+	₹52.51	₹26,780.10
990+	₹49.23	₹48,737.70

Quantity (min 1)

1 × ₹101.32

₹101.32

excl. GST

₹119.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 30 per tube

TM2348

₹101.32 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Type: Processor
Operating Temperature: -40℃~+85℃
Features: On-chip digital gain;Multi-channel audio
Interface: I2C
Voltage - Supply: 5V~10V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tube-packed
Standard pack: 30 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 1.1 g

Overview

TM2348 is a 4.1-channel audio processor designed specifically for automotive audio systems. All functions are controlled via the I2C interface. Like most audio processors, it features 4 stereo source inputs with adjustable gain, master volume and adaptive loudness, as well as treble and bass tone controls. The TM2348 provides independent input source selection and output volume adjustment. Its special mix amplifier makes it easy to integrate navigation system or mobile phone audio into the car audio system.

Key features

I2C interface control
Stereo input with 4 selectable input gains (including 1 quasi-differential input)
2-channel volume control: +15 to -79dB, 1dB step
1 subwoofer output: +15 to -79dB, 1dB step adjustable subwoofer crossover frequency
Tone control (bass and treble): -15 to +15dB, 1dB step; input gain control: 0 to +15dB, 1dB step
Loudness: 0 to -15dB, 1dB step
4 independent speaker outputs: +15 to -79dB, 1dB step, independent programmable mix input, front speaker mix ratio 50%
Low distortion and low noise
SSOP36 package
