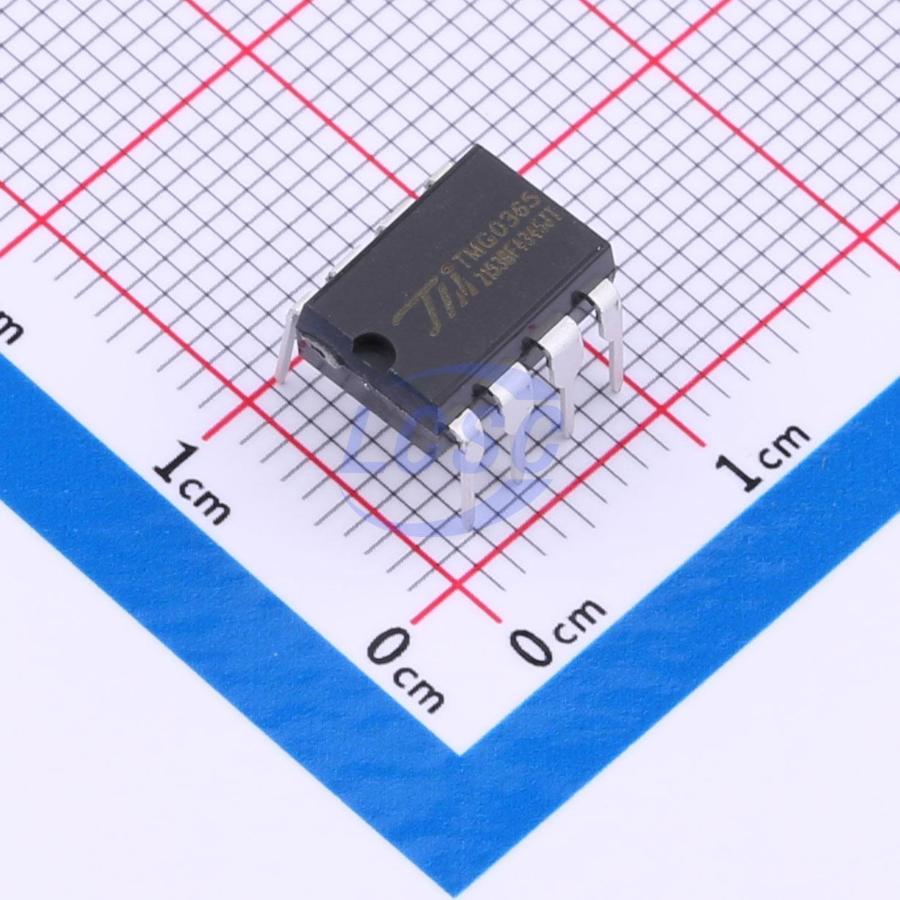

TM(Shenzhen Titan Micro Elec)

TMG0365

Converter Offline 63kHz~71kHz DIP-8

DIP-8RoHSActive

Green low-power switching power supply controller

Manufacturer: TM(Shenzhen Titan Micro Elec)
Manufacturer part #: TMG0365
Store part #: C5174552
Package / case: DIP-8
Category: AC DC Converters, Offline Switchers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,422 in stock

#C5174552

Stock & price checked 23 h ago

Quantity	Unit price	Pack price
1+	₹58.66	₹58.66
10+	₹45.13	₹451.30
50+	₹39.39	₹1,969.50
100+	₹32.20	₹3,220.00
500+	₹28.92	₹14,460.00
1,000+	₹26.87	₹26,870.00

Quantity (min 1)

1 × ₹58.66

₹58.66

excl. GST

₹69.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

TMG0365

₹58.66 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 63kHz~71kHz
Voltage - Supply: 10V~23V
Voltage - Breakdown: 650V
Topology: Flyback
Features: Leading edge blanking;Slope compensation;EMI optimization (spread spectrum);Light load efficient mode;Under-voltage lockout;Hiccup current limiting;Over Voltage Protection;Under Voltage Protection;Overtemperature protection (OTP);Short Circuit Protection
Duty Cycle(Max): 85%
Working Mode: PWM Modulation
Feedback System: Secondary-Side Feedback

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.84 g

Overview

The TMG0X65 is a highly integrated, high-performance current-mode offline switching power supply controller combining PWM and MOSFET in a single package. Suitable for chargers, power adapters, and various low-power switching power supplies. Housed in a DIP8 package, it delivers 0~36W output without a heatsink. Features a simple circuit topology and low cost. Comprehensive protection functions include OVP, UVP, OTP, overload, and short-circuit protection. Built-in fixed-frequency oscillator with frequency dithering reduces EMI. Enters pulse-skipping mode during standby for ultra-low standby power, compliant with Energy Star and other standby power consumption standards.

Applications

Charger
Power Adapter

Key features

Low startup and operating current
Built-in leading edge blanking (LEB)
Built-in peak current compensation and slope compensation
Built-in frequency dithering for reduced EMI
Cycle-by-cycle current limiting
Frequency reduction and pulse skipping mode under no-load or light-load conditions for reduced losses
Abnormal overcurrent protection
OVP, UVP, open-loop, overload, OTP, and output short-circuit protection
