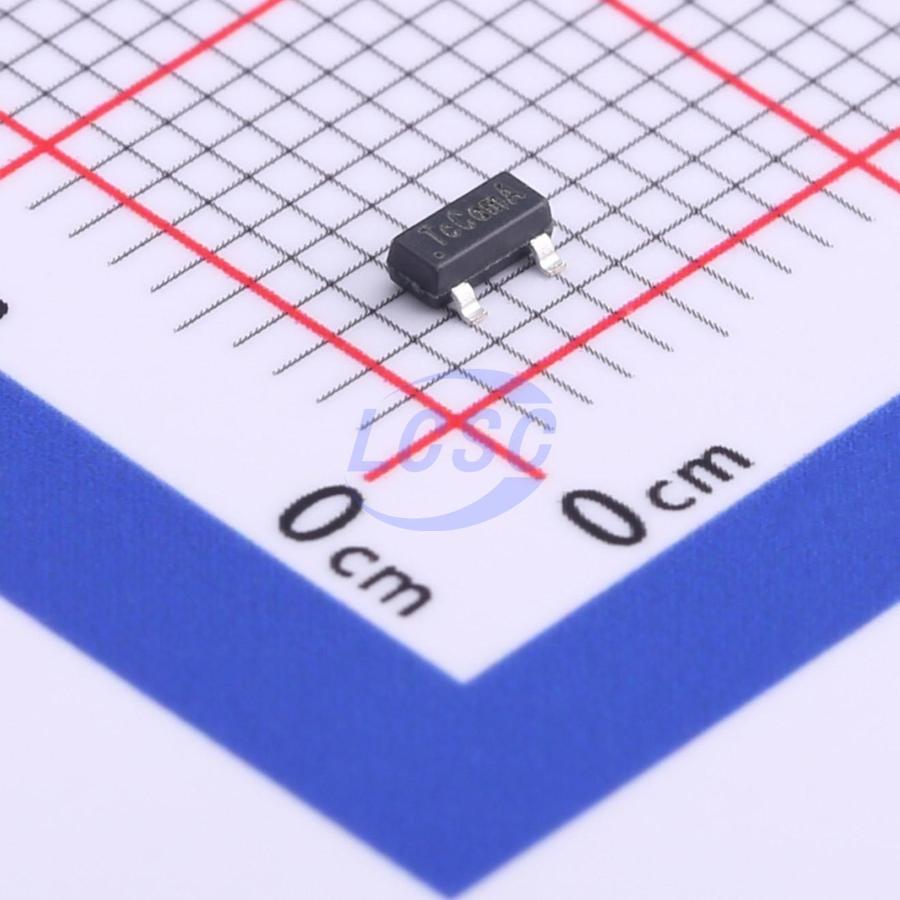

TMI6030C-18
1.8V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23ROHS CompliantActive
300mA, Low lo, High PSRR LDO Regulators in SOT23
- Manufacturer
- TMI
- Manufacturer part #
- TMI6030C-18
- Store part #
- C708887
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,839 in stock
#C708887
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹3.73 | ₹3.73 |
| 10+ | ₹2.90 | ₹29.00 |
| 30+ | ₹2.45 | ₹73.50 |
| 100+ | ₹2.17 | ₹217.00 |
| 500+ | ₹1.93 | ₹965.00 |
| 1,000+ | ₹1.81 | ₹1,810.00 |
1 × ₹3.73
₹3.73
excl. GST
₹4.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMI6030C-18
₹3.73 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 37uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The TMI6030C is a 300mA, low-dropout (LDO) linear regulator with fast transient response and high PSRR. It offers high output accuracy, low dropout voltage and low quiescent current as well as fast start-up time. This regulator is based on a CMOS process. The TMI6030C is designed to work with low-ESR ceramic capacitors, reducing the amount of the PCB area necessary for power applications. Only a 1μF ceramic output capacitor can make the device stable over the whole load range current (0mA to 300mA). Other key features include over-current protection and thermal shutdown. The TMI6030C is packaged in SOT23 packages.
Applications
- Cellular Phones
- Bluetooth portable radios and Accessories
- Battery-Powered Equipment
- Laptop, Palmtops, Notebook Computer
- PDAs
- Digital still Camera and Video Recorders
Key features
- 2.5V to 5.5V Input Voltage Range
- 320mV @300mA Dropout Voltage
- Excellent Transient Response
- Stable with 1μF Ceramic Output Capacitor
- 70dB PSRR at 1kHz
- Low 37μA Quiescent Current
- Output Accuracy: ±2%
- Fixed Output Voltage: 1.2V~3.3V
- Current Limit Protection
- Thermal Shutdown
- RoHS Compliant and 100% Lead (Fb)-Free
- Halogen-Free
