TMIDatasheet (PDF)

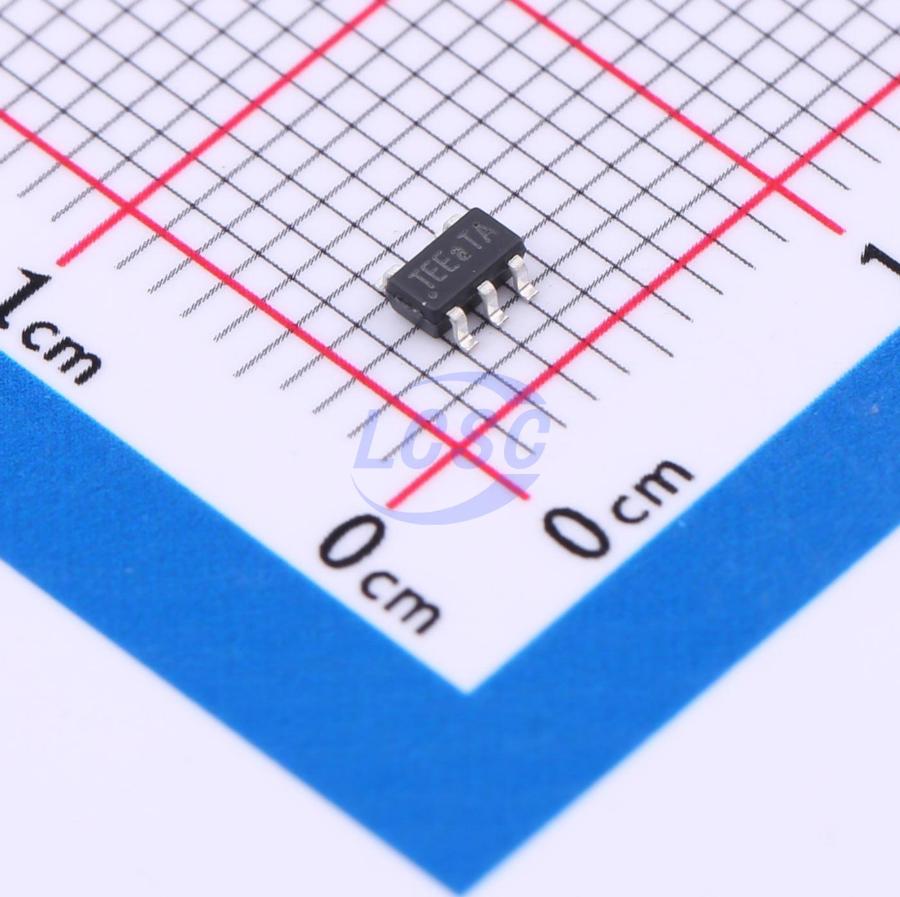

TMI6050-28
2.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
600mA, High PSRR, Fast Response LDO Regulators
- Manufacturer
- TMI
- Manufacturer part #
- TMI6050-28
- Store part #
- C1509109
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,900 in stock
#C1509109
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹5.29 | ₹5.29 |
| 10+ | ₹4.23 | ₹42.30 |
| 30+ | ₹3.65 | ₹109.50 |
| 100+ | ₹3.29 | ₹329.00 |
| 500+ | ₹2.99 | ₹1,495.00 |
| 1,000+ | ₹2.83 | ₹2,830.00 |
1 × ₹5.29
₹5.29
excl. GST
₹6.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMI6050-28
₹5.29 for 1 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 75uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 600mA
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.048 g
Overview
2.5V to 5.5V Input Voltage Range Up to 600mA output current (Typical) with V_IN - V_OUT ≤ 1.8V @ TA = 25℃ 600mV @ 600mA Dropout Voltage Excellent Transient Response Stable with 1μF Ceramic Output Capacitor 60dB PSRR at 1kHz Low 75μA Quiescent Current Low Shutdown Current: <1μA Output Accuracy: ±2% Adjustable Output Voltage: 0.8V ~ 5V Fixed Output Voltage :1.2V,1.5V,1.8V 2.5V,2.8V,3.0V,3.3V Current Limit Protection Thermal Shutdown Output Auto-Discharge in Shutdown RoHS Compliant and 100% Lead (Pb)- Free, Halogen-Free
Applications
- Cellular Phones, PDAs
- Bluetooth portable radios and Accessories
- Battery-Powered Equipment
- Laptop, Palmtops, Notebook Computer
- Digital still Camera and Video Recorders
Key features
- 2.5V to 5.5V Input Voltage Range
- Up to 600mA output current (Typical) with V_IN - V_OUT ≤ 1.8V @ TA = 25℃
- 600mV @ 600mA Dropout Voltage
- Excellent Transient Response
- Stable with 1μF Ceramic Output Capacitor
- 60dB PSRR at 1kHz
- Low 75μA Quiescent Current
- Low Shutdown Current: <1μA
- Output Accuracy: ±2%
- Adjustable Output Voltage: 0.8V ~ 5V
- Fixed Output Voltage :1.2V,1.5V,1.8V 2.5V,2.8V,3.0V,3.3V
- Current Limit Protection
- Thermal Shutdown
- Output Auto-Discharge in Shutdown
- RoHS Compliant and 100% Lead (Pb)- Free, Halogen-Free
