TMIDatasheet (PDF)

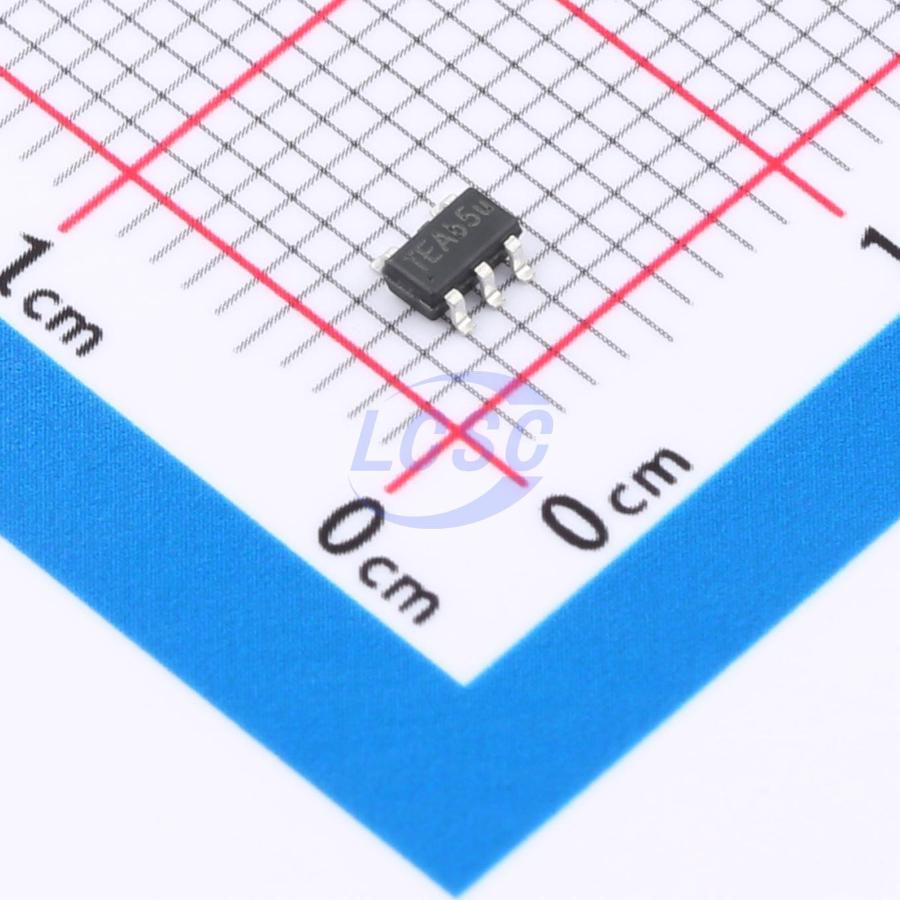

TMI6050U
800mV~5V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
600mA, Fast Response LDO Regulators with Adjustable Output
- Manufacturer
- TMI
- Manufacturer part #
- TMI6050U
- Store part #
- C6579943
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,367 in stock
#C6579943
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹11.18 | ₹11.18 |
| 10+ | ₹8.88 | ₹88.80 |
| 30+ | ₹7.73 | ₹231.90 |
| 100+ | ₹6.87 | ₹687.00 |
| 500+ | ₹6.18 | ₹3,090.00 |
| 1,000+ | ₹5.83 | ₹5,830.00 |
1 × ₹11.18
₹11.18
excl. GST
₹13.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMI6050U
₹11.18 for 1 + GST
Specifications
- Output Voltage
- 800mV~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 95uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 600mA
- Output Type
- Adjustable
- Features
- Enable control;Input under-voltage protection;Over Current Protection;Thermal shutdown;Output discharge;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.047 g
Overview
The TMI6050U is a 600mA, low-dropout (LDO) linear regulator with fast transient response. It offers high output accuracy, low dropout voltage and low quiescent current as well as smooth start-up curve. This regulator is based on a CMOS process. The TMI6050U is designed to work with low-ESR ceramic capacitors, reducing the amount of the PCB area necessary for power applications. Only a 1μF ceramic output capacitor can make the device stable over the whole load range current (0mA to 600mA). The output voltage of TMI6050U can be set by an external resistor divider. When the FB pin is connected to an external resistor divider, its output can be adjusted from 0.8V to 5V. Other key features include over-current protection and thermal shutdown. The TMI6050U is packaged in SOT23-5 packages.
Applications
- Cellular Phones
- Bluetooth portable radios and Accessories
- Battery-Powered Equipment
- Laptop, Palmtops, Notebook Computer
- PDAs
- Digital still Camera and Video Recorders
Key features
- 2.5V to 5.5V Input Voltage Range
- Up to 600mA output current (Typical) with VIN - VOUT ≤ 1.8V @ TA = 25°C
- 600mV @ 600mA Dropout Voltage
- Excellent Transient Response
- Stable with 1μF Ceramic Output Capacitor
- Low 95μA Quiescent Current
- Low Shutdown Current: < 1μμ
- Output Accuracy: ±2%
- Adjustable Output Voltage: 0.8V ~ 5V
- Under Voltage Lockout Protection (UVLO)
- Current Limit Protection
- Thermal Shutdown
- Output Auto-Discharge in Shutdown
- RoHS Compliant and 100% Lead (Fb)-Free Halogen-Free
