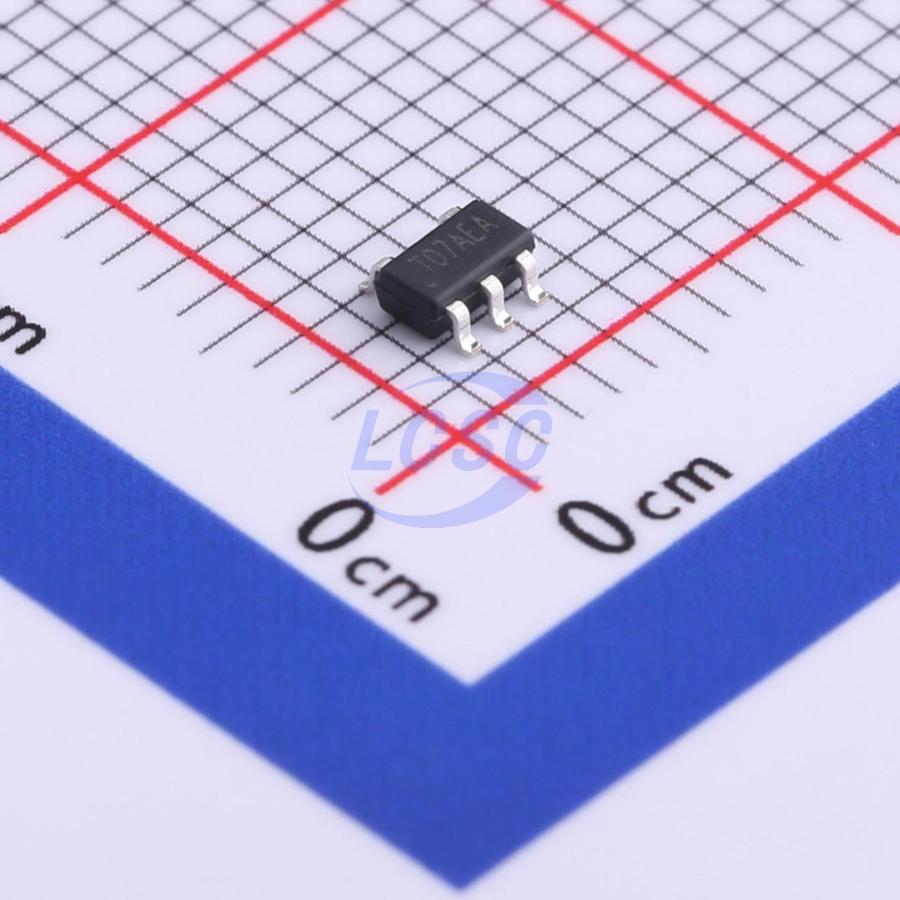

TMI6262AL
1 2.4A Active Low Load Switch SOT-23-5 Power Distribution Switches, Load Drivers RoHS
SOT-23-5ROHS CompliantActive
Precision Power Distribution Switch
- Manufacturer
- TMI
- Manufacturer part #
- TMI6262AL
- Store part #
- C840551
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,811 in stock
#C840551
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹12.77 | ₹12.77 |
| 10+ | ₹10.40 | ₹104.00 |
| 30+ | ₹9.21 | ₹276.30 |
| 100+ | ₹8.32 | ₹832.00 |
| 500+ | ₹7.61 | ₹3,805.00 |
| 1,000+ | ₹7.26 | ₹7,260.00 |
1 × ₹12.77
₹12.77
excl. GST
₹15.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMI6262AL
₹12.77 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Soft-start;Reverse voltage protection
- number of channels
- 1
- Maximum Continuous Current
- 2.4A
- Control Input Logic
- Active Low
- RDS(on)
- 60mΩ
- Operating Voltage
- 2.5V~5.5V
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.023 g
Overview
The TMI6262AL is a cost-effective, low voltage, single PMOSFET load switch, optimized for self-powered and bus-powered Universal Serial Bus (USB) applications. This switch operates with inputs ranging from 2.5V to 5.5V, making it ideal for both 3V and 5V systems. The switch's low RDS(ON), 60mΩ, meets USB voltage drop requirements. A built-in P-channel MOSFET with true shutdown function to eliminate any reversed current flow across the switch when it is powered off. When the output voltage is higher than input voltage, the power switch is turned off by internal output reverse-voltage comparator. The TMI6262AL offers a programmable current limit threshold between 400mA to 2.4A via an external resistor.
Applications
- USB Bus/Self Powered Hubs
- Battery-Charger Circuits
- Personal Communication Devices
- Notebook Computers
Key features
- Integrated Typical 60mΩ Power MOSFET
- Adjustable Current Limit: 400mA to 2.4A
- Low Supply Current
- 30μA Typical at Switch On State
- 1μA Typical at Switch Off State
- Wide Input Voltage Range: 2.5V to 5.5V
- Fast Transient Response: 8μs
- 0.1ms Typical Rise Time
- Reverse Current Flow Blocking
- Thermal Shutdown Protection
- Hot Plug-In Application (Soft-Start)
- CB Test Certification by IEC62368-1:2014
- UL 2367 Certification - E528420
- SOT23-5 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TMI6263AL#C5259212TMI · SOT-23-5 | TMI | SOT-23-5 | On request | Price on request | Quote |
