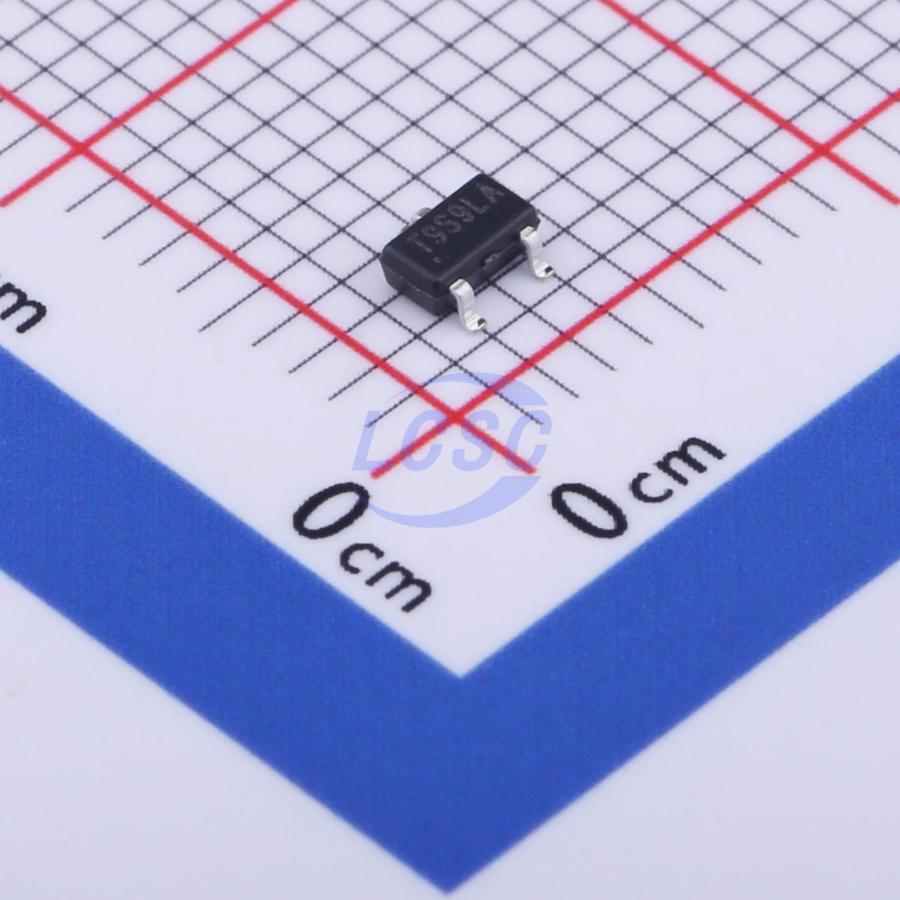

TMI6809-293
240ms Active Low 1V~5.5V 1 SOT-23-3 Supervisors RoHS
Low Iq Power Supply Voltage Monitor
- Manufacturer
- TMI
- Manufacturer part #
- TMI6809-293
- Store part #
- C842823
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28,321 in stock
#C842823
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹6.58 | ₹6.58 |
| 10+ | ₹5.25 | ₹52.50 |
| 30+ | ₹4.59 | ₹137.70 |
| 100+ | ₹4.09 | ₹409.00 |
| 500+ | ₹3.69 | ₹1,845.00 |
| 1,000+ | ₹3.49 | ₹3,490.00 |
1 × ₹6.58
₹6.58
excl. GST
₹7.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMI6809-293
₹6.58 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 5uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
The TMI6809 series device are low Iq supply voltage supervisory that monitors a single voltage used in microprocessor and digital control system. The TMI6809 provide and active low reset signal while the VCC supply voltage drops below the reset threshold voltage. When the VCC supply voltage rises above the threshold voltage plus hysteresis the reset output goes high after 240ms (typical) reset delay time. TMI6809 series are available suitable for monitoring 3V, 3.3V and 5V supply voltages. The low supply current of typical 5μA makes TMI6809 series devices ideal for using in portable, battery powered system applications, and they are available in 3-pin SOT23-3 package.
Applications
- Digital Set Top Boxes TV
- Portable Device Microprocessor Systems
Key features
- Operating Supply Voltage: 1.0V to 5.5V
- ±2% Reset Threshold Accuracy
- Low Quiescent Current: 5μA (typically)
- Push-Pull Active Low RESET output
- 240ms Power-On Reset Delay
- 3-Pin SOT23-3 Package
