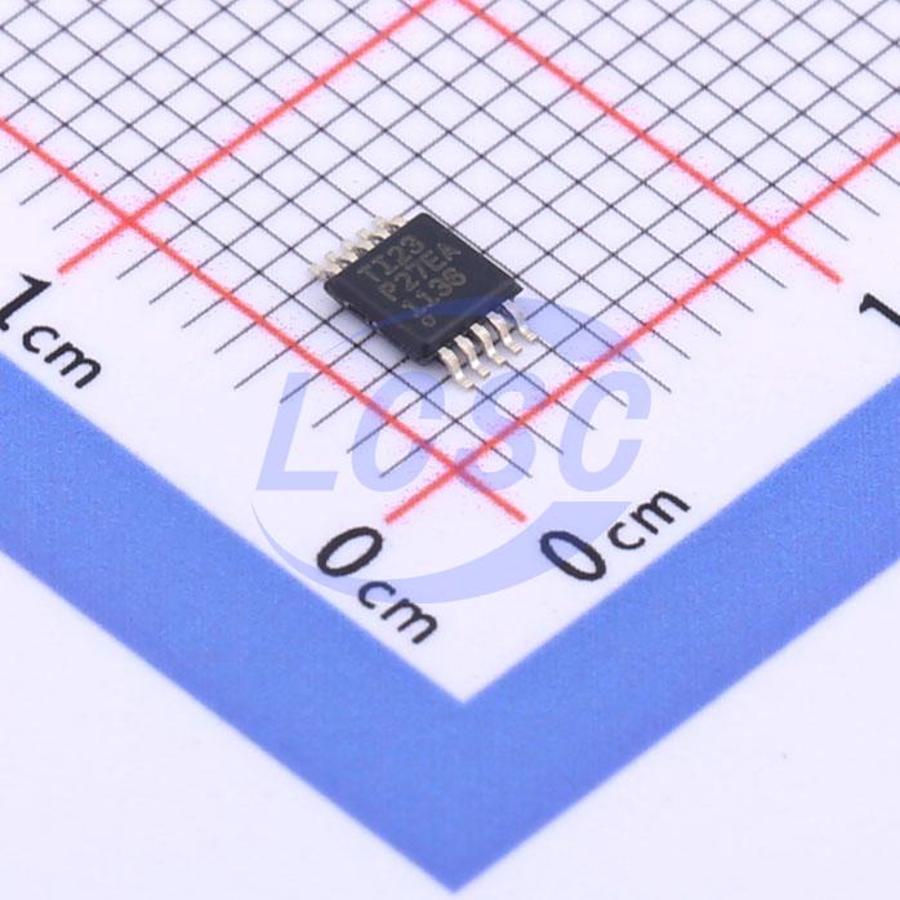

TMUX1136DGSR

The TMUX1136 is a CMOS single-pole double-throw (2:1) switch with two independently controlled channels. The wide supply voltage operating range of 1.08V to 5.5V supports a broad range of applications from medical devices to industrial systems. The device supports bidirectional analog and digital signals ranging from GND to VDD on the source (Sx) and drain (Dx) pins. All logic inputs feature 1.8V logic-compatible thresholds, which ensure TTL and CMOS logic compatibility when the device operates within the valid supply voltage range. A fault-protection logic circuit allows voltage to be applied to the control pins prior to the supply pins, protecting the device from potential damage. The TMUX1136 is part of a family of precision switches and multiplexer devices. These devices feature very low on- and off-state leakage currents and low charge injection, making them suitable for high-precision measurement applications. The low supply current of 3nA and compact package options make them ideal for portable application standards.

Applications

• Ultrasonic scanners
• Patient monitoring and diagnostics
• Blood glucose monitors
• Fiber optic networks
• Optical test equipment
• Remote radio units
• Power amplifier switches
• Data acquisition systems
• ATE test equipment
• Factory automation and industrial control
• Flow transmitters
• Programmable Logic Controllers (PLC)
• Analog input modules
• Sonar receivers
• Battery monitoring systems

Key features

• Wide supply voltage range: 1.08V to 5.5V
• Low leakage current: 3pA
• Low on-resistance: 2Ω
• Low charge injection: –6pC
• Operating temperature: -40°C to +125°C
• 1.8V logic compatible
• Fail-safe logic
• Rail-to-rail operation
• Bidirectional signal path
• Break-before-make switching
• ESD protection HBM: 2000V
