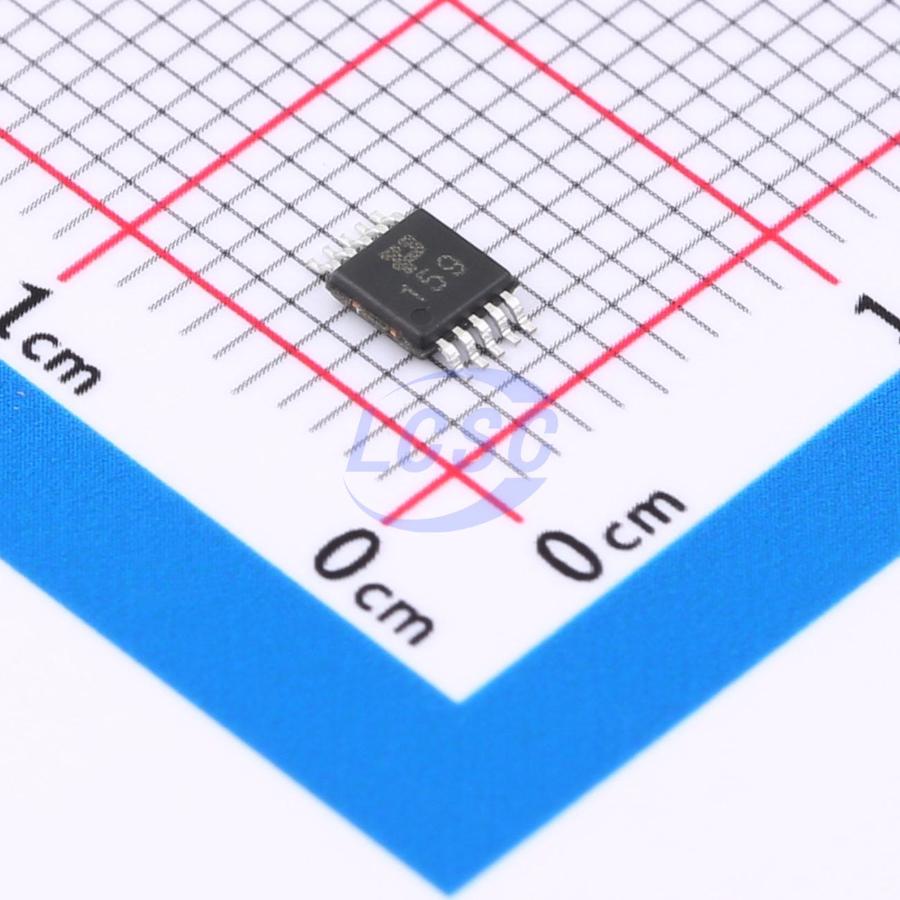

TECH PUBLIC

TPG23159M10

2 Circuit IC SWITCH 1.5Ω MSOP-10L

MSOP-10LRoHSActive

Dual SPDT Analog Switch, 2:1 Multiplexer/1:2 Demultiplexer

Manufacturer: TECH PUBLIC
Manufacturer part #: TPG23159M10
Store part #: C48543254
Package / case: MSOP-10L
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,600 in stock

#C48543254

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹44.21	₹221.05
50+	₹34.91	₹1,745.50
150+	₹30.92	₹4,638.00
500+	₹25.94	₹12,970.00
3,000+	₹23.72	₹71,160.00
6,000+	₹22.40	₹1,34,400.00

Quantity (min 5, multiples of 5)

5 × ₹44.21

₹221.05

excl. GST

₹260.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TPG23159M10

₹221.05 for 5 + GST

Specifications

Features: Bidirectional analog channel;Power-off isolation
Operating Temperature: -40℃~+85℃
Number of Channels: 2
Ron: 1.5Ω
Voltage - Supply: 1.5V~5.5V
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.112 g

Overview

This is a dual single-pole double-throw low on-resistance analog switch. The device operates from a single supply of 1.5V to 5.5V. It offers low on-state resistance and excellent on-state resistance matching, with a break-before-make feature to prevent signal distortion when switching from one channel to another. The device achieves true isolation. Even when COMx exceeds VCC, only minimal current flows back into the supply.

Applications

Mobile phones, tablets, and laptops
USB Type-C microphone/ground switching
Audio, video, UART, USB2.0 signal and power routing
Telecom signal switching
Sample-and-hold systems

Key features

Low on-resistance: Ron = 1.5Ω at COMx = 50Ω
1.8V logic-compatible control pins
High off-state isolation: -100dB @ 100KHz
COMx rail covers VCC, enabling true isolation even during power failure
Low inter-channel crosstalk: -97dB @ 100KHz
High bandwidth (-3dB @ 700MHz) for USB2.0 high-speed routing
Low quiescent current (< 2uA) and wide supply range (1.5V ~ 5.5V)
Compact package: MSOP-10L
