VISHAYDatasheet (PDF)

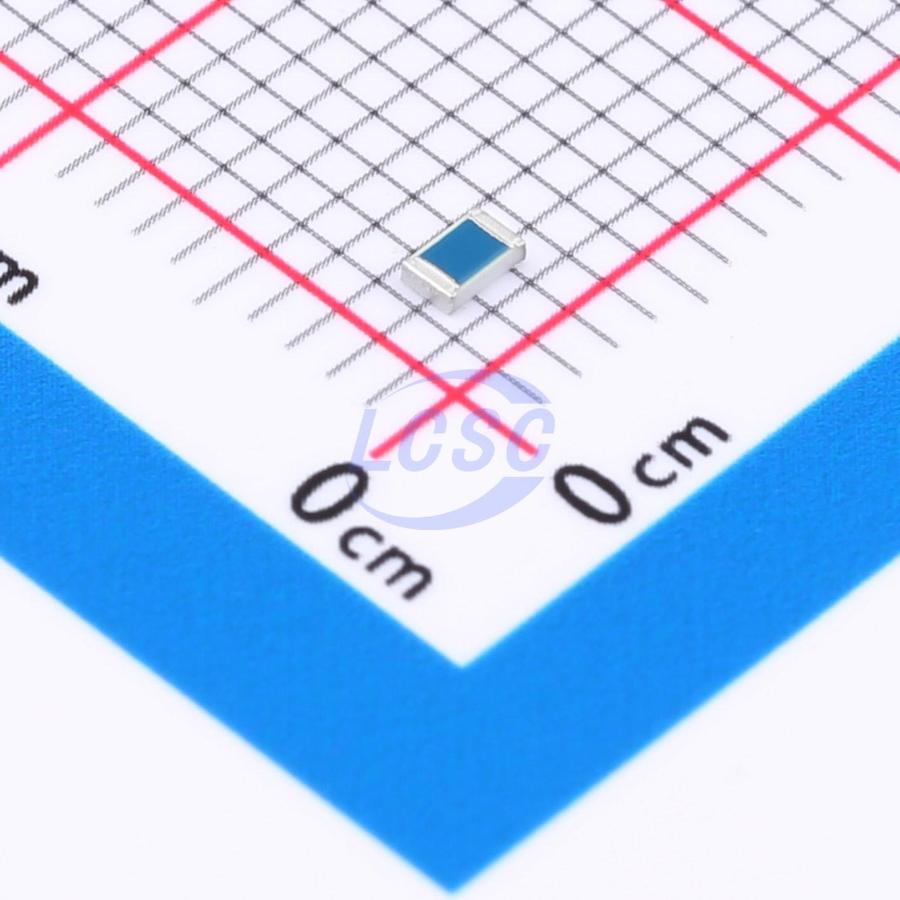

TNPU0805500RAZEN00
125mW 500Ω 150V Thin Film Resistor ±5ppm/℃ ±0.05% 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 500Ω ±0.05% 125mW 0805
- Manufacturer
- VISHAY
- Manufacturer part #
- TNPU0805500RAZEN00
- Store part #
- C2076395
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
31 in stock
#C2076395
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹540.94 | ₹540.94 |
| 10+ | ₹466.27 | ₹4,662.70 |
| 30+ | ₹421.97 | ₹12,659.10 |
| 100+ | ₹377.32 | ₹37,732.00 |
| 500+ | ₹356.71 | ₹1,78,355.00 |
| 1,000+ | ₹347.30 | ₹3,47,300.00 |
1 × ₹540.94
₹540.94
excl. GST
₹638.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
TNPU0805500RAZEN00
₹540.94 for 1 + GST
Specifications
- Power(Watts)
- 125mW
- Resistance
- 500Ω
- Voltage Rating
- 150V
- Operating Temperature
- -55℃~+125℃
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±5ppm/℃
- Tolerance
- ±0.05%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.47 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TNPU0805500RAWEN00#C1858447VISHAY · 0805 | VISHAY | 0805 | On request | Price on request | Quote | |
 | PLT0805Z5000AST5#C2073623VISHAY · 0805 | VISHAY | 0805 | On request | Price on request | Quote |
| P0805Y5000WNT#C4211486VISHAY · 0805 | VISHAY | 0805 | On request | Price on request | Quote | |
| P0805Y5000WBT#C4213169VISHAY · 0805 | VISHAY | 0805 | On request | Price on request | Quote | |
| P0805Y5000LBT#C4309624VISHAY · 0805 | VISHAY | 0805 | On request | Price on request | Quote | |
