TECH PUBLICDatasheet (PDF)

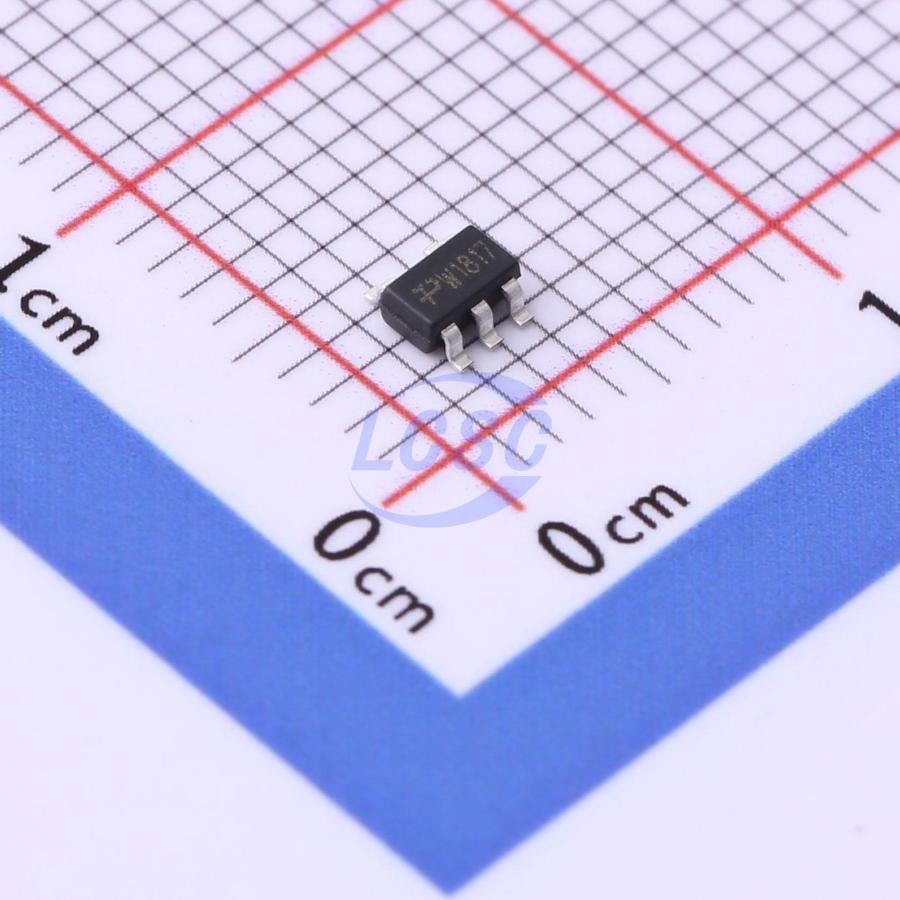

TP142C18S5
1.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
450mA 2uA High PSRR Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP142C18S5
- Store part #
- C3021124
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,318 in stock
#C3021124
Stock & price checked 15 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹21.06 | ₹21.06 |
| 10+ | ₹16.46 | ₹164.60 |
| 30+ | ₹14.47 | ₹434.10 |
| 100+ | ₹12.01 | ₹1,201.00 |
| 500+ | ₹10.91 | ₹5,455.00 |
| 1,000+ | ₹10.25 | ₹10,250.00 |
1 × ₹21.06
₹21.06
excl. GST
₹24.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP142C18S5
₹21.06 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 450mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The TP142C is a low-dropout (LDO) voltage regulator with enable function that operates from a 1.2V to 5.5V supply. It provides up to 450mA of output current in miniaturized packaging.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
Key features
- 2μA Ground Current at no Load
- ±2% Output Accuracy
- 450mA Output Current
- 10nA Disable Current (by option)
- Wide Operating Input Voltage Range: 1.2V to 5.5V
- Dropout Voltage: 0.18V at 300mA (Vout = 3.3V)
- Support Fixed Output Voltage 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- SOT23-3, SOT23-5, DFN-4(1x1) and DFN6(2x2) Packages Available
- The feature of 2μA low quiescent current and 0.5μA shutdown current are ideal for the battery application with long service life
- Current limit function, over temperature protection and output discharge function
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPRT9078-18GJ5#C3021122TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,985 | ₹17.03 · 1,985 in stock | View |
 | TPAP2125K-1.8TRG1#C2937007TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,810 | ₹13.89 · 1,810 in stock | View |
 | TPAP7365-18WG#C2937009TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,375 | ₹12.73 · 3,375 in stock | View |
 | TP162C18S5#C2937052TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 200 | ₹11.10 · 200 in stock | View |
 | TPNCP161ASN180T1G#C22435172TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,925 | ₹20.36 · 1,925 in stock | View |
