TECH PUBLICDatasheet (PDF)

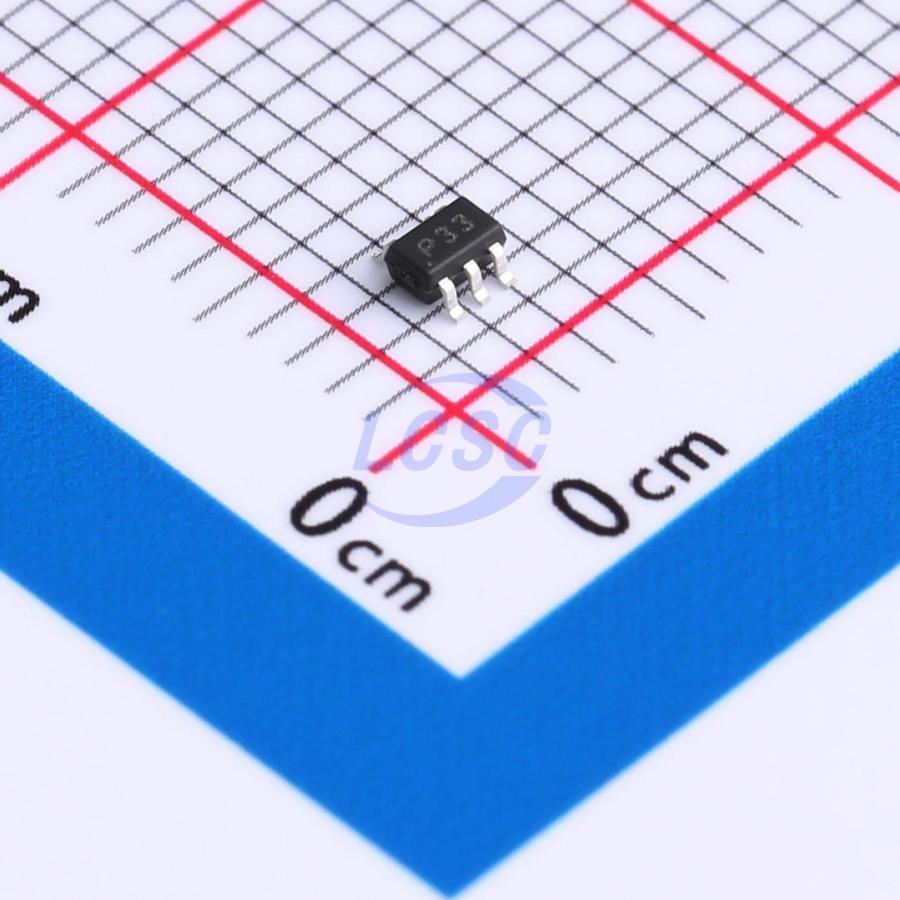

TP142C33C5
3.3V Positive Fixed SOT-353 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-353RoHSActive
450mA 2uA High PSRR Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP142C33C5
- Store part #
- C3021116
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,990 in stock
#C3021116
Stock & price checked 15 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.96 | ₹79.80 |
| 50+ | ₹14.06 | ₹703.00 |
| 150+ | ₹13.26 | ₹1,989.00 |
| 500+ | ₹12.25 | ₹6,125.00 |
| 3,000+ | ₹10.35 | ₹31,050.00 |
| 6,000+ | ₹10.07 | ₹60,420.00 |
5 × ₹15.96
₹79.80
excl. GST
₹94.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP142C33C5
₹79.80 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 450mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
The TP142C is a low-dropout (LDO) voltage regulator with enable function that operates from a 1.2V to 5.5V supply. It provides up to 450mA of output current in miniaturized packaging.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
Key features
- 2μA Ground Current at no Load
- ±2% Output Accuracy
- 450mA Output Current
- 10nA Disable Current (by option)
- Wide Operating Input Voltage Range: 1.2V to 5.5V
- Dropout Voltage: 0.18V at 300mA (Vout = 3.3V)
- Support Fixed Output Voltage 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- SOT23-3, SOT23-5, DFN-4(1x1) and DFN6(2x2) SOT353 Packages Available
- The feature of 2μA low quiescent current and 0.5μA shutdown current are ideal for the battery application with long service life
- The other features include current limit function, over temperature protection and output discharge function
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP142C33C5-1#C5246425TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 1,155 | ₹11.31 · 1,155 in stock | View |
 | TPS71733DCKR-TP#C5246426TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 885 | ₹30.07 · 885 in stock | View |
