TECH PUBLICDatasheet (PDF)

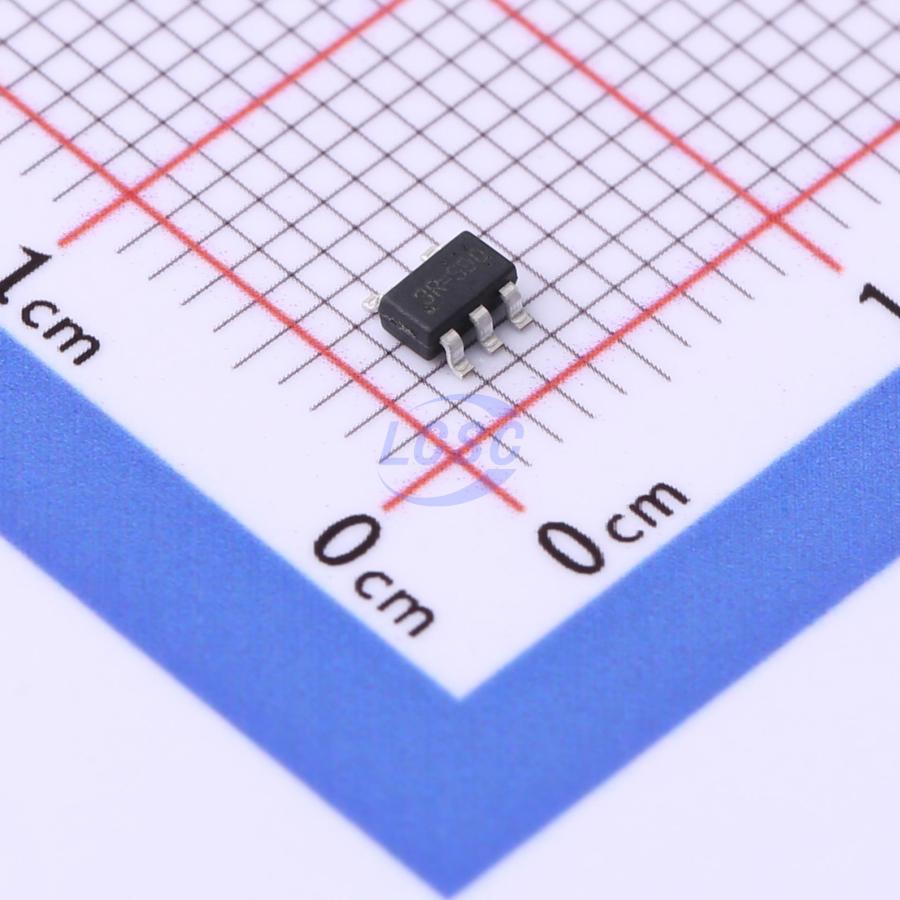

TP172CADJS5
800mV~5.5V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
Ultra-Low Dropout Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP172CADJS5
- Store part #
- C3021088
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,410 in stock
#C3021088
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.92 | ₹134.60 |
| 50+ | ₹21.46 | ₹1,073.00 |
| 150+ | ₹19.10 | ₹2,865.00 |
| 500+ | ₹16.18 | ₹8,090.00 |
| 3,000+ | ₹13.38 | ₹40,140.00 |
| 6,000+ | ₹12.59 | ₹75,540.00 |
5 × ₹26.92
₹134.60
excl. GST
₹158.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP172CADJS5
₹134.60 for 5 + GST
Specifications
- Output Voltage
- 800mV~5.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 600mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The TP172CADJS5 are a group of low-dropout( LDO) voltage regulators offering the benefits of wide input voltage range from 1.2V to 5.5Vi, low dropout voltage, low power consumption, and miniaturized packaging. Quiescent current of only 2μA makes these devices ideal for powering the battery-powered, always-on systems that require very little idle-state power dissipation to a longer service life.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
- Car Navigation Systems
Key features
- 2μA Ground Current at no Load
- ±2% Output Accuracy
- 600mA Output Current
- 10nA Disable Current (by option)
- Wide Operating Input Voltage Range: 1.2V to 5.5V
- Dropout Voltage: 0.32V at 600mA / Vout 3.3V
- Adjustable Output Voltage
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- SOT - 23 - 5 Packages Available
