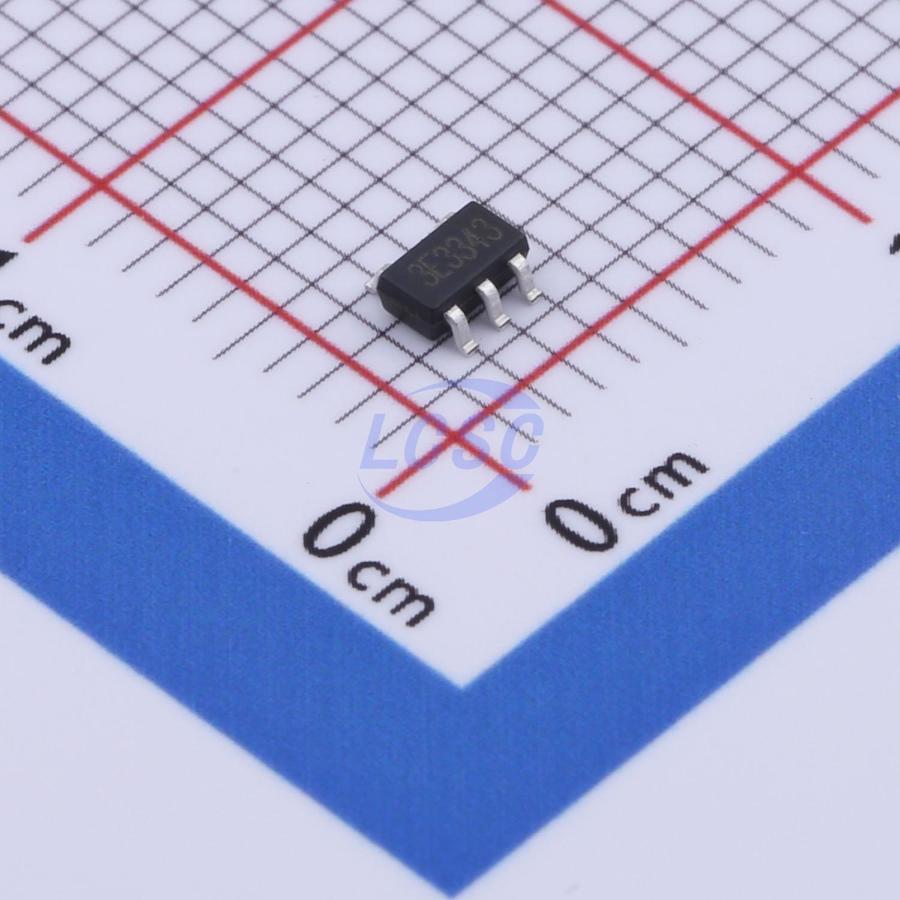

TP181C33S5-A
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
Low Current Consumption 300mA CMOS Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP181C33S5-A
- Store part #
- C2841398
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,470 in stock
#C2841398
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.34 | ₹131.70 |
| 50+ | ₹20.86 | ₹1,043.00 |
| 150+ | ₹18.52 | ₹2,778.00 |
| 500+ | ₹15.60 | ₹7,800.00 |
| 3,000+ | ₹13.53 | ₹40,590.00 |
| 6,000+ | ₹12.75 | ₹76,500.00 |
5 × ₹26.34
₹131.70
excl. GST
₹155.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP181C33S5-A
₹131.70 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 18V
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
TP181C series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage.
Applications
- Battery powered equipment
- Communication tools
- Mobile phones
- Portable games
Key features
- Dropout voltage: 0.16V at 100mA
- Large output current: 300mA
- Input voltage: up to 18V
- Output voltage range: 1.5V~5.0V
- Low power consumption: 0.8uA(TYP.)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP181C33S5-1#C5311013TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 235 | ₹24.11 · 235 in stock | View |
 | TP181C33S5#C2827537TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 11,980 | ₹16.55 · 11,980 in stock | View |
 | XC6204B332MR#C7419952TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 7,560 | ₹20.70 · 7,560 in stock | View |
 | SPX3819M5-L-3-3#C20617301TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 38,705 | ₹11.89 · 38,705 in stock | View |
 | TPNCP718ASN330T1G#C5370975TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,275 | ₹22.40 · 1,275 in stock | View |
