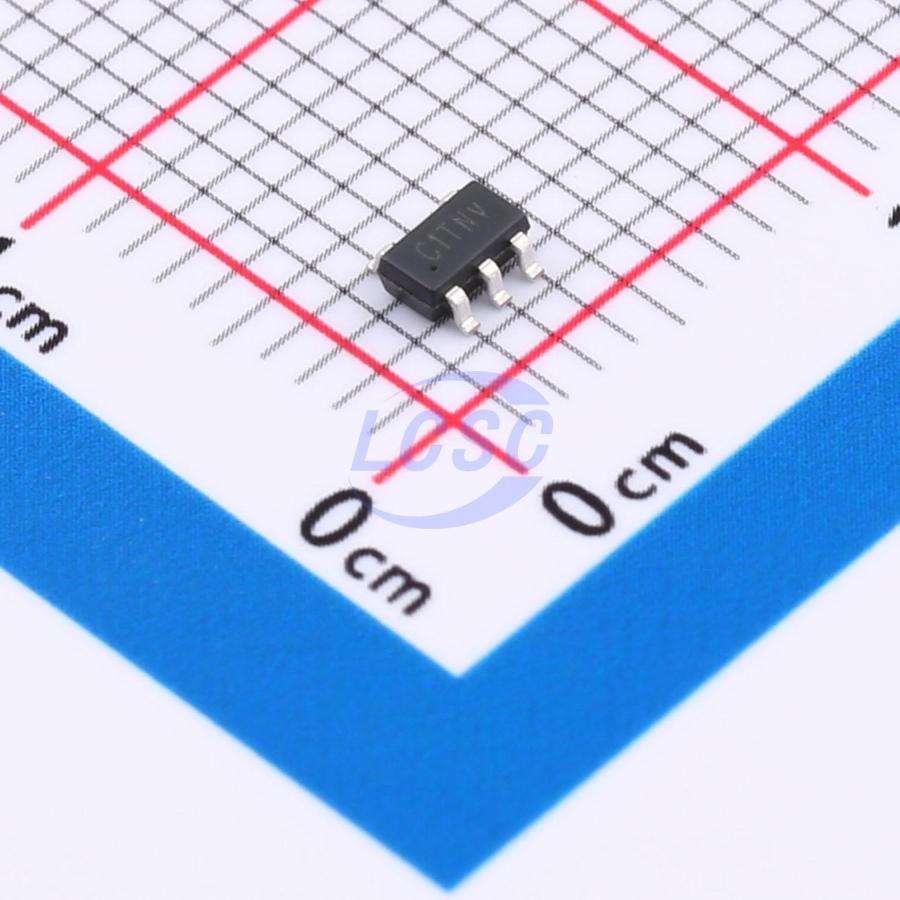

TP2011-TR
1 300nA 500uV Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Comparators
Ultra-Low Power, RRIO, Push-Pull Output Comparators
- Manufacturer
- 3PEAK
- Manufacturer part #
- TP2011-TR
- Store part #
- C5122732
- Package / case
- SOT-23-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,315 in stock
#C5122732
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.27 | ₹246.35 |
| 50+ | ₹38.09 | ₹1,904.50 |
| 150+ | ₹32.49 | ₹4,873.50 |
| 500+ | ₹28.40 | ₹14,200.00 |
| 3,000+ | ₹24.97 | ₹74,910.00 |
| 6,000+ | ₹23.25 | ₹1,39,500.00 |
5 × ₹49.27
₹246.35
excl. GST
₹290.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP2011-TR
₹246.35 for 5 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 4pA
- Output Mode
- TTL;CMOS
- Operating Temperature
- -40℃~+85℃
- Features
- Built-in hysteresis;Latch function;ESD protection
- Ib - Input Bias Current
- 6pA
- Input Offset Voltage Drift(Vos TC)
- 0.3uV/℃
- Output Type
- Push-pull
- Common Mode Rejection Ratio(CMRR)
- 82dB
- Propagation Delay(tpd)
- 13us
- Input Hysteresis Voltage (Vhys)
- 4mV
- Quiescent Current(Iq)
- 300nA
- Vos - Input Offset Voltage
- 500uV
- Maximum Power Supply Range (Vdd-Vss)
- 5.5V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Response Time (tr)
- 5ns
- Single Supply
- 1.6V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
The push-pull output comparators feature the lowest nano-power (250nA maximum) and fast 13μs response time capability, allowing operation from 1.6V to 5.5V. Input common-mode range to supply rails makes them an ideal choice for power-sensitive, low-voltage (2-cell) applications. The push-pull output supports rail-to-rail output swing and interfaces with TTL /CMOS logic, and are capable of driving heavy DC or capacitive loads. The internal input hysteresis eliminates output switching due to internal input noise voltage, reducing current draw. The output limits supply current surges and dynamic power consumption while switching. Beyond the rails input and rail-to-rail output characteristics allow the full power-supply voltage to be used for signal range. Micro-sized packages provide options for portable and space-restricted applications. The related comparators with an open-drain output. Used with a pull-up resistor, these devices can be used as level-shifters for any desired voltage up to 10V and in wired-OR logic.
Applications
- Battery Monitoring / Management
- Alarm and Monitoring Circuits
- Peak and Zero-crossing Detectors
- Threshold Detectors/Discriminators
- Sensing at Ground or Supply Line
- Logic Level Shifting or Translation
- Window Comparators
- Oscillators and RC Timers
- Mobile Communications and Notebooks
- Ultra-Low-Power Systems
Key features
- Ultra-Low Supply Current: 200 nA per channel
- Fast Response Time: 13 μs Propagation Delay, with 100 mV Overdrive
- Internal Hysteresis for Clean Switching
- Offset Voltage: ± 12.0 mV Maximum
- Input Bias Current: 6 pA Typical
- No Phase Reversal for Overdriven Inputs
- Low Supply Voltage: 1.6V to 5.5V
